Flanged Bends - Long Radius, AWWA C110, DI (in)

Written by Matt Milbury on . Posted in Ductile Iron Flanged Fitting Datasheets

Flanged Bends - Long Radius, AWWA C110, DI Datasheet

  • Flanged long radius bend fittings are not included in AWWA C110/A21.10
  • For flange dimensions see Flange - ANSI Class 125, C110, DI
  • AWWA C110/A21.10 - Ductile-Iron and Gray-Iron Fittings (3" to 48")
  • AWWA C104/A21.4 - Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water
  • ASME B16.1 - Gray Iron Pipe Flanges and Flanged Fittings: Classes 25, 125, and 250 (Flange surfaces shall be faced and drilled in accordance with ANSI Class 125)
  • All ductile iron flanged fittings shall be rated for water pressure of 250 PSI.
  • Flanged ductile iron fittings in 24 inch and smaller sizes may be rated for 350 psi with the use of special gaskets.

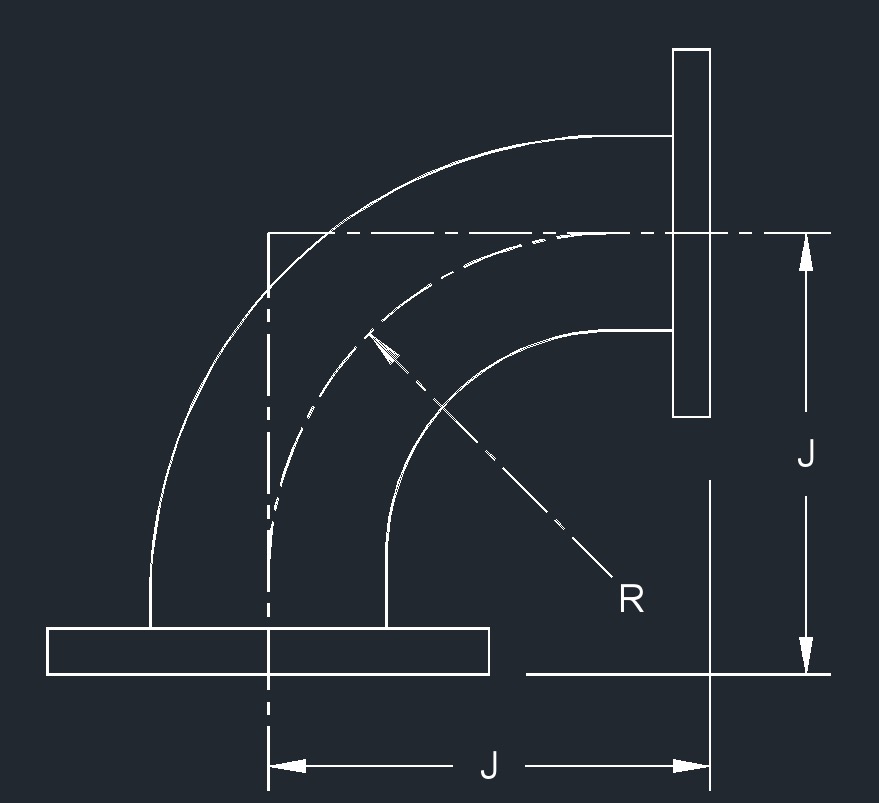

data 90 lr red flg di

data 90 flg di 1



 SizeRJApprox. Weight (lb)
3 6.25 7 3/4 30
4 7 9 45
6 9.5 11 1/2 85
8 14 14 140
10 16.5 16 1/2 255
12 17 19 310
14 19 21 1/2 475
16 21.5 24 630
18 - 26 1/2 840
20 - 29 1080
24 - 34 1640
