Valve - Check, Piston, ANSI Class 300, CS (in)

Written by Matt Milbury on . Posted in Check Valve Datasheets

Valve - Check, Piston, ANSI Class 300, CS (in)

  • Dimensions and tolerances in accordance with ANSI/ASME B16.5 for sizes 1/2" to 24".
  • Face to face dimensions per ANSI/ASME B16.10.
  • Gaskets dimensions and tolerances in accordance with ANSI/ASME B16.20.
  • Preparation of buttweld end in accordance with ANSI/ASME B16.25.
  • Valve dimensions and tolerances in accordance with ANSI/ASME B16.34.
  • Valve weight is approximate and vary between manufacture's. Contact manufacturer for specific information.
  • Pressure Temperature Rating:
    • Carbon Steel
    • ASTM A216 Grade WCB
    • 285 psi @ -20°F to 100°F

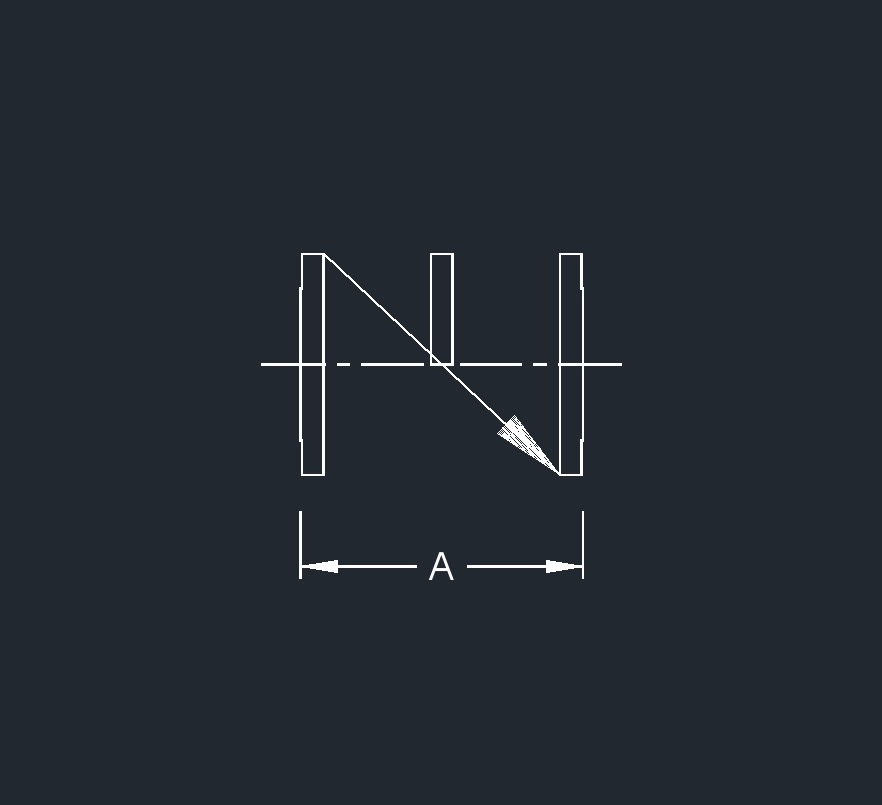

data flg piston check valvedata flg piston check valve 1

Valve Size

(in)

Face to Face Dimension (in)Approx. Weight (lb)
Raised Face

A

Buttweld

A

Ring Joint

A

Raised Face



Buttweld



Ring Joint



1/2 6 - - 7 - -
3/4 7 - - 10 - -
1 8 - - 14 - -
1 1/2 9 - - 28 - -
2 10 1/2 - - 38 - -
2 1/2 - - - - - -
3 - - - - - -
4 - - - - - -
6 - - - - - -
8 - - - - - -
10 - - - - - -
12 - - - - - -
14 - - - - - -
16 - - - - - -
18 - - - - - -
20 - - - - - -
24 - - - - - -
