Chain Pipe Support

on . Posted in Structural Engineering

Chain pipe support, also called pipe hanger or pipe support, is a device or mechanism used to secure and support pipes in various industrial and construction applications.  Pipes, especially those carrying liquids or gases, need to be properly supported to prevent sagging, stress, and potential damage to the pipes themselves and the structures they are connected to.

Chain Pipe Support Index

A chain pipe support specifically uses chains to support pipes.  It typically consists of a length of chain or multiple chains that are attached to the pipe and then anchored or suspended from a fixed point, such as a ceiling, wall, or structural frame.  The chain provides both vertical support to hold the pipe's weight and some flexibility to accommodate thermal expansion and contraction of the pipe due to temperature changes.

Chain pipe supports are often used in situations where there might be a need for more flexibility compared to rigid supports.  They allow the pipe to move slightly while still maintaining its position within acceptable limits.  This is important because pipes can expand and contract with temperature changes, and if they are not allowed some degree of movement, it can lead to stress, strain, and potential failure.

Different types of pipe supports are used depending on the specific requirements of the application, such as the type of pipe material, the fluid being transported, the temperature variations, and the structural considerations.  Some common types of pipe supports include clevis hangers, beam clamps, roller supports, and, of course, chain pipe supports.  Overall, chain pipe supports play a crucial role in maintaining the integrity and reliability of piping systems by ensuring proper alignment, minimizing stress, and preventing damage due to movement and weight.

Chain L Pipe Support

ISO Chain Pipe Support 11ISO Left Plane

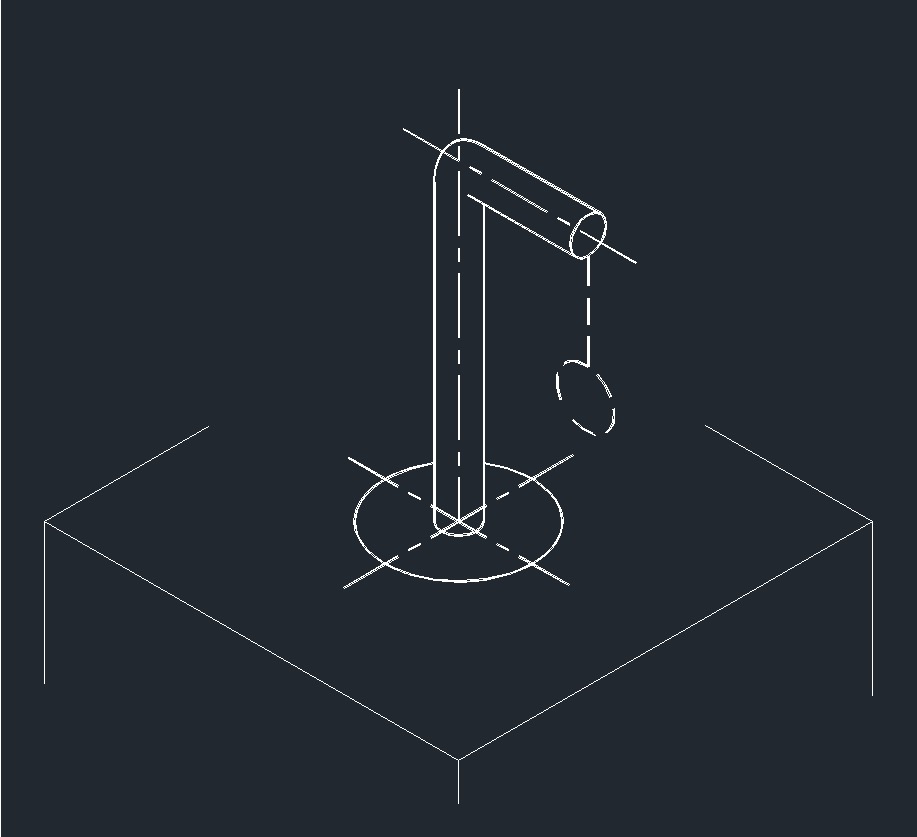

ISO Chain Pipe Support 12ISO Right Plane

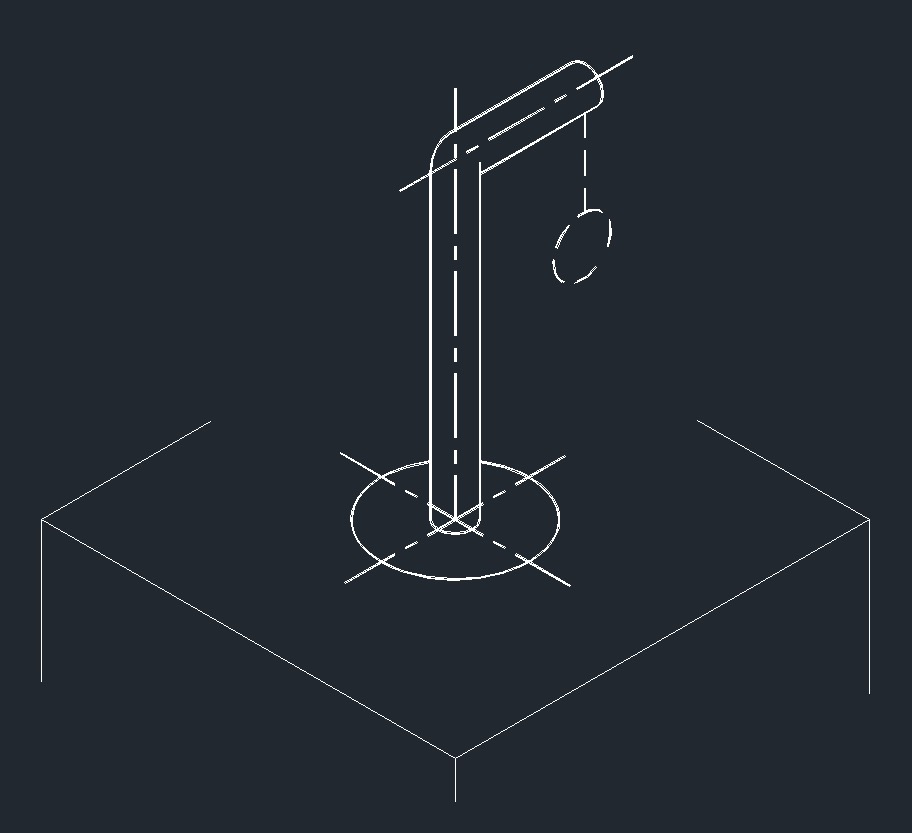

ISO Chain Pipe Support 13ISO Left Plane

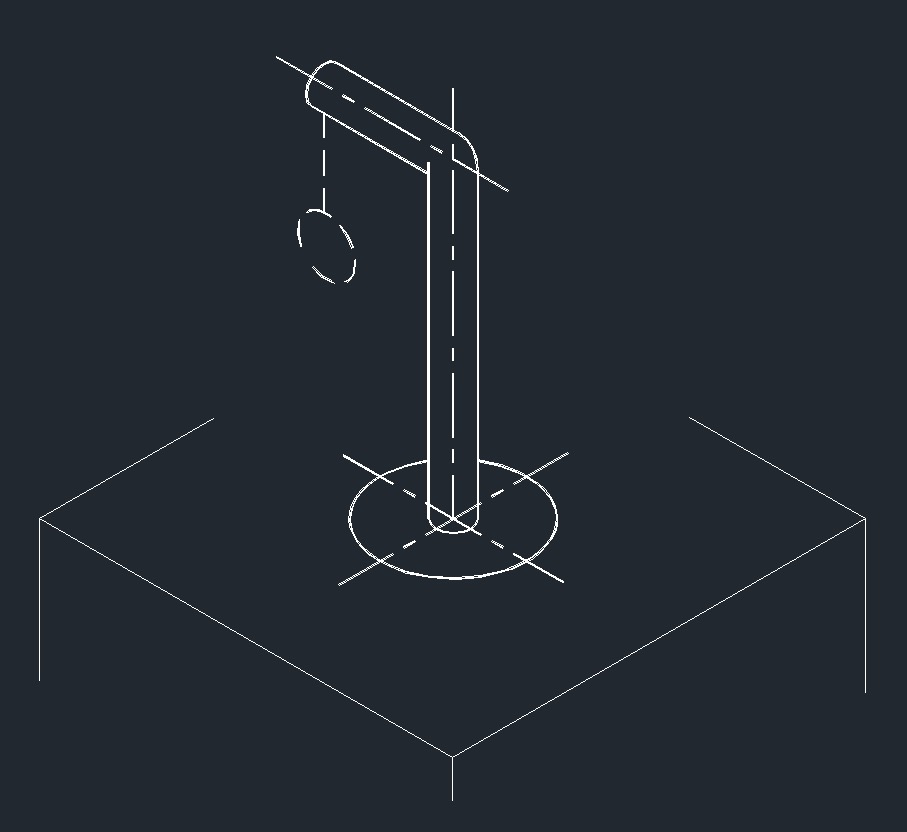

ISO Chain Pipe Support 14ISO Right Plane

















Chain T Pipe Support

ISO Chain Pipe Support 21ISO Left Plane

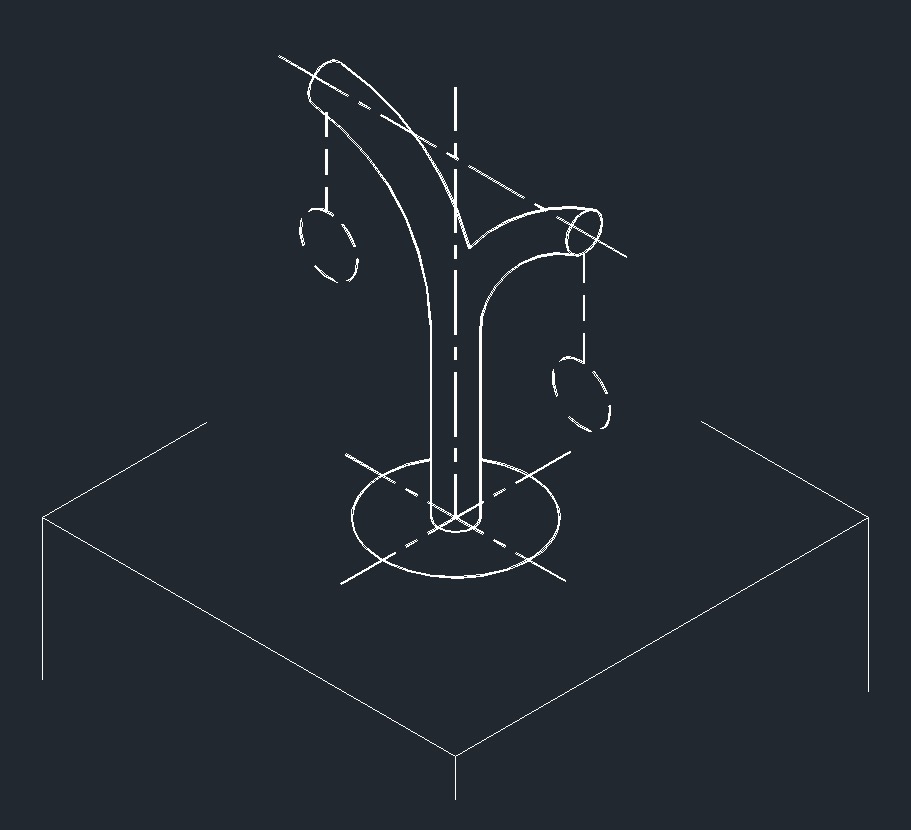

ISO Chain Pipe Support 22ISO Right Plane

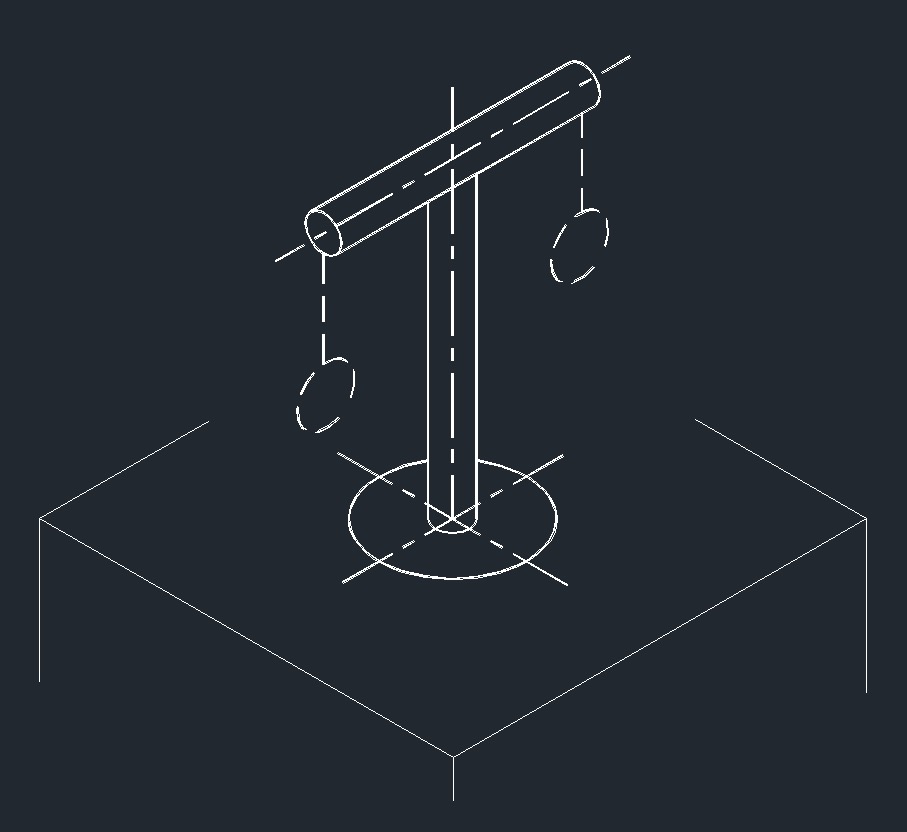

ISO Chain Pipe Support 23ISO Left Plane

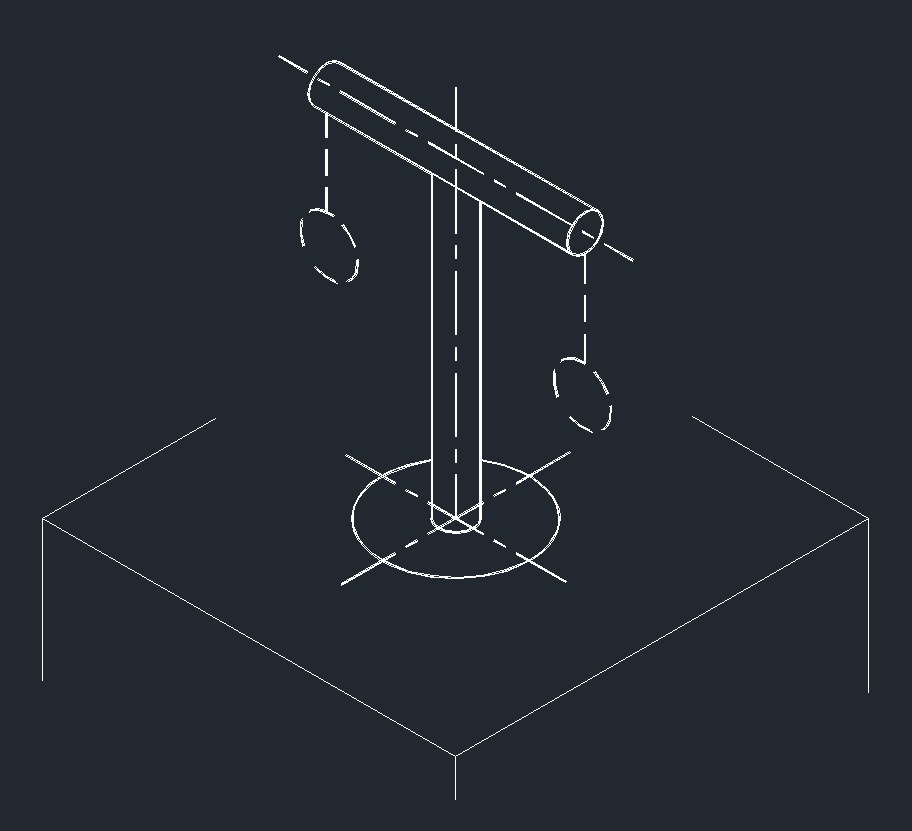

ISO Chain Pipe Support 24ISO Right Plane

















Chain J Pipe Support

ISO Chain Pipe Support 31ISO Left Plane

ISO Chain Pipe Support 32ISO Right Plane

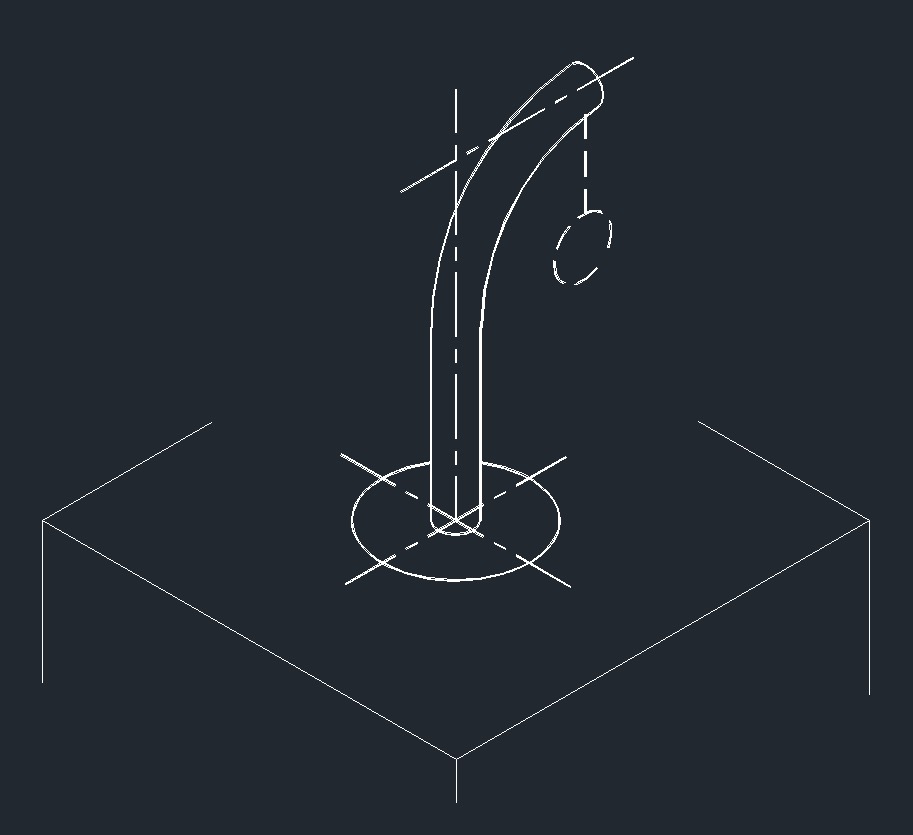

ISO Chain Pipe Support 33ISO Left Plane

ISO Chain Pipe Support 34ISO Right Plane
