Dynamic Blocks - Bleed Ring with RF WNF

Written by Matt Milbury on . Posted in Accessory Drawings

Dynamic Blocks - Bleed Ring with RF WNF
$4.99

This Drawing Package contains different views of Bleed Rings with raised face weldneck flanges.   This drawing package contains six dynamic blocks.  Each dynamic block contains 19 blocks.

pdfDynamic Block Bleed Ring Example40.7 KB20/08/2017

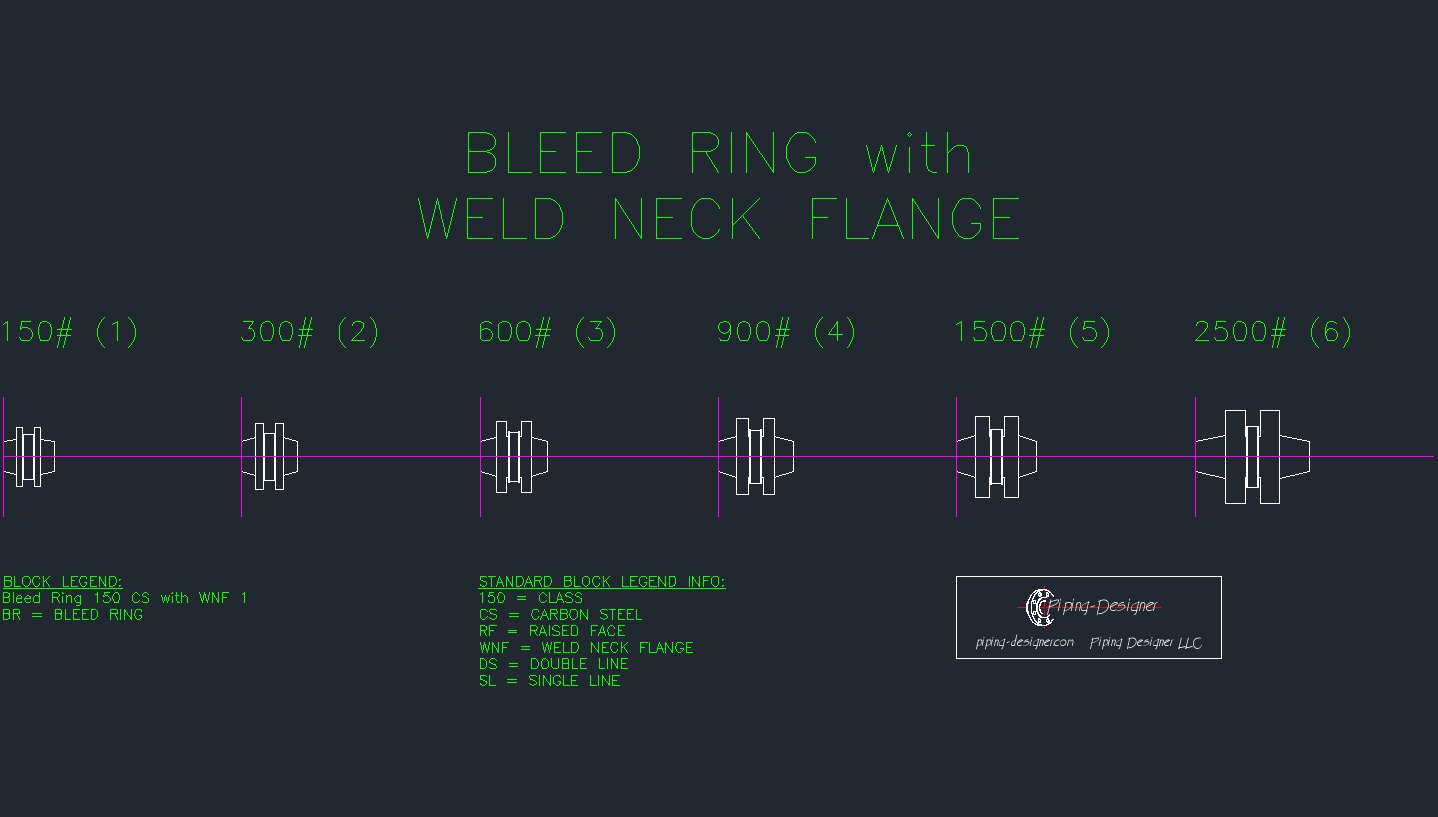

PD Bleed Ring 150 2500 CS with WNFBleed Ring with Flanges - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Number of Single LineNumber of Double LineTotal Number of Blocks
ANSI 150 2"-12" 2"-24" 19
ANSI 300 2"-12" 2"-24" 19
ANSI 600 2"-12" 2"-24" 19
 ANSI 900  2"-12"  2"-24" 19
 ANSI 1500  2"-12"  2"-24" 19
 ANSI 2500  2"-12" 2"-12" 14
    Total Blocks:   109

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!

Have questions about when to use these in your design?  Check out our articles or datasheets:
