Dynamic Blocks - 90 Short Radius Buttweld

Written by Matt Milbury. Posted in Fitting Drawings

Dynamic Blocks - 90 Short Radius Buttweld
$4.99

This Drawing Package contains different views of 90 degree short radius elbows.  This drawing package contains three dynamic blocks.  Each dynamic block contains 24 blocks, a mix of single line and double line.

pdfDynamic Block 90 Degree Short Radius Elbow Example37.71 KB

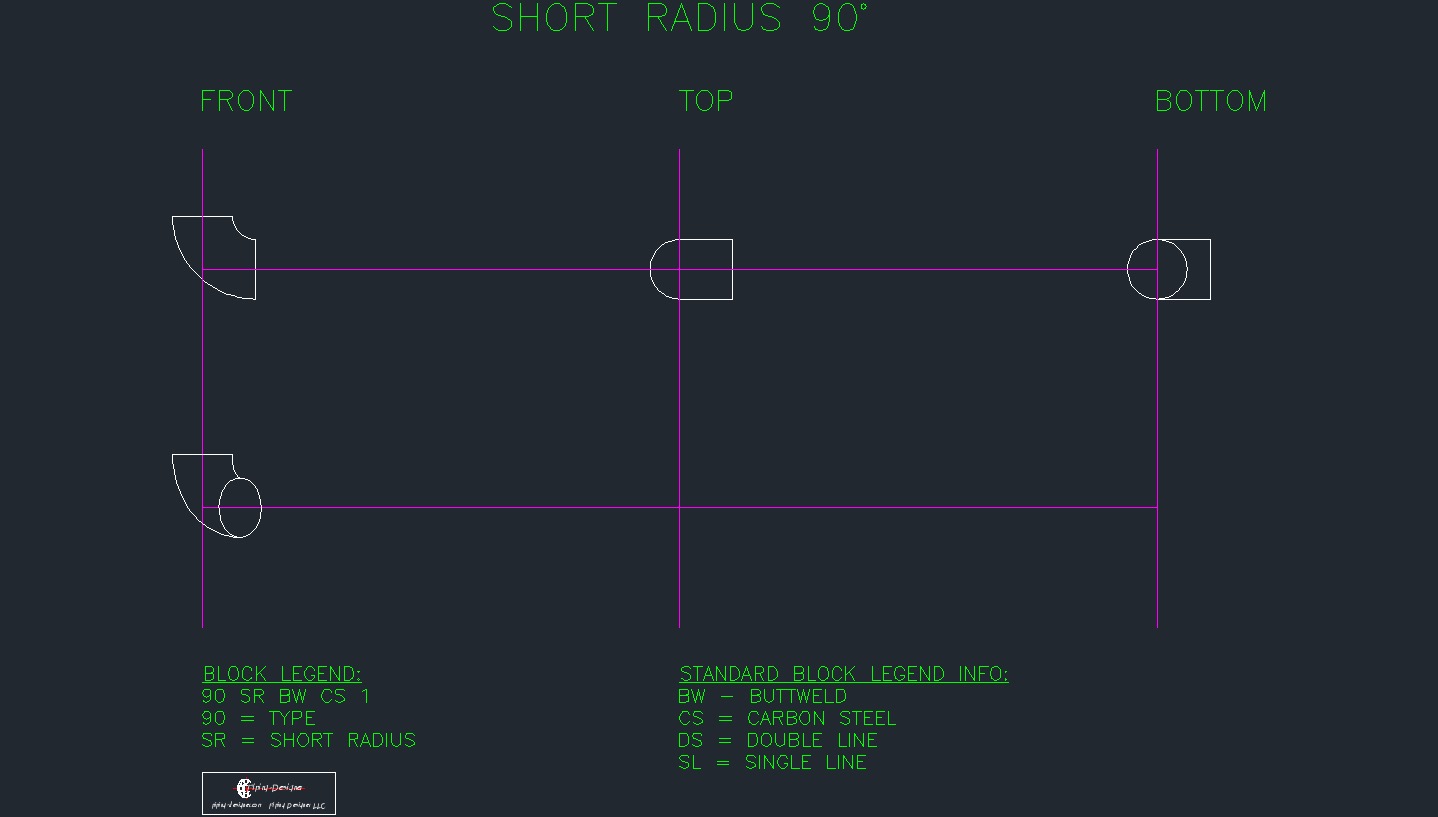

PD 90 SR BW CS90 Degree Buttweld Short Radius Elbow - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble Line
Profile 2"-22", 24" 2"-22", 24"
Top View 2"-22", 24" 2"-22", 24"
Bottom View 2"-22", 24" 2"-22", 24"




Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!

Have questions about when to use these in your design?  Check out our articles or datasheets:
