Isometric Fitting Drawing Package

Written by Matt Milbury. Posted in Isometric Drawings

Isometric Fitting Drawing Package
$7.99

This Isometric Package contains commonly used butt-weld pipe fittings. This drawing package contains 120 blocks!

pdfButt Weld Fitting Block Example103.64 KB

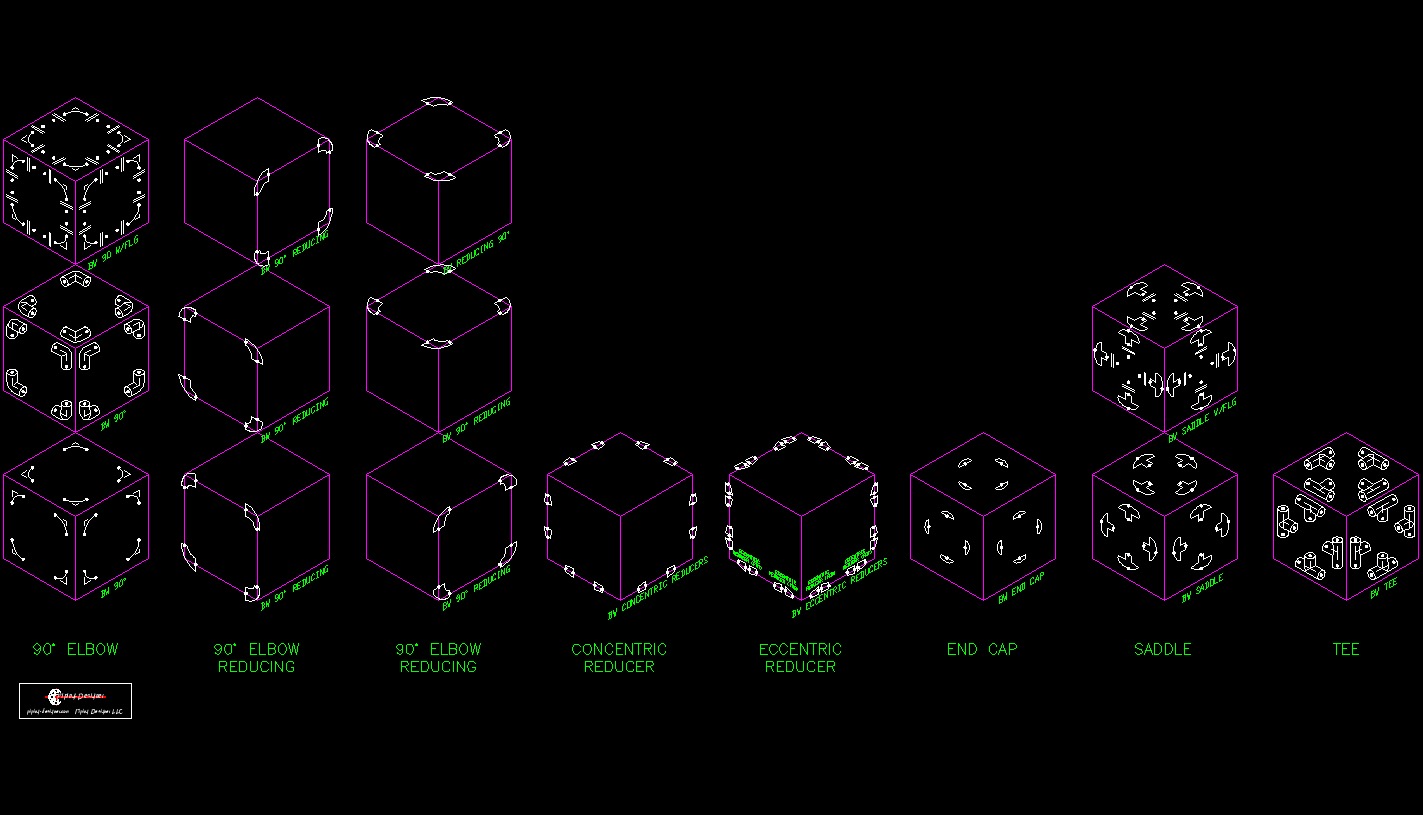

PD ISO Fitting ButtweldIsometric Example

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes:

  • Pipe Fittings Blocks:
    • 90 Degree Elbow
    • 90 Degree Reducing Elbow
    • Concentric Reducer
    • Eccentric Reducer
    • End Cap
    • Saddle
    • Tee
  • Drawing file will work  in the following formats:
    • AutoCAD 2013/ LT2013
    • AutoCAD 2010/ LT2010
    • AutoCAD 2004/ LT2004

View more information about Butt-weld Fittings or view Datasheets for Butt-weld Fittings
