Dynamic Blocks - Check Valve, Dual Plate Flange with WNF

Written by Matt Milbury. Posted in Valve Drawings

Dynamic Blocks - Check Valve, Dual Plate Flange with WNF
$19.99

This Drawing Package contains blocks for dual plate flange check valves at different ANSI Classes.  This drawing package contains 4 dynamic blocks with a mix of single line and double line.

pdfDynamic Block Wedge Gate Valve with Flanges Example27.66 KB

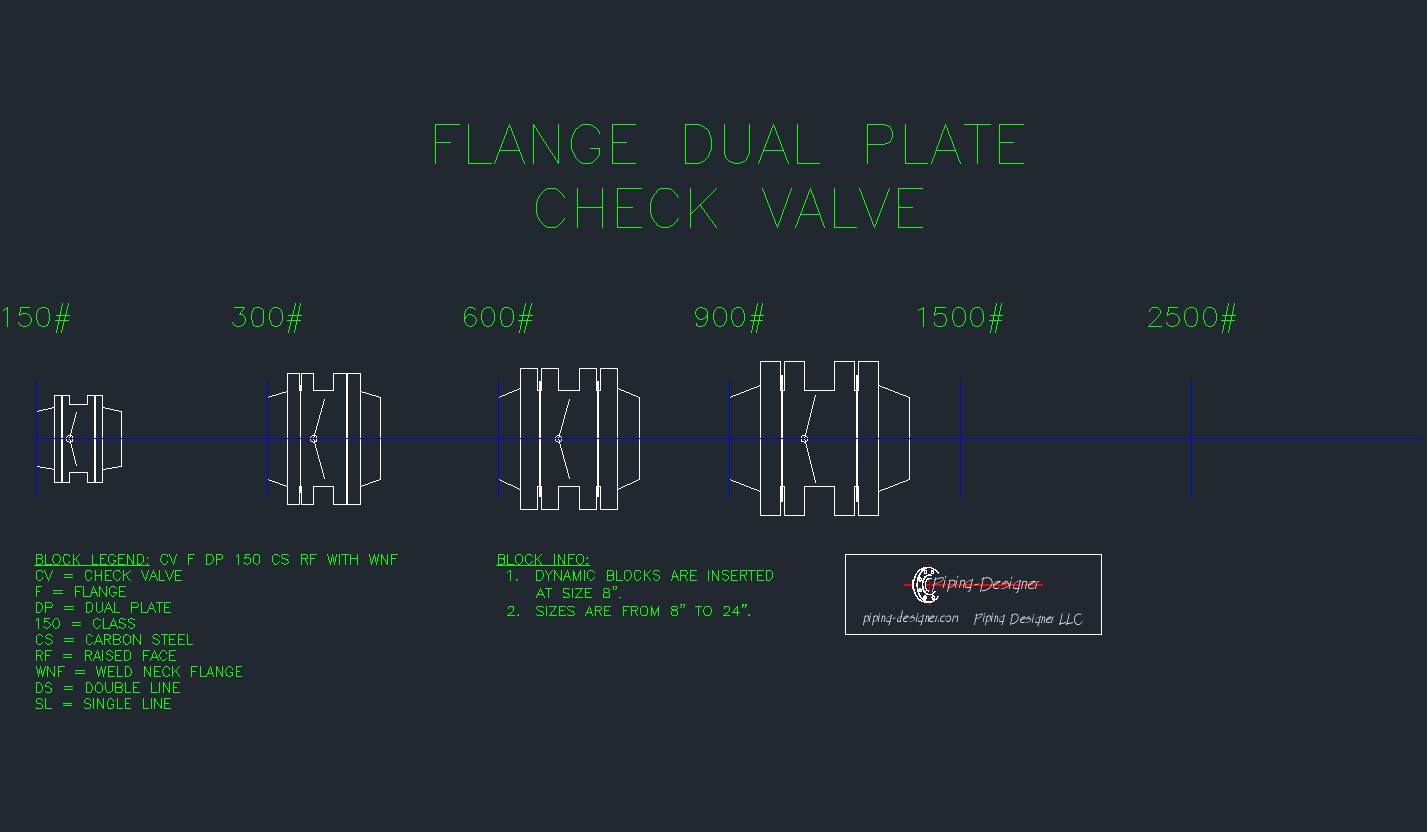

PD CV F DP 150 900 CS RF with WNFFlanged Dual Plate Check Valve with Flanges - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble LineNumber of Blocks
ANSI 150 8"-12" 8"-24" 11
ANSI 300 12" 12"-24" 7
ANSI 600 12" 12"-24" 7
ANSI 900 12" 12"-24" 7
ANSI 1500 - - -
ANSI 2500 - - -
    Total: 32

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!

Have questions about when to use these in your design?  Check out our articles or datasheets:
