Flanged Ball Valve Drawings

Written by Matt Milbury on . Posted in Valve Drawings

Flanged Ball Valve Drawings
$4.99

This Isometric Package contains blocks for ball valves in different ANSI Classes.  This drawing package contains 19 blocks!

pdfBall Valve Drawing Example24.5 KB

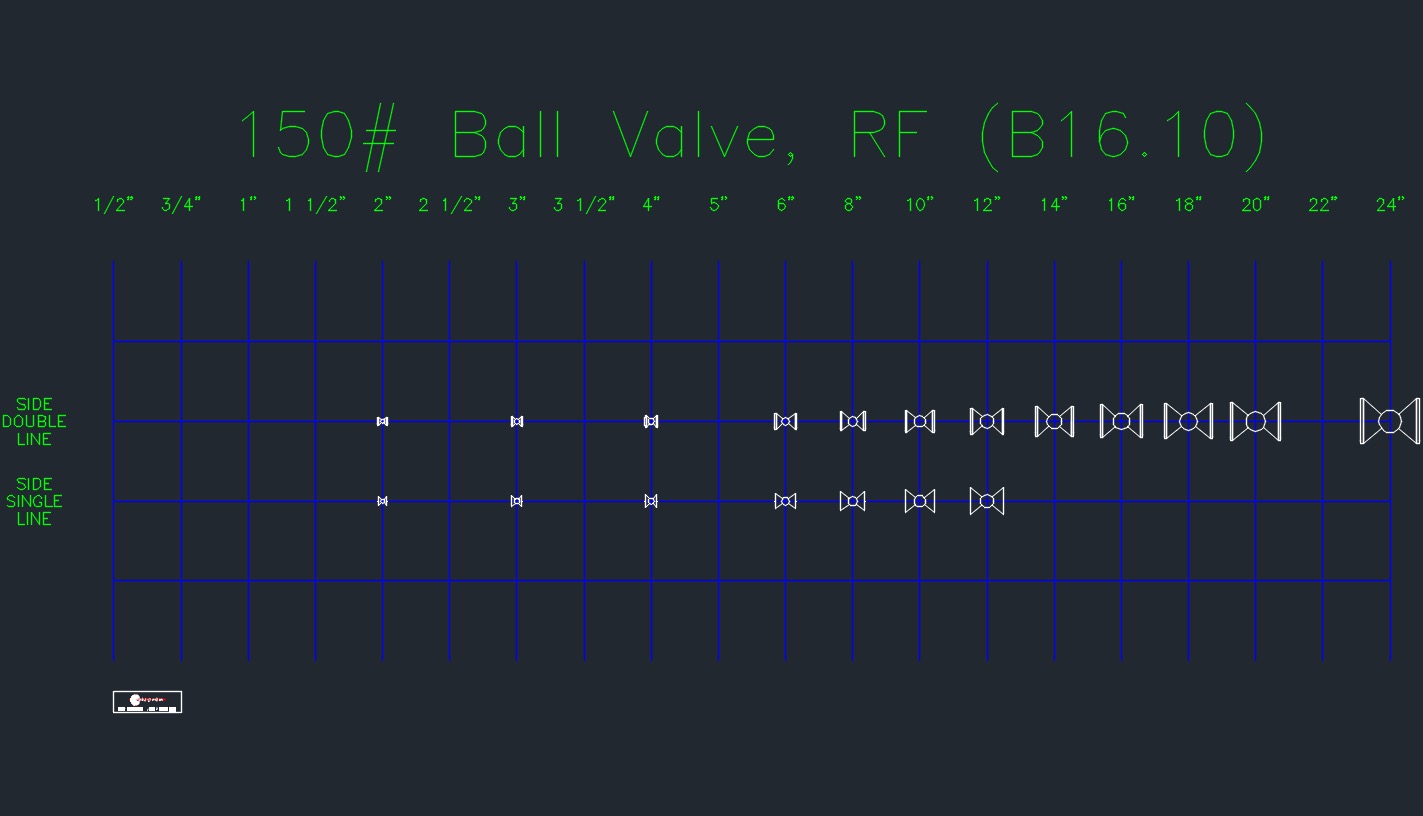

PD BV Flg 150ANSI 150 Ball Valve Drawing



All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes drawings for:

  • Ball Valves, ANSI Class 150
  • Ball Valves, ANSI Class 300
  • Ball Valves, ANSI Class 600
  • Ball Valves, ANSI Class 900
  • Ball Valves, ANSI Class 1500

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Have questions about when to use these valves in your design?  Check out our articles or datasheets:
