Dynamic Blocks - Globe Valve, Angle Body with WNF

Written by Matt Milbury on . Posted in Valve Drawings

Dynamic Blocks - Globe Valve, Angle Body with WNF
$19.99

This Drawing Package contains blocks for the plan and side views of an angle body globe valve at different ANSI Classes.  This drawing package contains ten dynamic blocks with a mix of single line and double line, plan and side views.

pdfDynamic Block Angle Body Globe Valve with WNF41.72 KB

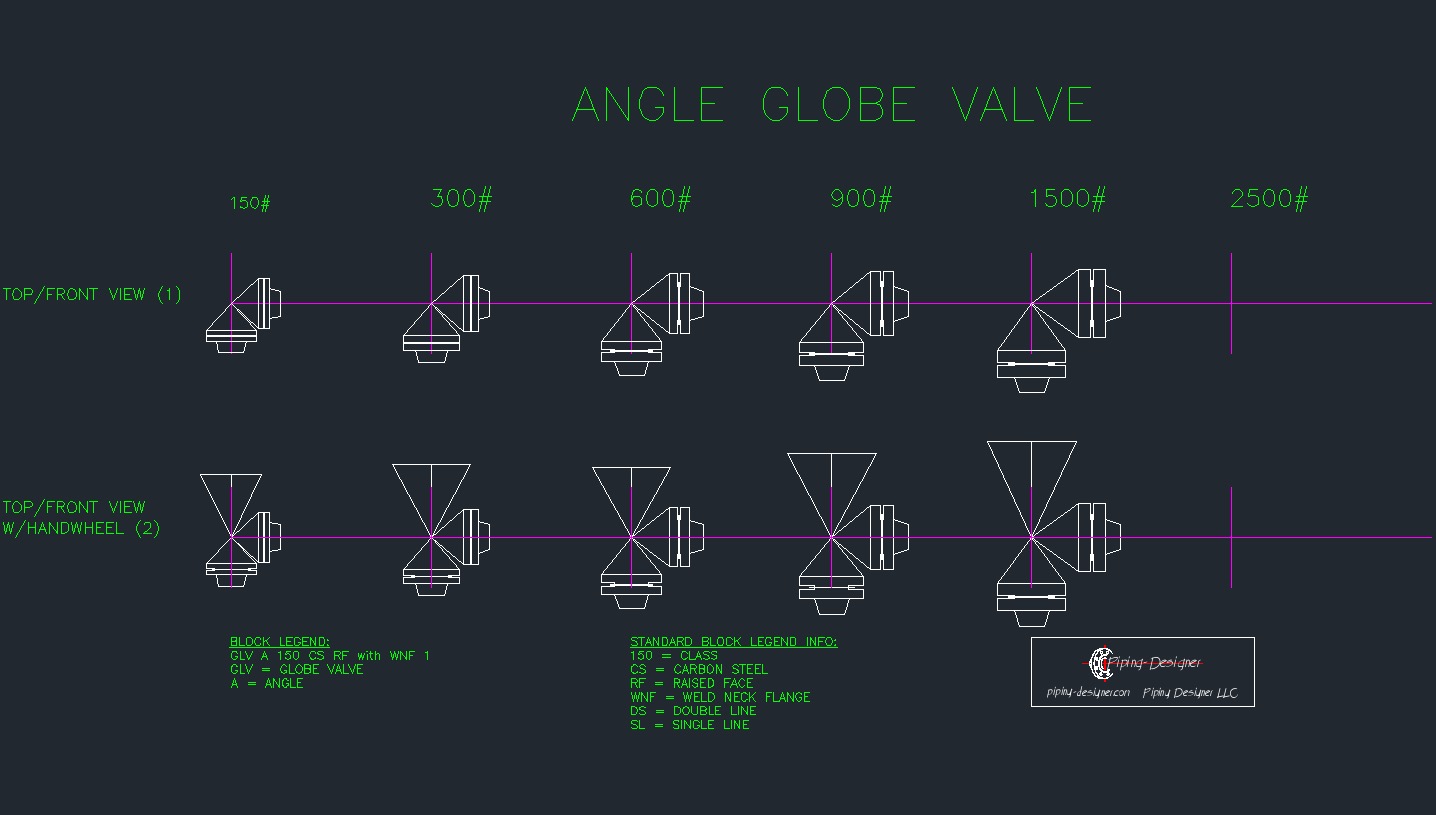

PD GLV A 150 1500 CS RF with WNFAngle Body Globe Valve with Flanges - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble LineNumber of Blocks
ANSI 150 2"-12" 2"-16" 32
ANSI 300 2"-12" 2"-12" 28
ANSI 600 2"-12" 2"-12" 28
ANSI 900 2"-10" 2"-10" 24
ANSI 1500 2"-8" 2"-8" 20
ANSI 2500 - - -
    Total: 132

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!
