Dynamic Blocks - Plug Valve Short Pattern 2 Way with WNF

Written by Matt Milbury on . Posted in Valve Drawings

Dynamic Blocks - Plug Valve Short Pattern 2 Way with WNF
$4.99

This Drawing Package contains blocks for short pattern 2-way plug valves at different ANSI Classes.  This drawing package contains six dynamic blocks with a mix of single line and double line. Included in this package are a bare stem valve shown in plan and profile views and a valve with a lever in the plan and profile view.

pdfDynamic Block Short Pattern Plug Valve with Flanges Example41.52 KB

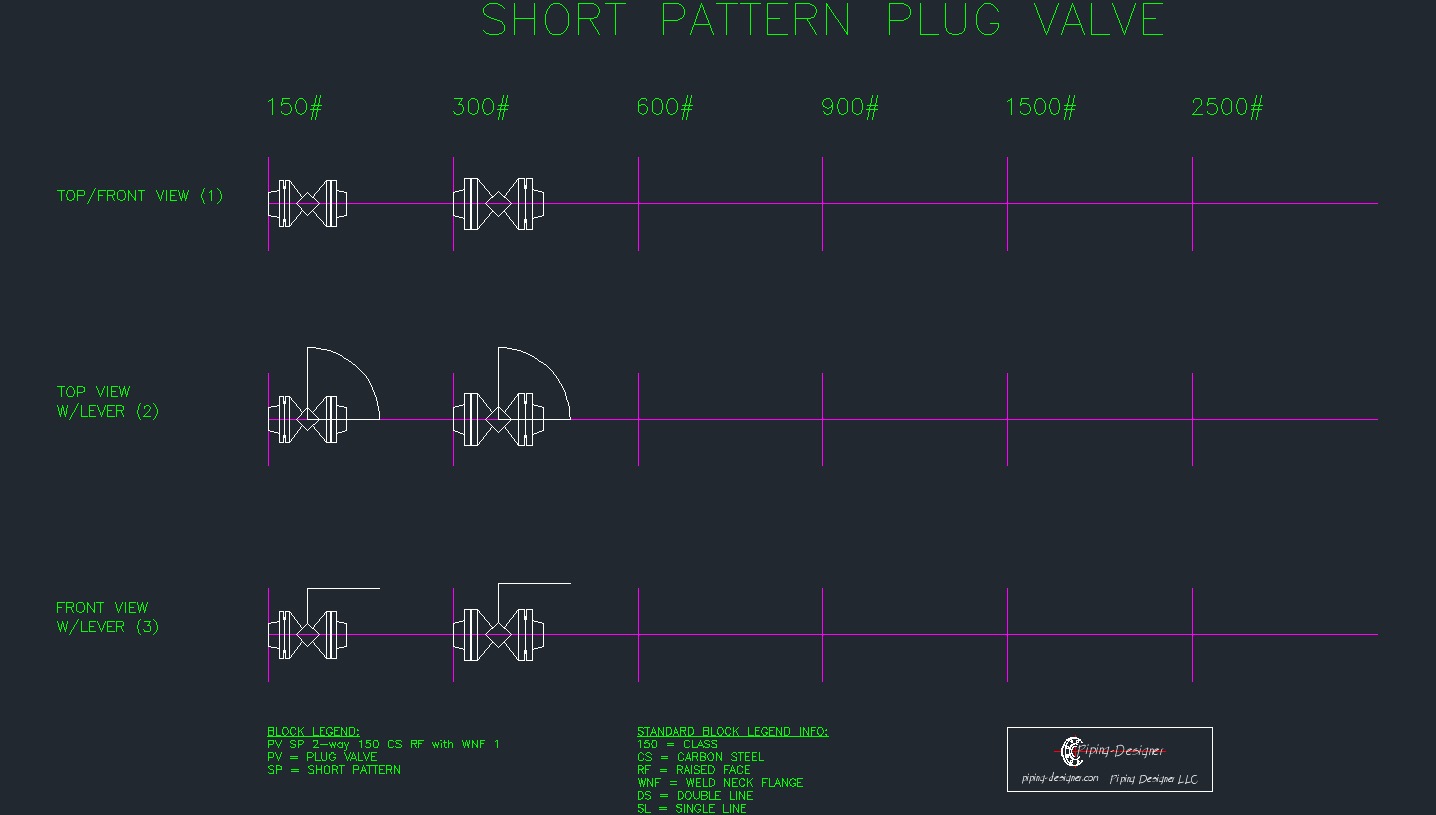

PD PV SP 2 way 150 300 CS RF with WNFShort Pattern Plug Valve with Flanges - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble LineNumber of Blocks
ANSI 150 2"-12" 2"-12" 14
  - Top View w/ Lever 2"-8" 2"-8" 10
  - Front View w/ Lever 2"-8" 2"-8" 10
ANSI 300 2"-12" 2"-12" 14
  - Top View w/ Lever 2"-8" 2"-8" 10
  - Front View w/ Lever 2"-8" 2"-8" 10
ANSI 600 - - -
ANSI 900 - - -
ANSI 1500 - - -
ANSI 2500 - - -
    Total: 68

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!
