Dynamic Blocks - Concentric & Eccentric Reducers

Written by Matt Milbury on . Posted in Fitting Drawings

Dynamic Blocks - Concentric & Eccentric Reducers
$4.99

This Drawing Package contains different views of concentric reducers and eccentric reducers.  This drawing package contains two dynamic blocks.  Each dynamic block contains 84 blocks.

pdfDynamic Block Concentric and Eccentric Reducer Example36.86 KB20/08/2017

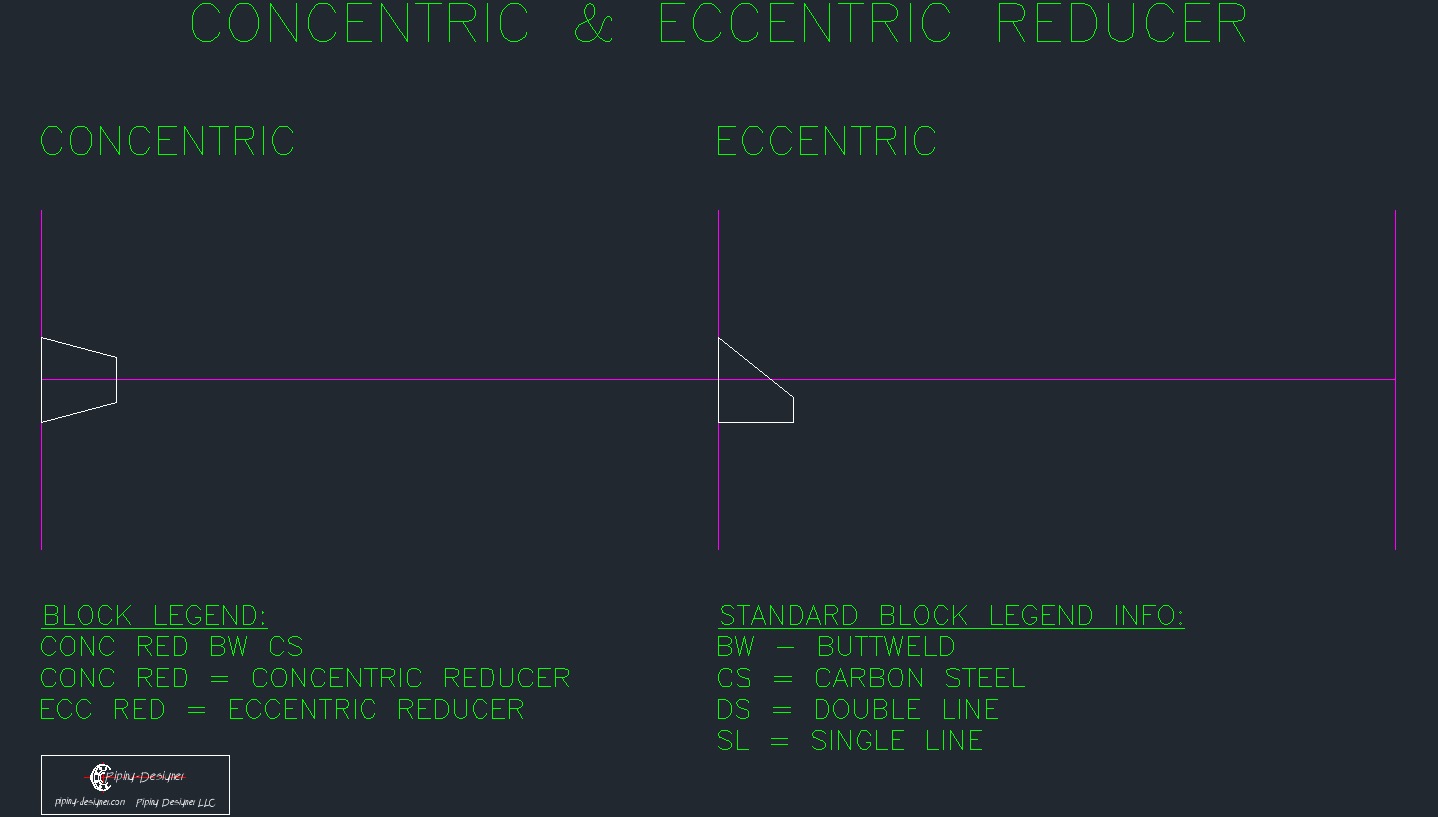

PD DYN CONC ECC RED BW CSConcentric & Eccentric Reducers - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Total # of BlocksList of Sizes
Concentric 84 -Link-
Eccentric 84 -Link-
 Total: 168




Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!

Have questions about when to use these in your design?  Check out our articles or datasheets:

Tags: Dynamic Blocks
