Dynamic Blocks - Tee

Written by Matt Milbury on . Posted in Fitting Drawings

Dynamic Blocks - Tee
$4.99

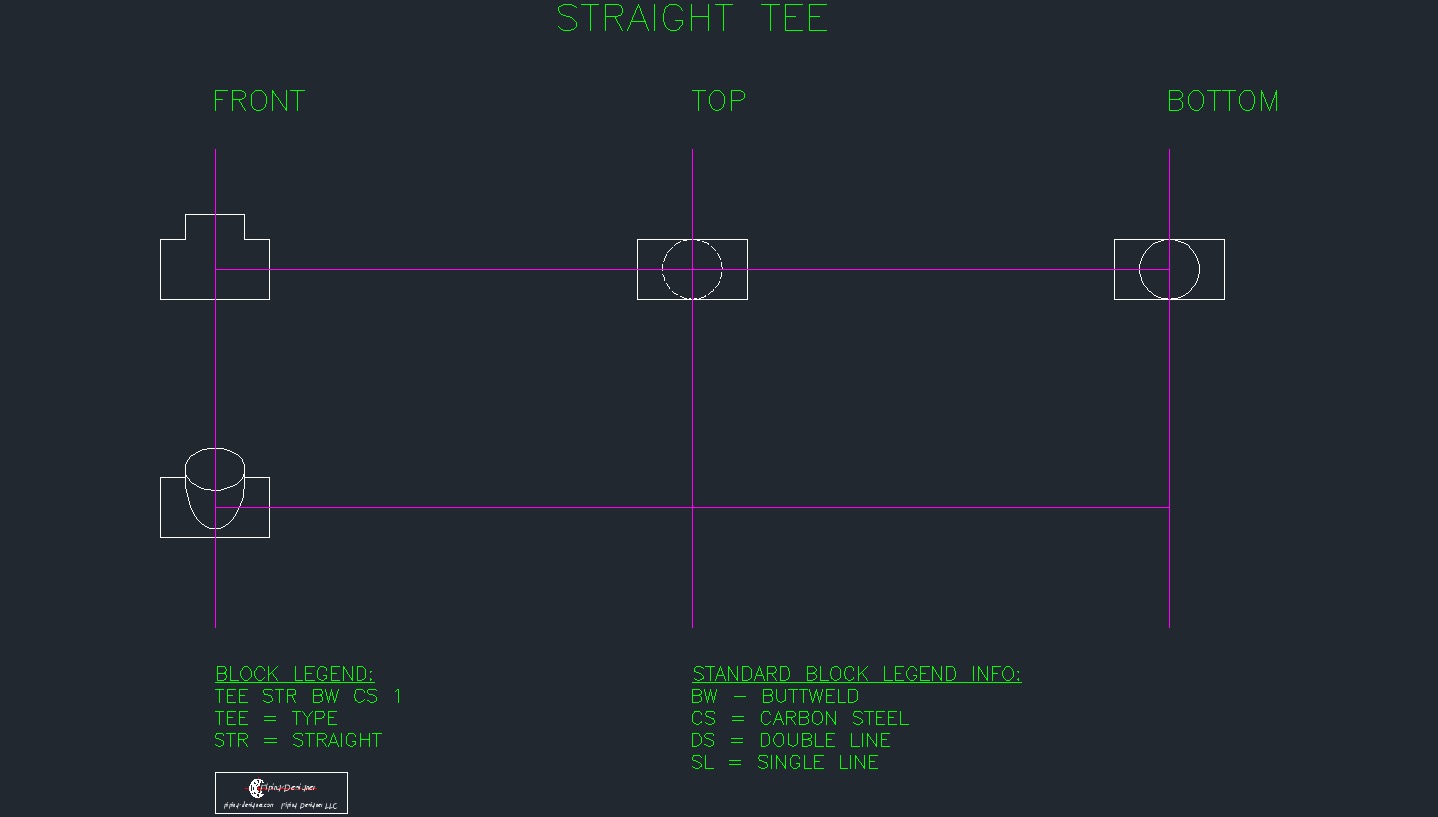

This Drawing Package contains dynamic blocks for the plan, top and bottom view of a straight tee.  It also contains a view that shows a front view rolled 45 degrees.  This drawing package contains four dynamic blocks.  Each dynamic block contains 24 blocks.

pdfDynamic Block Tee Example32.31 KB20/08/2017

PD DYN TEE STR BW CSTee Example - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble LineTotal
Plan View 2"-12" 2"-24" 24
Plan View Rolled 45 Degrees 2"-12" 2"-24" 24
Top View 2"-12" 2"-24" 24
Bottom View 2"-12" 2"-24" 24
     Totals96


Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004
