Dynamic Blocks - Check Valve, Swing with WNF
$19.99

This Drawing Package contains blocks for check valves at different ANSI Classes.  This drawing package contains six dynamic blocks with a mix of single line and double line.

pdfDynamic Block Swing Check Valve with Flanges28.5 KB

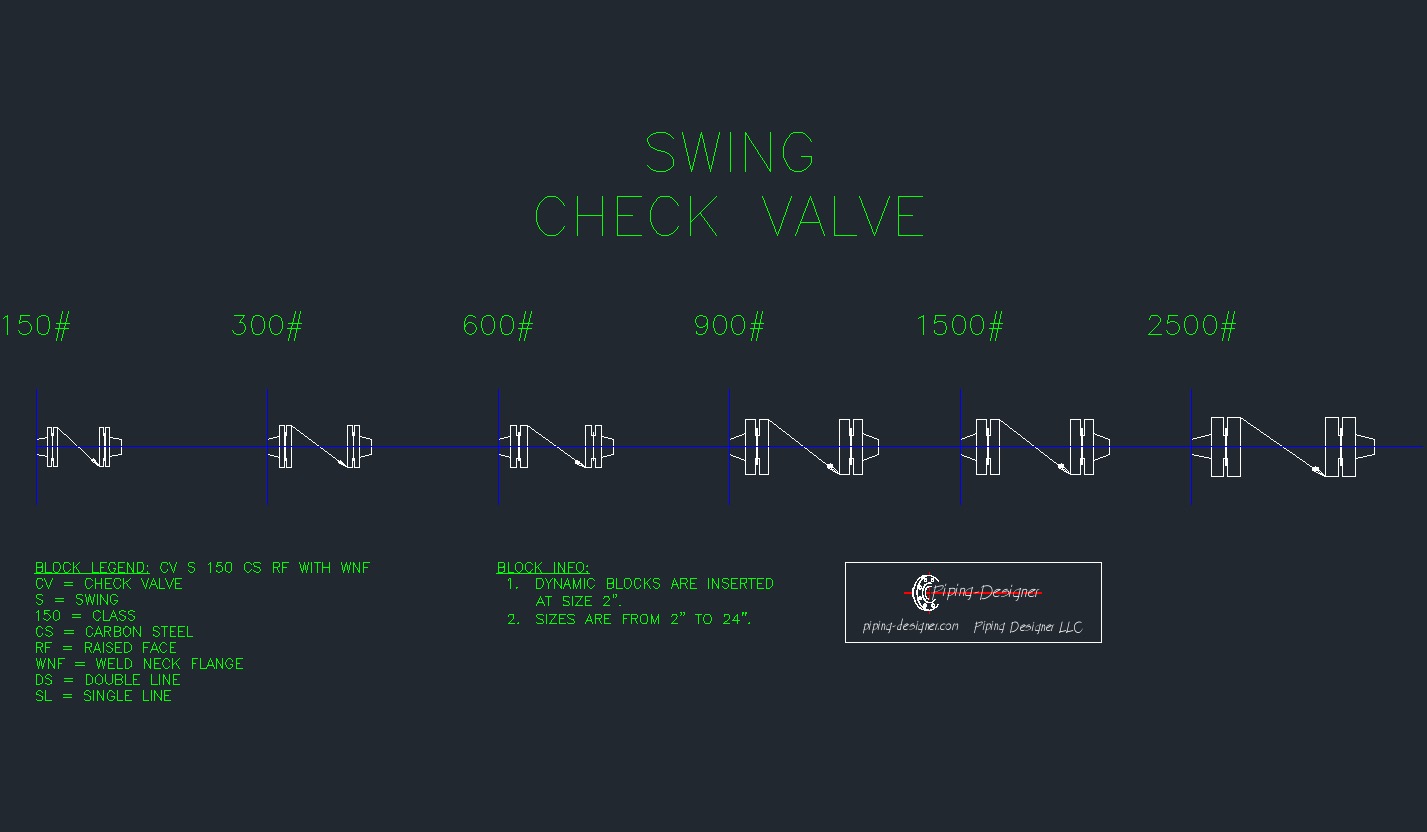

PD CV S 150 2500 CS RF with WNFSwing Check Valve with Flanges - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble LineNumber of Blocks
ANSI 150 2"-12" 2"-24" 19
ANSI 300 2"-12" 2"-24" 19
ANSI 600 2"-12" 2"-24" 19
ANSI 900 2"-12" 2"-24" 19
ANSI 1500 2"-12" 2"-24" 19
ANSI 2500 2"-12" 2"-12" 14
    Total: 109

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!

Have questions about when to use these in your design?  Check out our articles or datasheets:
