Dynamic Blocks - Ball Valve with WNF

Written by Matt Milbury on . Posted in Valve Drawings

Dynamic Blocks - Ball Valve with WNF
$19.99

This Drawing Package contains blocks for ball valves at different ANSI Classes.  This drawing package contains 15 dynamic blocks with a mix of single line and double line.  Some blocks show a lever which can be removed, if needed.  The lever is shown for typical sizes that have a lever as opposed to a handwheel which is usually needed for higher pressure and larger diameter applications.

pdfDynamic Block Ball Valve with Flanges42.26 KB

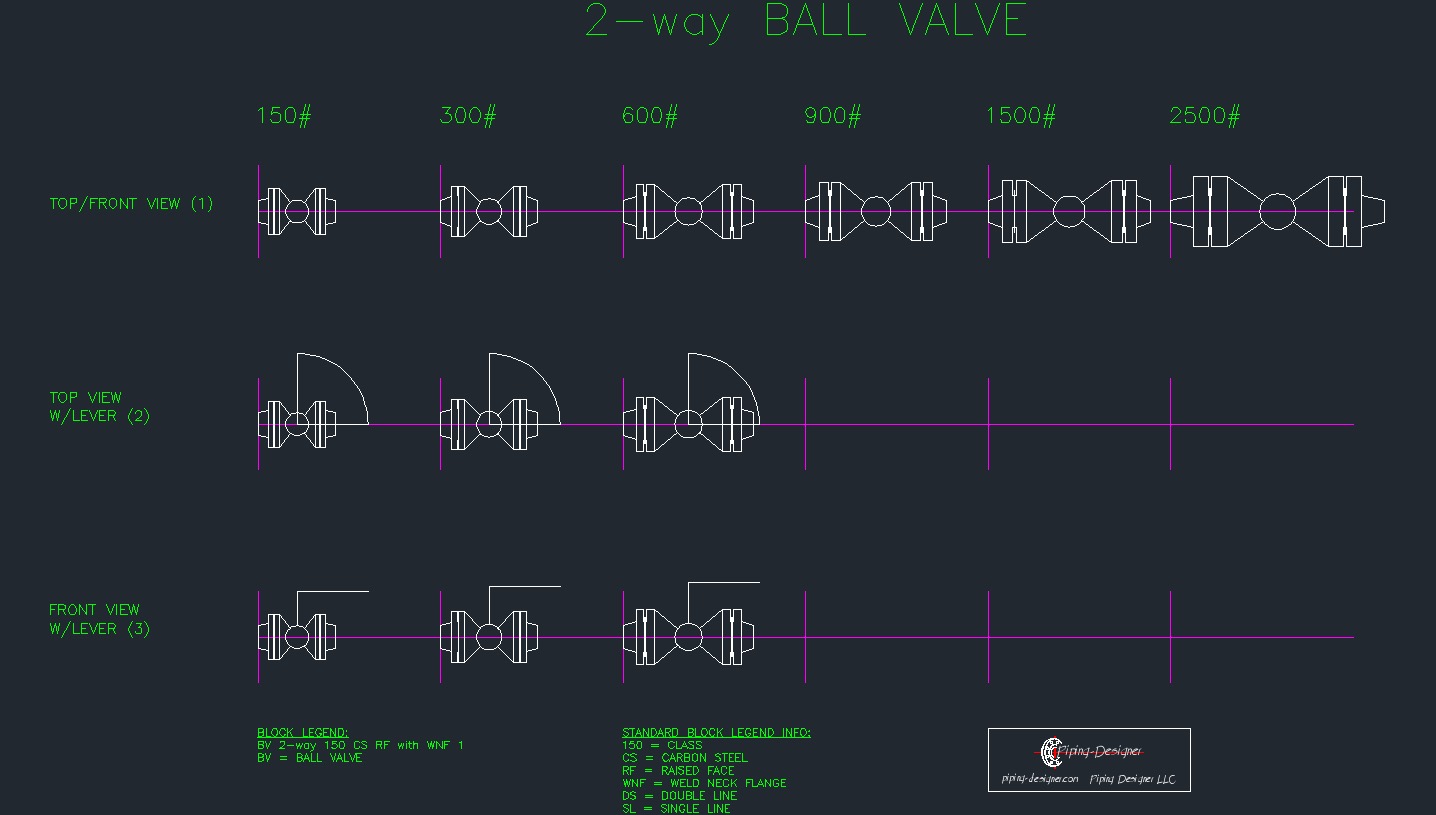

PD BV 2 way 150 2500 CS RF with WNFBall Valve with Flanges - Dynamic AutoCAD Blocks

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:

 Single LineDouble LineNumber of Blocks
ANSI 150 2"-12" 2"-24" 19
-w/ lever 2"-8" 2"-8" 20
ANSI 300 2"-12" 2"-24" 19
-w/ lever 2"-8" 2"-8" 20
ANSI 600 2"-12" 2"-24" 19
-w/ lever 2"-6" 2"-6" 16
ANSI 900 2"-12" 2"-24" 19
ANSI 1500 2"-12" 2"-24" 19
ANSI 2500 2"-12" 2"-12" 14
    Total: 165

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Want to learn more about dynamic blocks?  Check out the AutoCAD webpage!

Have questions about when to use these in your design?  Check out our articles or datasheets:
