This Butt Weld Package contains blocks for 90 degree butt welded elbows. This set also includes 90 degree butt weld elbows that have been rolled 45 degrees. This drawing package contains 208 blocks!

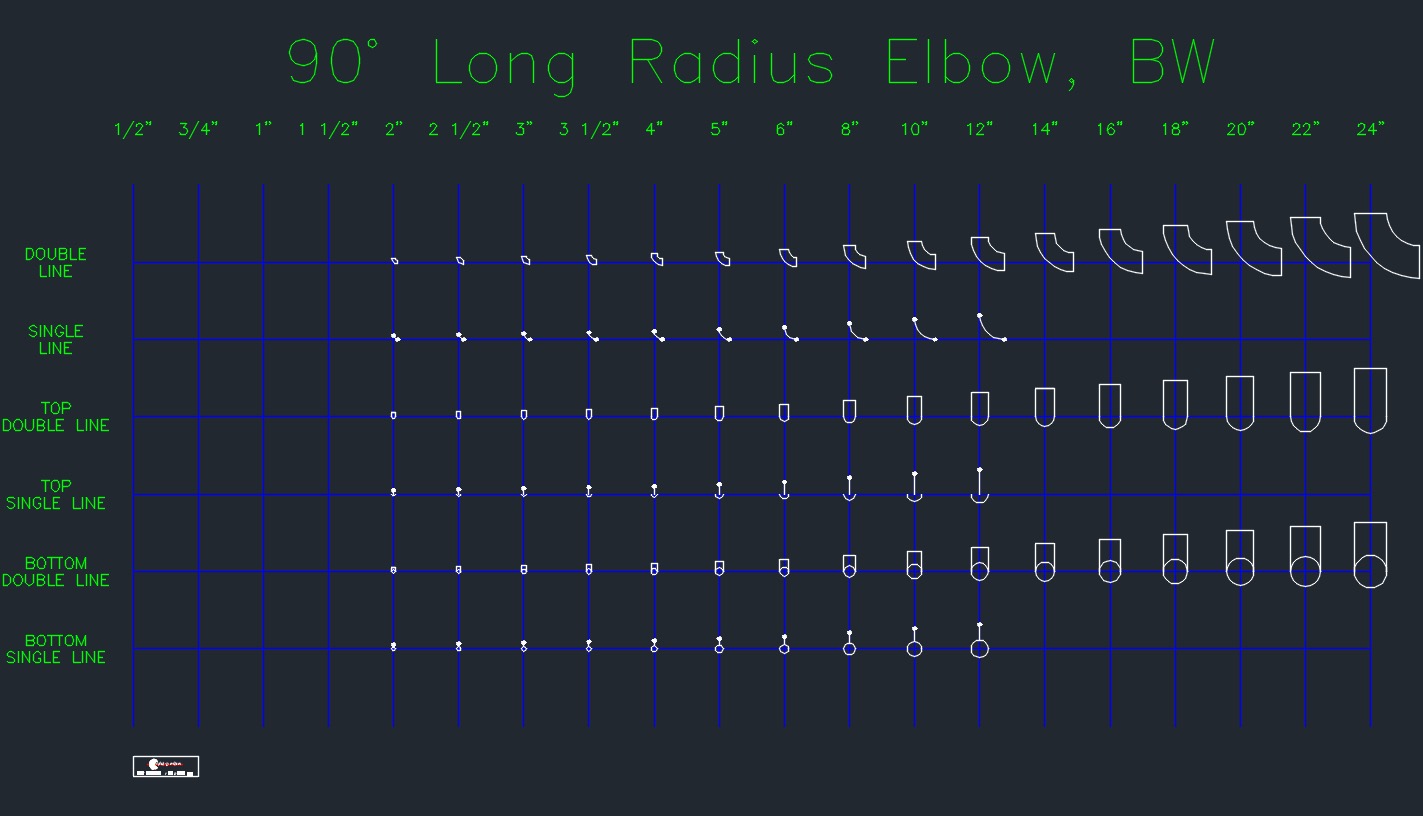

Butt Weld Elbow 90 Degrees Long Radius Drawing Example42.34 KB
Butt Weld Elbow 90 Degrees Long Radius Rolled 45 Degrees Drawing Example37.63 KB
90 Degree Long Radius Elbow
90 Degree Long Radius Rolled 45
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes:
- Double Line Elbow profile, top and bottom view, 2" - 24"
- Single Line Elbow profile, top and bottom view, 2"-12"
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Have questions about when to use these valves in your design? Check out our articles or datasheets:
$3.99
