This Drawing Package contains different views of various equipment used in process design. Each piece of equipment can be inserted in one of three planes: top, right or left. This drawing package contains 12 dynamic blocks. Each dynamic block contains multiple views of the following valves. Each set of valves has multiple accessories that are commonly used.
- Centrifugal Pump
- Rotary Pump
- Sump Pump
- Tank
- Horizontal Vessel
- Vertical Vessel
- Tank & Vessel Connection
Dynamic Block Isometric Pump Example42.61 KB
Dynamic Block Tank & Vessel Example47.04 KB

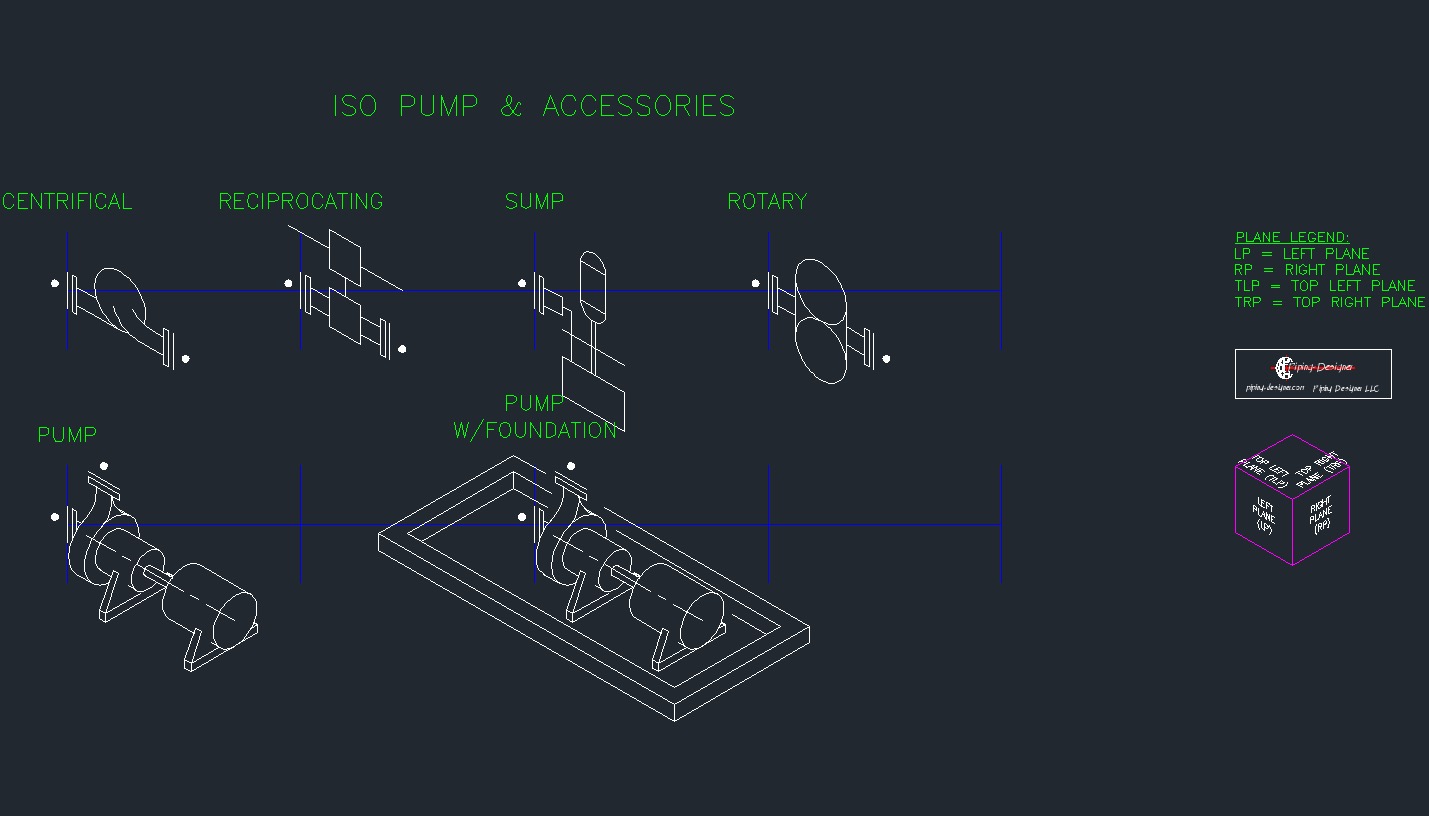

Isometric Pump - Dynamic AutoCAD Blocks

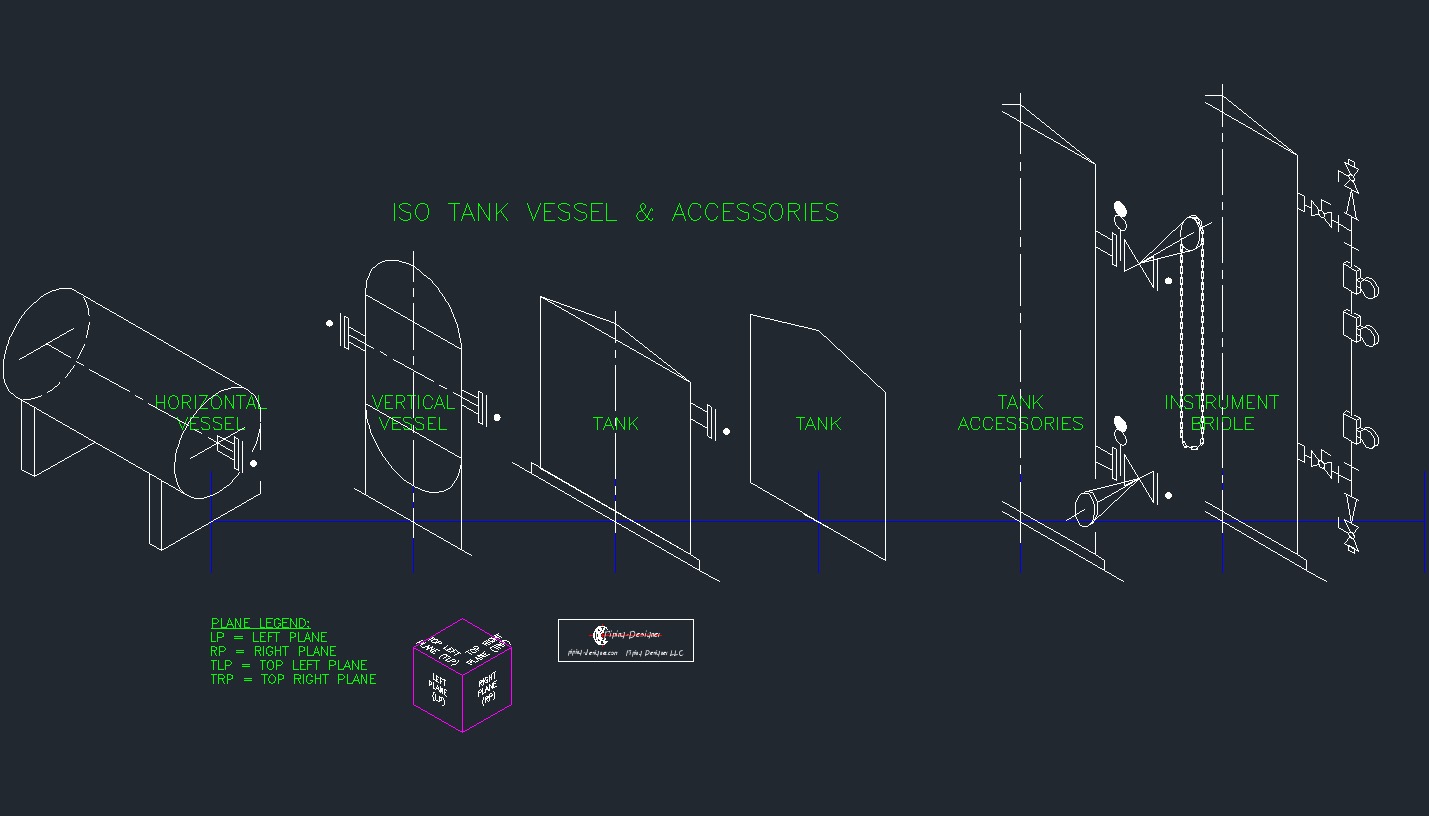

Isometric Tank & Vessel - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
