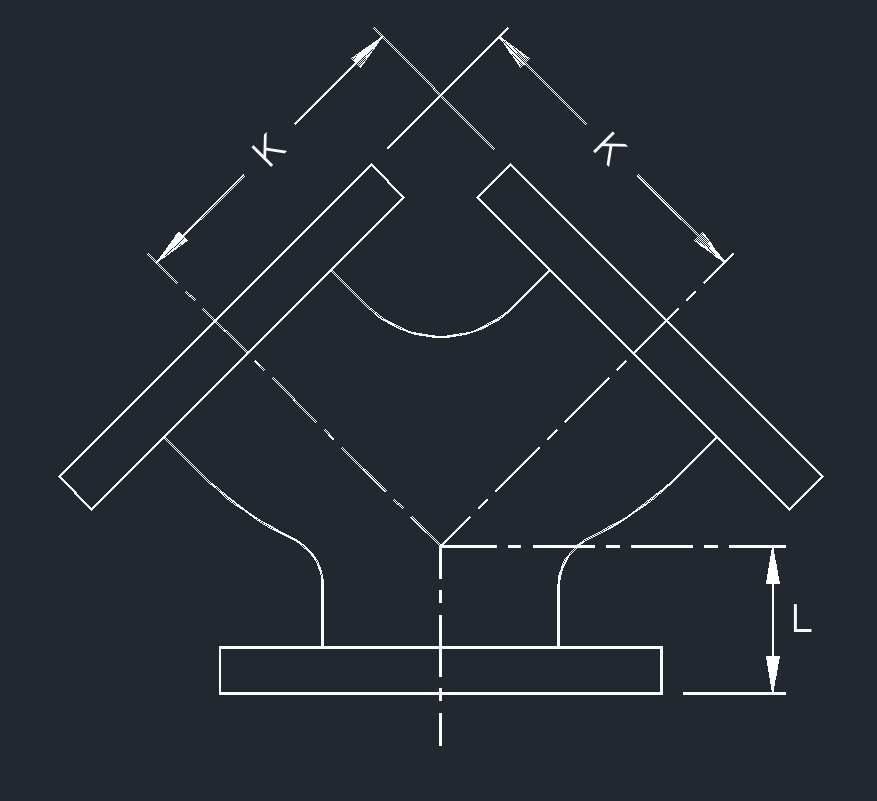

Flanged Wye - AWWA C110, DI (in)
Flanged Wye - AWWA C110, DI (in) | ||||
---|---|---|---|---|
Pipe Size | K | L | Approx. Weight (lb) | |
Run | Branch | |||
4 | 4 | 6 1/2 | 3 | 50 |
6 | 4 | 8 | 3 1/2 | 75 |
6 | 6 | 8 | 3 1/2 | 85 |
8 | 6 | 9 | 4 1/2 | 135 |
8 | 8 | 9 | 4 1/2 | 125 |
10 | 6 | 8 | 5 | 140 |
10 | 8 | 9 | 5 | 155 |
10 | 10 | 11 | 5 | 220 |
12 | 8 | 9 | 5 1/2 | 210 |
12 | 10 | 11 | 5 1/2 | 240 |
12 | 12 | 12 | 5 1/2 | 315 |
16 | 16 | 15 | 6 1/2 | 520 |
Flanged wye fittings are not included in AWWA C110/A21.10
- For flange dimensions see Flange - ANSI Class 125, C110, DI
- AWWA C110/A21.10 - Ductile-Iron and Gray-Iron Fittings (3" to 48")
- AWWA C104/A21.4 - Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water
- ASME B16.1 - Gray Iron Pipe Flanges and Flanged Fittings: Classes 25, 125, and 250 (Flange surfaces shall be faced and drilled in accordance with ANSI Class 125)
- All ductile iron flanged fittings shall be rated for water pressure of 250 PSI.
- Flanged ductile iron fittings in 24 inch and smaller sizes may be rated for 350 psi with the use of special gaskets.
