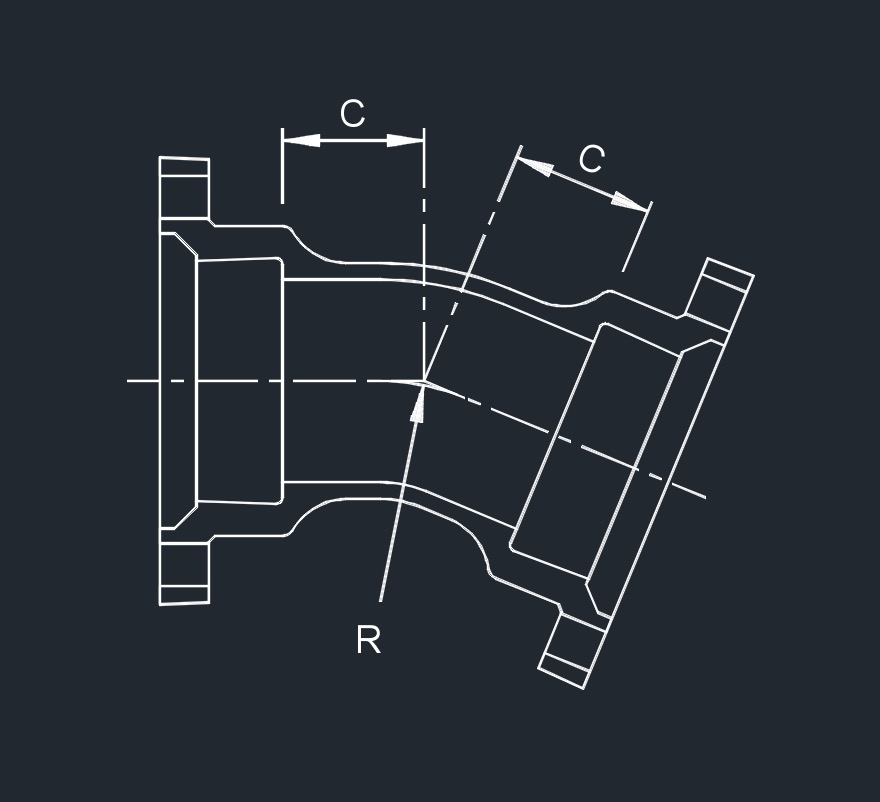

mj bend 22 1 dimechanical joint by mechanical joint

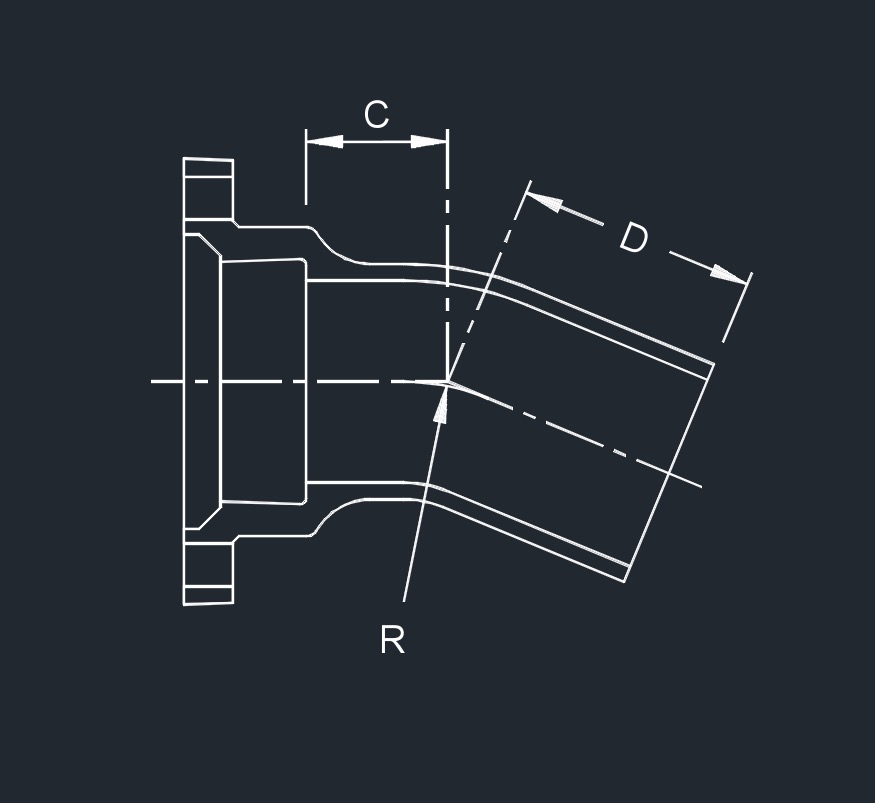

mj bend 22 3 dimechanical joint by plain end

mj bend 22 2 dimechanical joint by flanged





















Mechanical Joint 22 1/2 Bends - Full Body, AWWA C110, DI (in)

  • For flange dimensions see Flange - ANSI Class 125, C110, DI
  • AWWA C110/A21.10 - Ductile-Iron and Gray-Iron Fittings (3" to 48")
  • ASME B16.1 - Gray Iron Pipe Flanges and Flanged Fittings: Classes 25, 125, and 250 (Flange surfaces shall be faced and drilled in accordance with ANSI Class 125)
  • AWWA C104/A21.4 - Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water
  • AWWA C111/A21.11 - Rubber-Gasket Joints for Ductile-Iron Pressure Pipe and Fittings
  • Ductile iron mechanical joint fittings 3" through 24" shall be rated for 350 PSI working pressure.
  • Flanged ductile iron fittings in 24 inch and smaller sizes may be rated for 350 psi with the use of special gaskets.
  • MJ - mechanical joint
  • PE - plain end
  • FLG - flange
Pipe SizeDimension (in)Approx. Weight (lb)
RCDMJ x MJMJ x PEMJ x FLG
3 7.56 3.0 11.0 30 - -
4 10.06 4.0 12.0 52 - -
6 15.06 5.0 13.0 77 71 70
8 17.62 5.5 13.5 110 107 109
10 22.62 6.5 14.5 156 155 163
12 27.62 7.5 15.5 221 215 224
14 25.12 7.5 15.5 300 - -
16 27.62 8.0 16.0 391 315 365
18 30.19 8.5 16.5 527 422 455
20 35.19 9.5 17.5 611 - 575
24 37.69 11.0 19.0 986 800 930
30 57.81 15.0 23.0 1898 - 1540
36 72.88 18.0 26.0 2372 - 1970
42 88.00 21.0 - 3020 - -
48 103.06 24.0 - 4170 - -
