Valve - Check, Dual Plate, ANSI Class 2500, CS (in)

Written by Matt Milbury on . Posted in Check Valve Datasheets

  • Dimensions and tolerances in accordance with ANSI/ASME B16.5 for sizes 1/2" to 24".
  • Face to face dimensions per ANSI/ASME B16.10.
  • Gaskets dimensions and tolerances in accordance with ANSI/ASME B16.20.
  • Valve dimensions and tolerances in accordance with ANSI/ASME B16.34.
  • Valve weight is approximate and vary between manufacture's. Contact manufacturer for specific information.
  • Pressure Temperature Rating:
    • Carbon Steel
    • ASTM A216 Grade WCB
    • 285 psi @ -20°F to 100°F

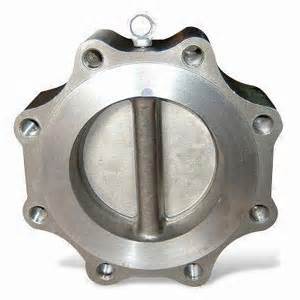

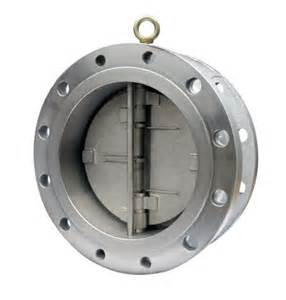

 data wafer dual plate check valve 1data lug dual plate check valve 1data flg dual plate check valve 1

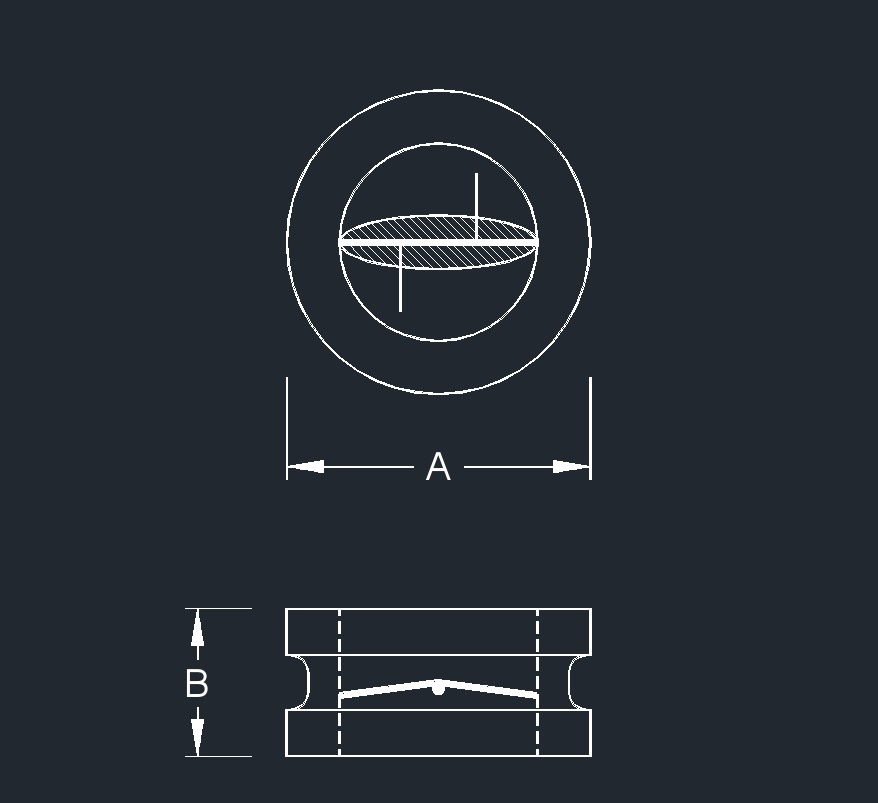

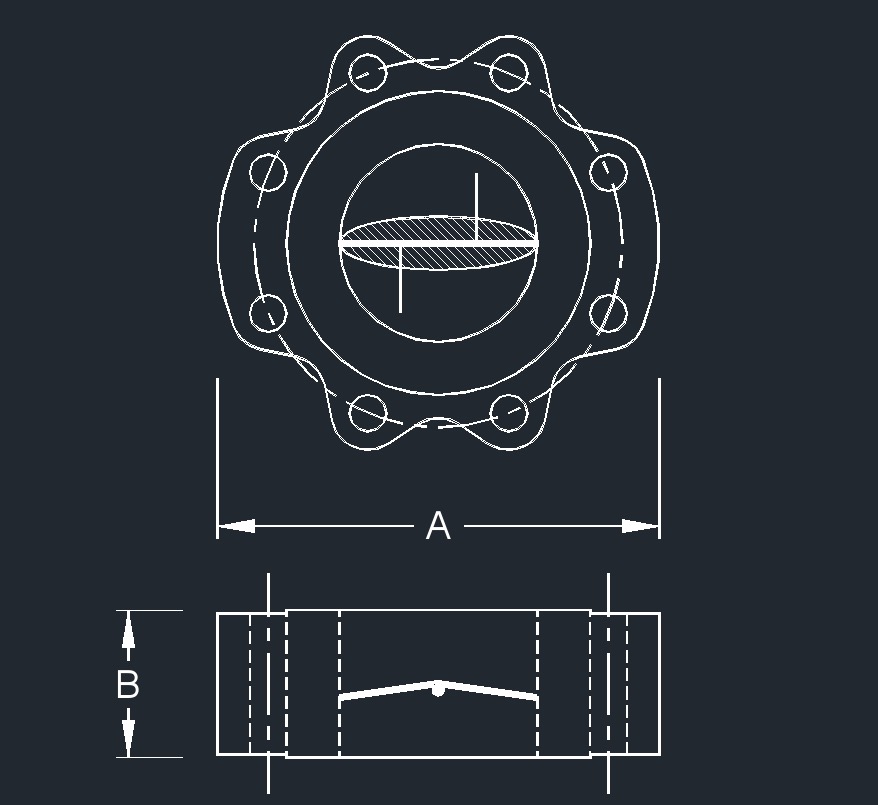

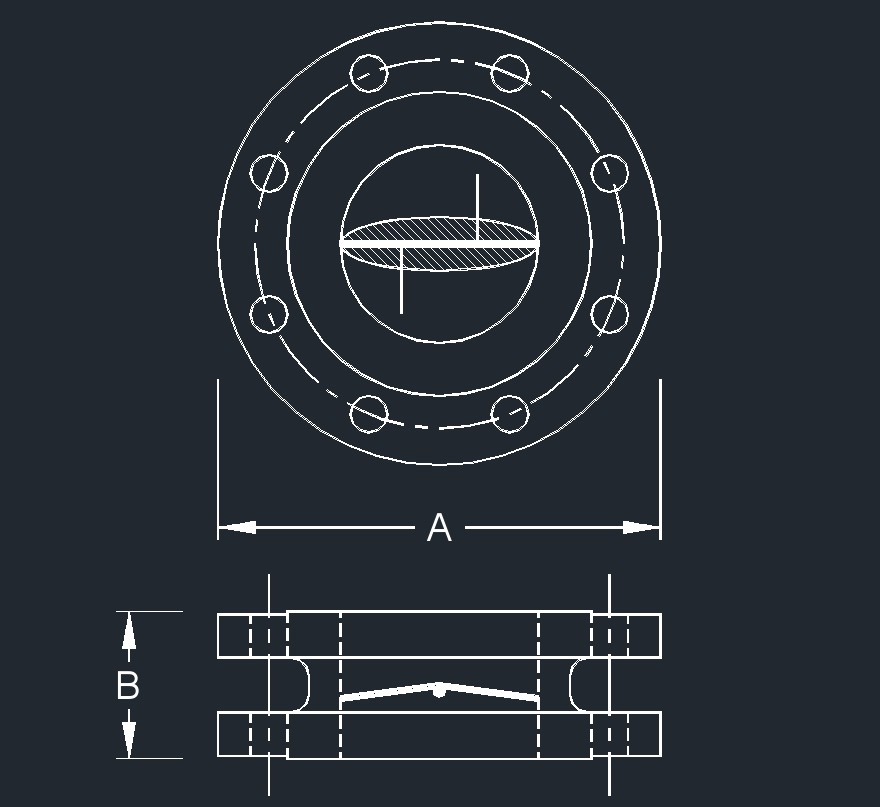

data wafer dual plate check valvedata lug dual plate check valvedata flg dual plate check valve

Valve Size

(in)

Face to Face Dimension (in)Approx. Weight (lb)
WaferLugFlangeWaferLugFlange
ABABAB
1/2 - - - - - - - - -
3/4 - - - - - - - - -
1 - - - - - - - - -
1 1/2 - - - - - - - - -
2 5 5/8 2 3/4 8.86 2 3/4 - - 5 40 -
2 1/2 6 9/16 3 5/16 10.04 3 1/4 - - 7 53 -
3 7 5/8 3.39 11 7/16 3 3/8 - - 9 70 -
4 9 1/8 4.13 13 9/16 4 1/8 - - 14 135 -
6 12 7/16 6.26 17 13/16 6 1/4 - - 28 285 -
8 15 3/16 8.11 20 11/16 8 1/8 - - 53 545 -
10 18 11/16 10 25 3/8 10 - - 88 980 -
12 21 9/16 12.01 28 3/4 12 - - 145 1740 -
14 - - - - - - - - -
16 - - - - - - - - -
18 - - - - - - - - -
20 - - - - - - - - -
24 - - - - - - - - -
