API RP 500, Section 14

Written by Jerry Ratzlaff on . Posted in Electrical Engineering

Area Classification Drawing List

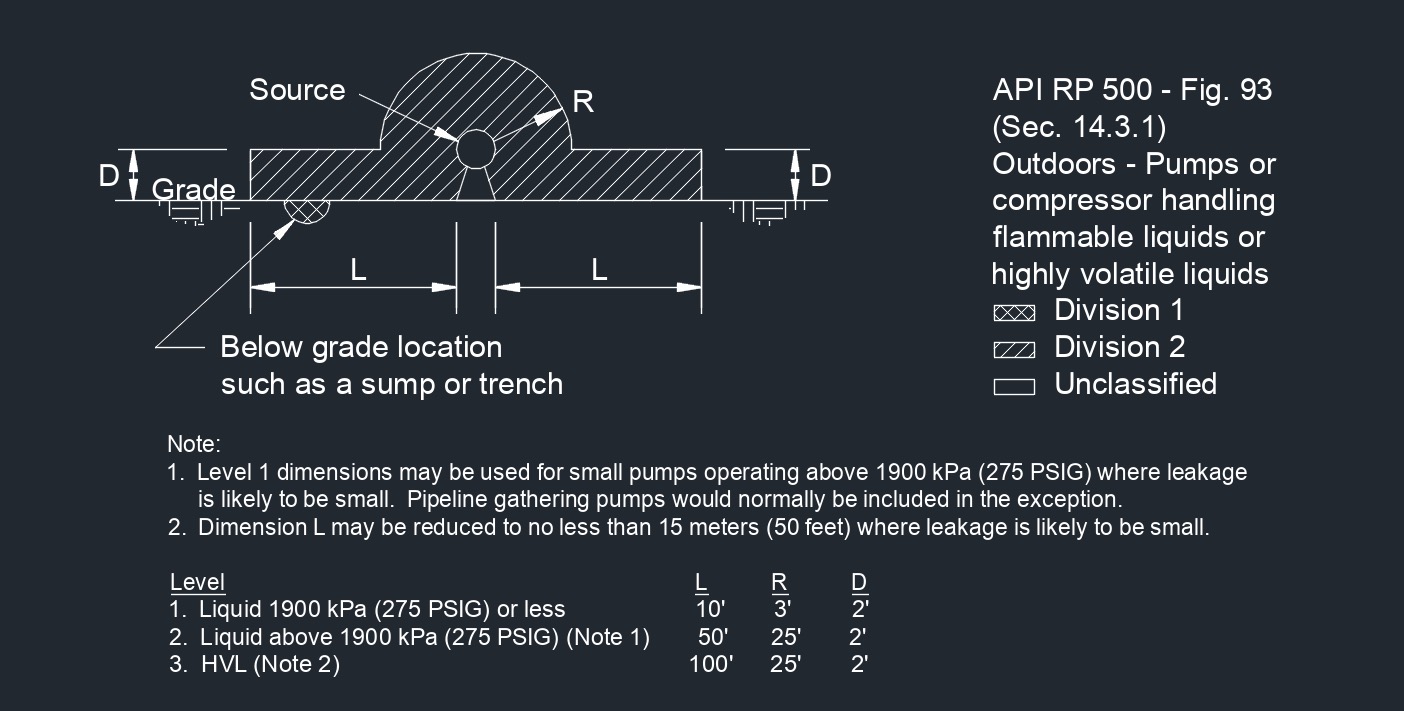

API RP 500, Figure 93

API RP 500 Fig. 93 1



API RP 500, Figure 94

API RP 500 Fig. 94 1

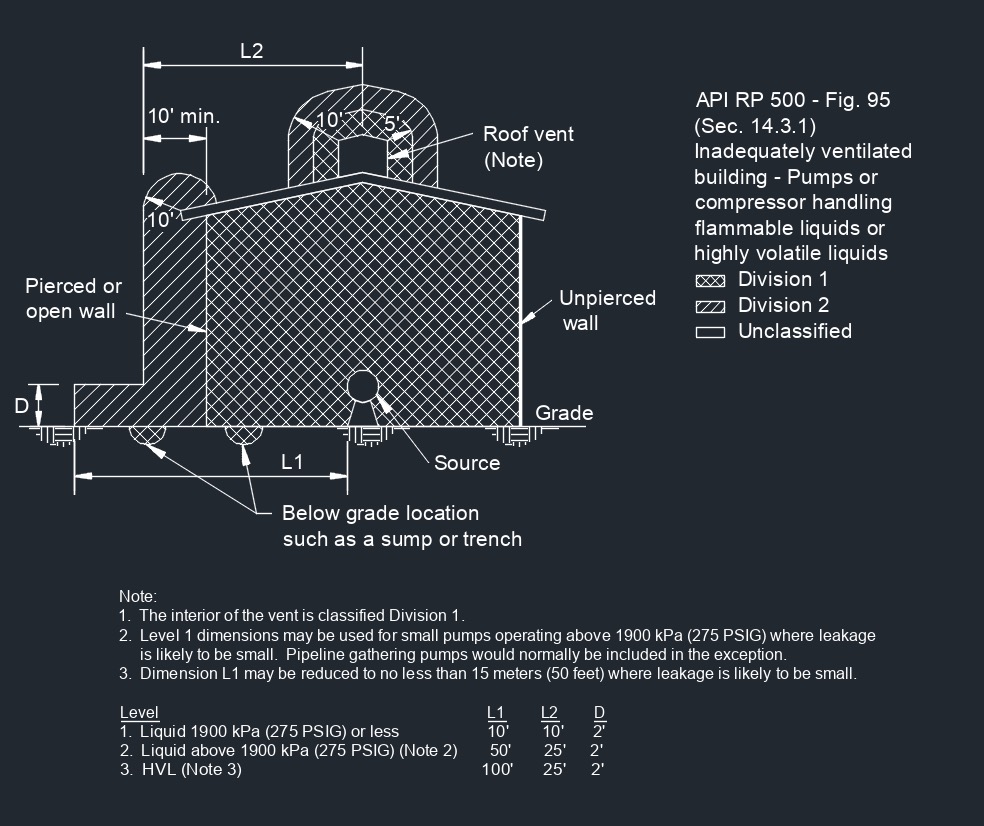

API RP 500, Figure 95

API RP 500 Fig. 95 1

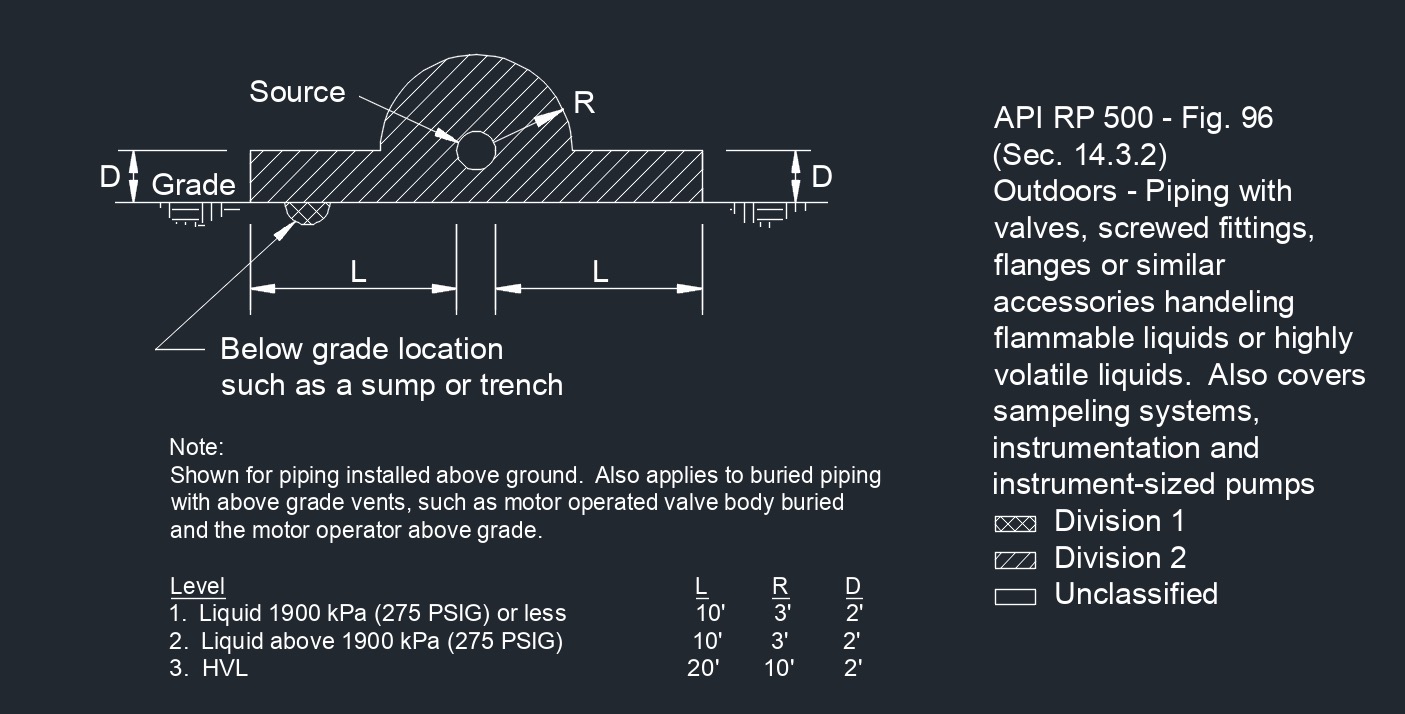

API RP 500, Figure 96

API RP 500 Fig. 96 1



API RP 500, Figure 97

API RP 500 Fig. 97 1

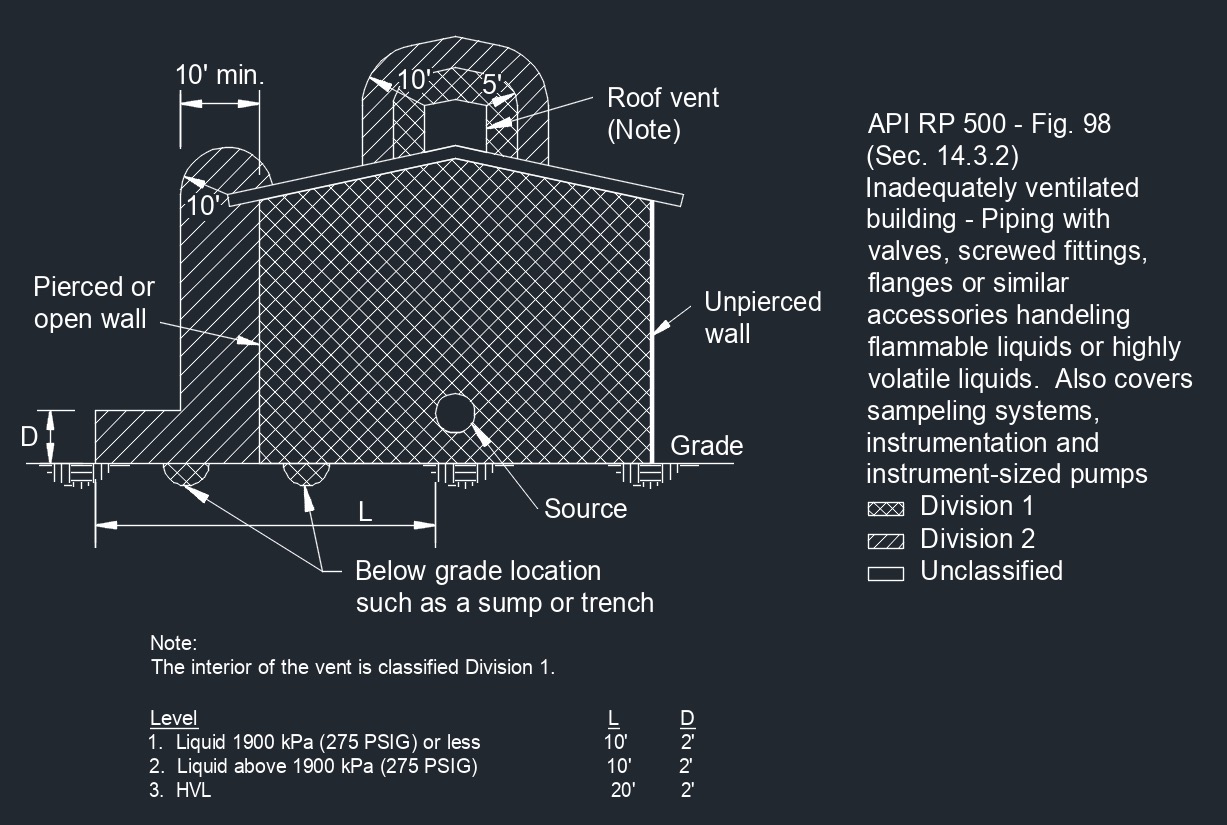

API RP 500, Figure 98

API RP 500 Fig. 98 1



API RP 500, Figure 99

API RP 500 Fig. 99 1



API RP 500, Figure 100

API RP 500 Fig. 100 1

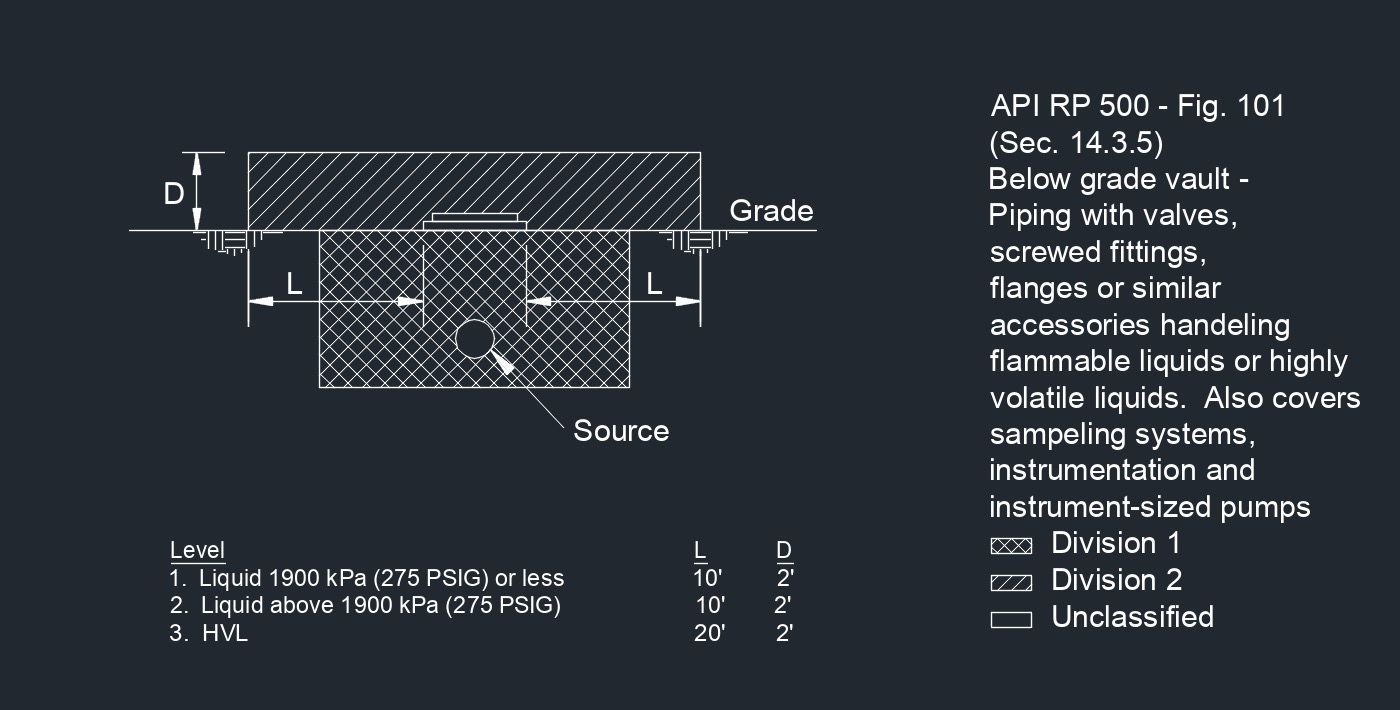

API RP 500, Figure 101

API RP 500 Fig. 101 1

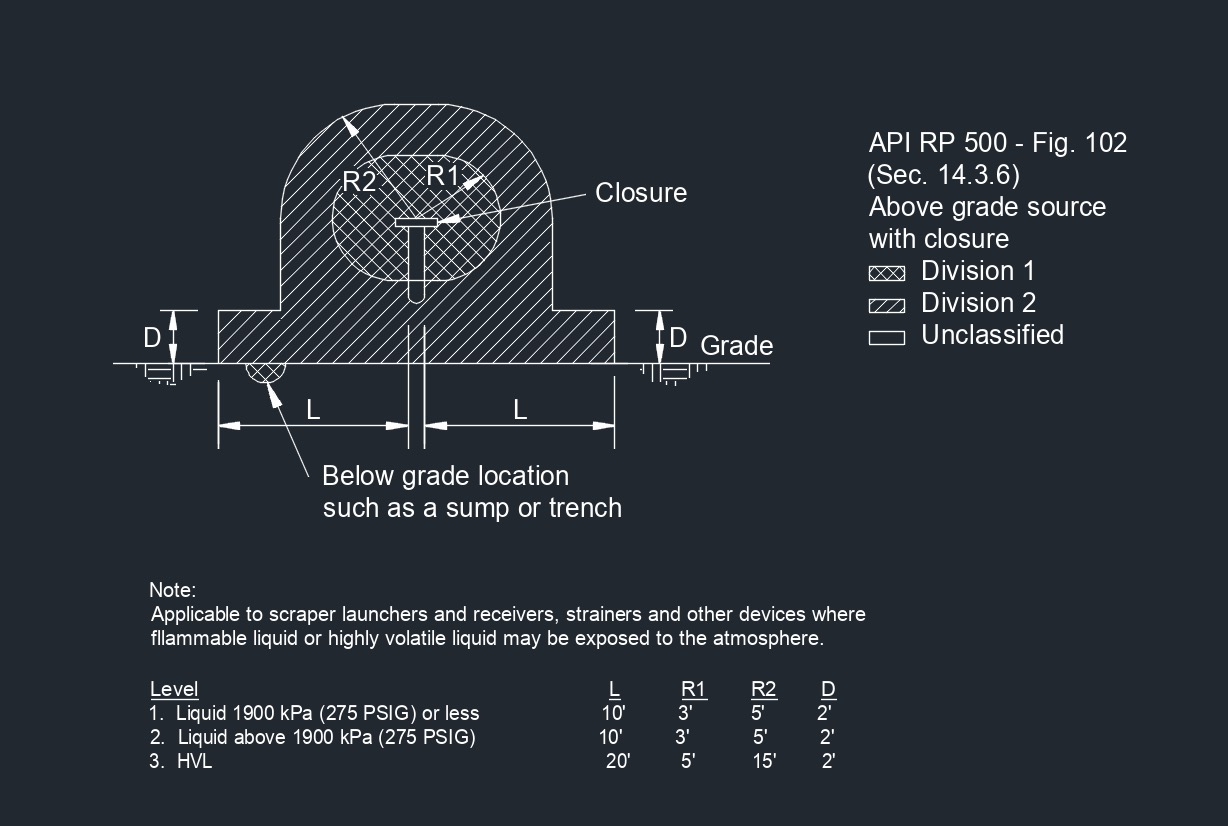

API RP 500, Figure 102

API RP 500 Fig. 102 1



API RP 500, Figure 103

API RP 500 Fig. 103 1

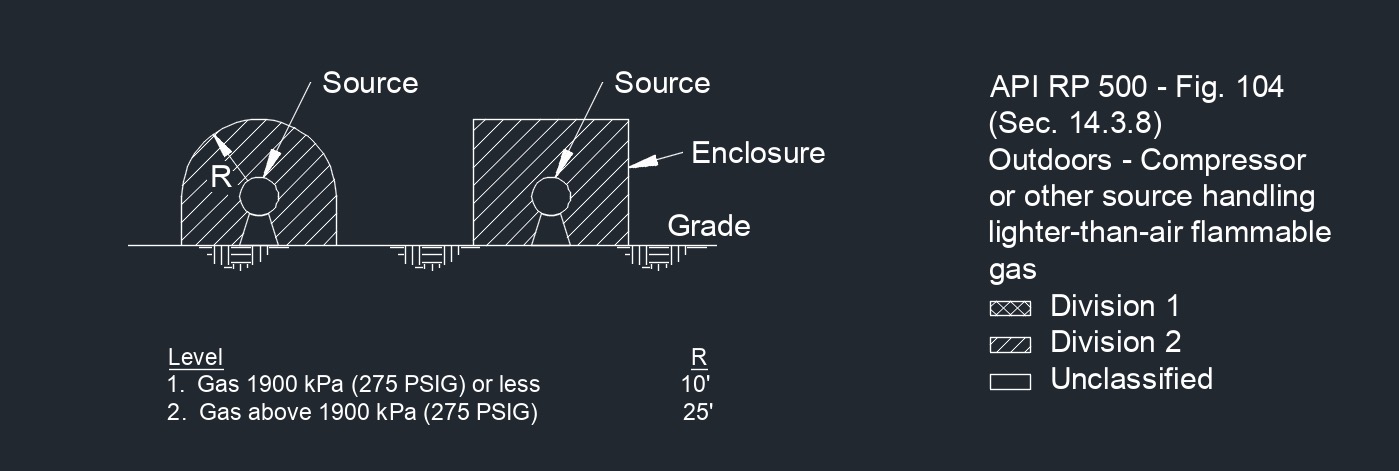

API RP 500, Figure 104

API RP 500 Fig. 104 1

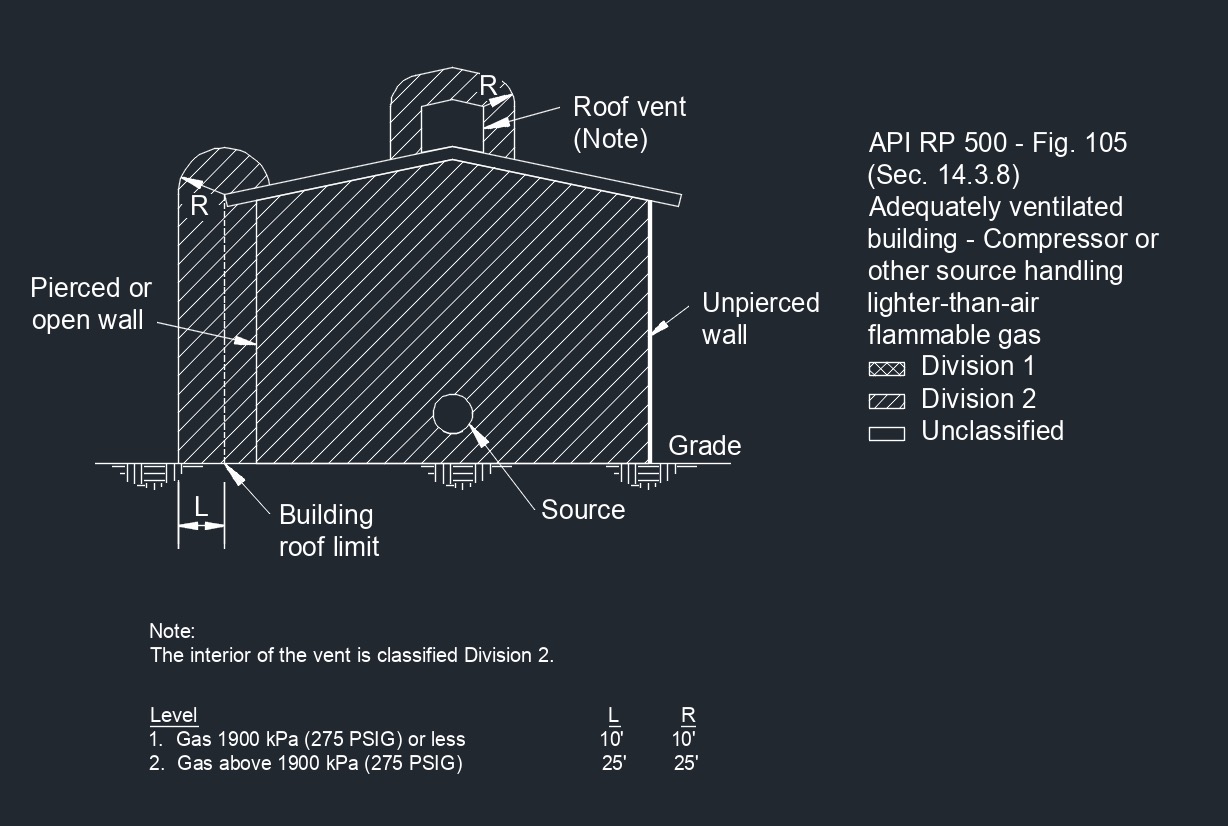

API RP 500, Figure 105

API RP 500 Fig. 105 1



API RP 500, Figure 106

API RP 500 Fig. 106 1
