Right Cone

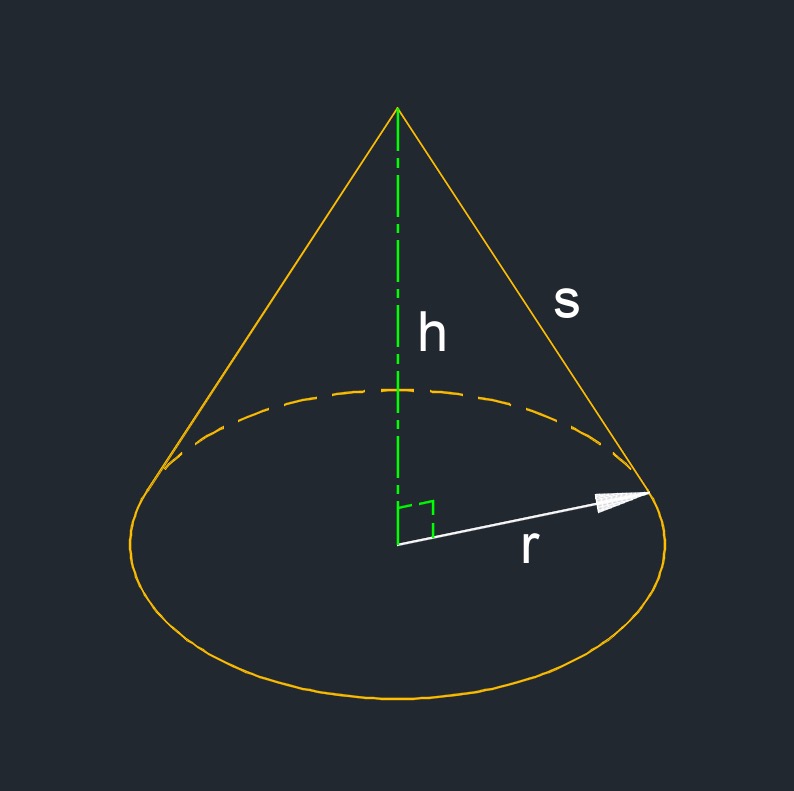

Tags- Right cone (a three-dimensional figure) has a circle base with the apex alligned at 90° above the center of the base.
- 1 base
Right Cone Index
- Height of a Right Cone
- Slant Height of a Right Cone
- Surface Area of a Right Cone
- Volume of a Right Cone
Height of a Right Cone formula |
||
| \(\large{ h = 3\; \frac{V}{\pi \;r^2} }\) | ||
| Symbol | English | Metric |
| \(\large{ h }\) = height | \(\large{ in }\) | \(\large{ mm }\) |
| \(\large{ r }\) = radius | \(\large{ in }\) | \(\large{ mm }\) |
| \(\large{ V }\) = volume | \(\large{ in^3 }\) | \(\large{ mm^3 }\) |
Slant Height of a Right Cone formula |
||
| \(\large{ s = \sqrt {r^2+h^2} }\) | ||
| Symbol | English | Metric |
| \(\large{ s }\) = slant height | \(\large{ in }\) | \(\large{ mm }\) |
| \(\large{ A }\) = area | \(\large{ in^2 }\) | \(\large{ mm^2 }\) |
| \(\large{ h }\) = height | \(\large{ in }\) | \(\large{ mm }\) |
| \(\large{ r }\) = radius | \(\large{ in }\) | \(\large{ mm }\) |
Surface Area of a Right Cone formula |
||
| \(\large{ A_s = \pi\; r\; \left( r + \sqrt { h^2 + r^2 } \right) }\) | ||
| Symbol | English | Metric |
| \(\large{ A_s }\) = surface area | \(\large{ in^2 }\) | \(\large{ mm^2 }\) |
| \(\large{ h }\) = height | \(\large{ in }\) | \(\large{ mm }\) |
| \(\large{ \pi }\) = Pi | \(\large{3.141 592 653 ...}\) | |
| \(\large{ r }\) = radius | \(\large{ in }\) | \(\large{ mm }\) |
Volume of a Right Cone formulas |
||
|
\(\large{ V = \frac {1}{3}\; \pi\; r^2 }\) \(\large{ V = \frac {1}{3} \;b\;h }\) |
||
| Symbol | English | Metric |
| \(\large{ V }\) = volume | \(\large{ in^3 }\) | \(\large{ mm^3 }\) |
| \(\large{ b }\) = base area | \(\large{ in^2 }\) | \(\large{ mm^2 }\) |
| \(\large{ h }\) = height | \(\large{ in }\) | \(\large{ mm }\) |
| \(\large{ \pi }\) = Pi | \(\large{3.141 592 653 ...}\) | |
| \(\large{ r }\) = radius | \(\large{ in }\) | \(\large{ mm }\) |
Tags: Cone
