Weld Neck Flange Drawing - ANSI 2500

Written by Matt Milbury on . Posted in Flange Drawings

Weld Neck Flange Drawing - ANSI 2500

This Drawing Package contains blocks for weld neck flanges that are rated for ANSI Class 2500 Service.  This drawing package contains 44 blocks!

pdfANSI 2500 Weld Neck Flange Drawing Example32.04 KB

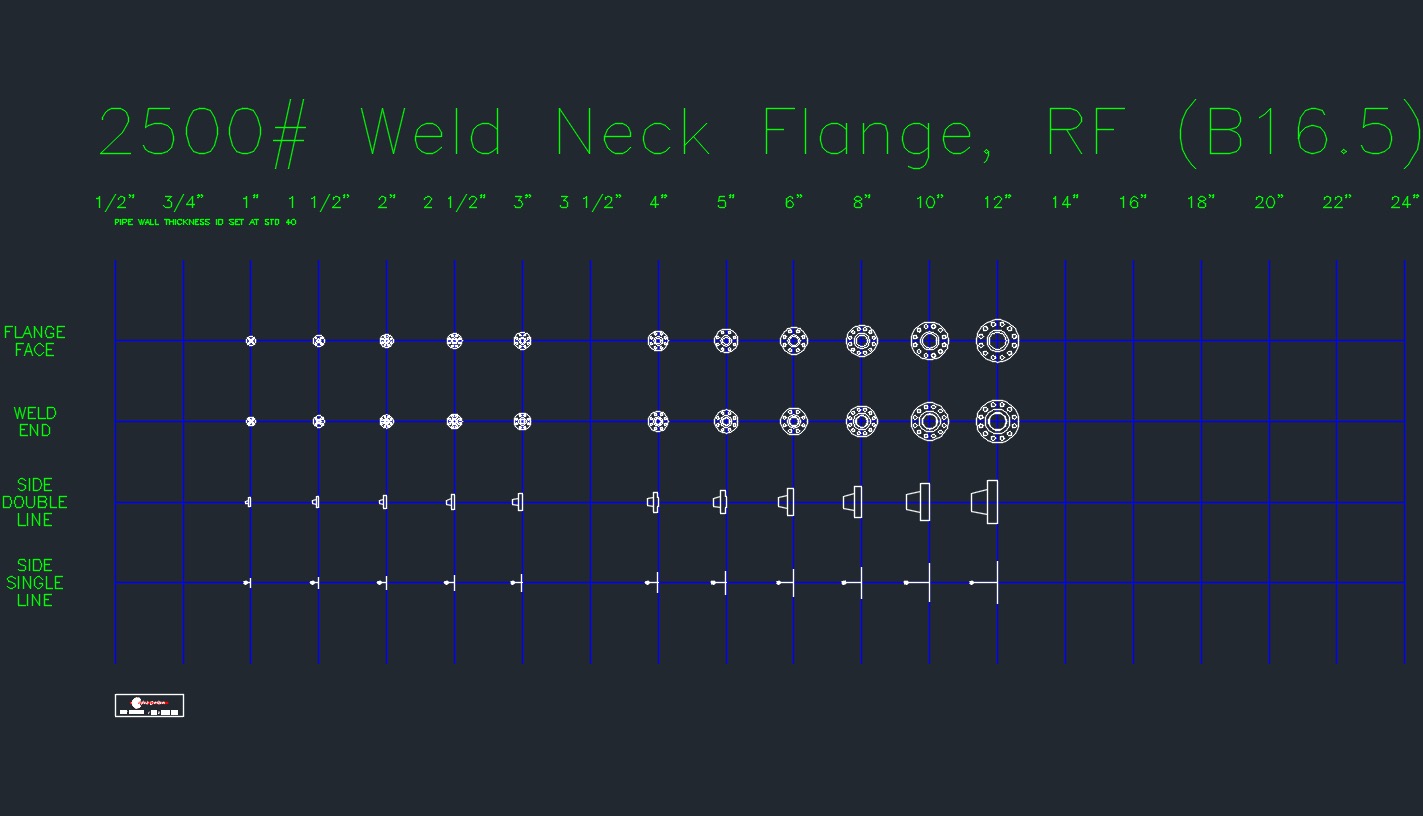

PD Flange WNF b16.5 2500ANSI 2500 Weld Neck Flanges

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes four different views:

  • Fange Face View, 1" - 12"
  • Weld End View, 1" - 12"
  • Side View - Double Line, 1" - 12"
  • Side View - Single Line, 1" - 12"

Note: 3-1/2" not part of this set.

Drawing file will work  in the following formats:

  • AutoCAD 2013/ LT2013
  • AutoCAD 2010/ LT2010
  • AutoCAD 2004/ LT2004

Have questions about when to use these in your design?  Check out our articles or datasheets:
