Dynamic Blocks - Butterfly Valve, High Performance, Lug with WNF
This Drawing Package contains blocks for lug pattern high performance butterfly valves (HPBV) at different ANSI Classes. This drawing package contains nine dynamic blocks with a mix of single line and double line. Some blocks show a lever which can be removed, if needed. The lever is shown for typical sizes that have a lever as opposed to a handwheel which is usually needed for higher pressure and larger diameter applications.
Dynamic Block Lug Pattern High Performance Butterfly Valves with Flanges Example42.5 KB

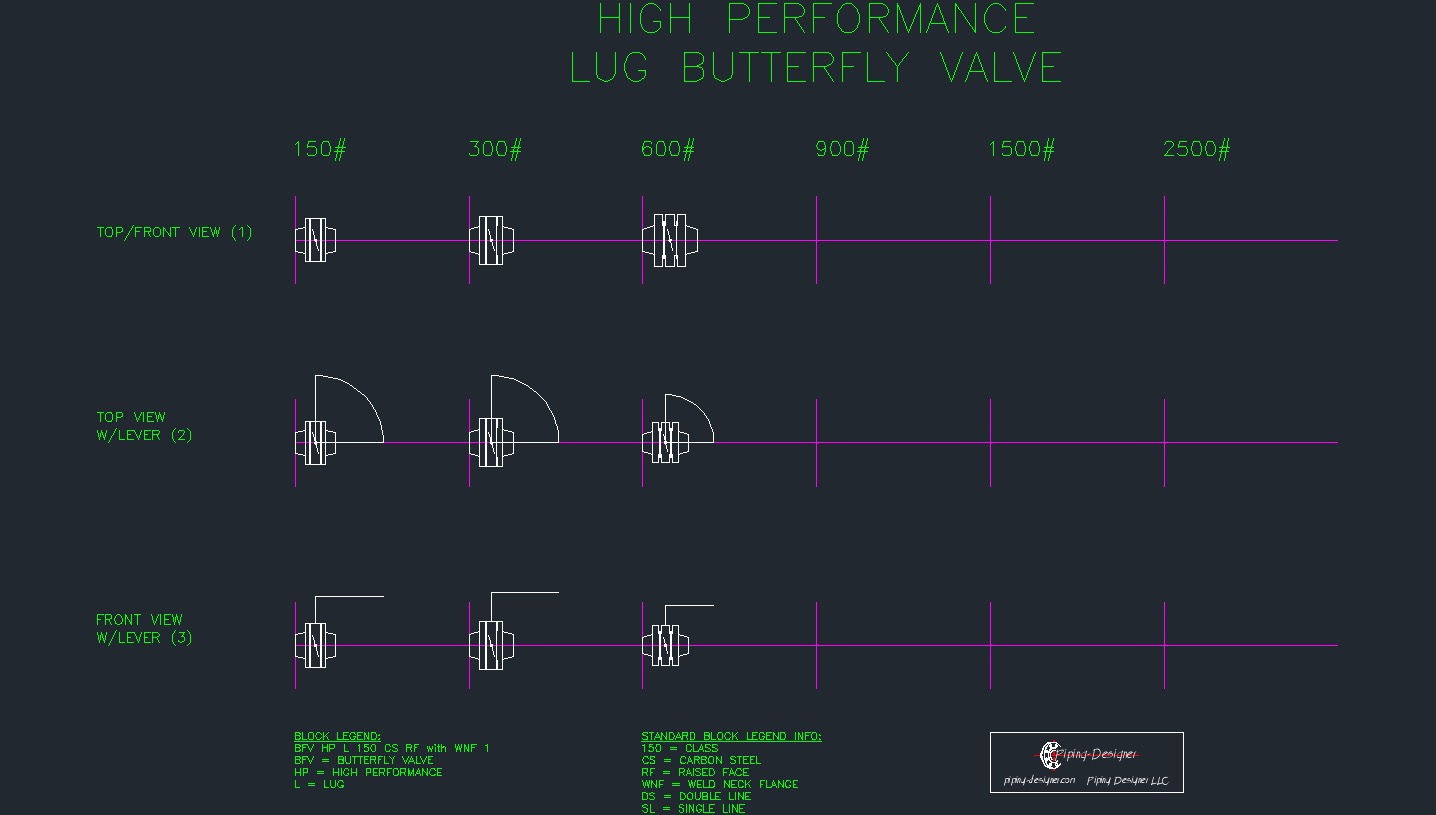

Lugged HPBV with Flanges - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
| Single Line | Double Line | Number of Blocks | |
|---|---|---|---|
| ANSI 150 | 2"-12" | 2"-24" | 19 |
| -w/ lever | 2"-6" | 2"-6" | 16 |
| ANSI 300 | 2"-12" | 2"-24" | 19 |
| -w/ lever | 2"-4" | 2"-4" | 12 |
| ANSI 600 | 2"-12" | 2"-24" | 19 |
| -w/ lever | 2"-3" | 2"-3" | 8 |
| ANSI 900 | - | - | - |
| ANSI 1500 | - | - | - |
| ANSI 2500 | - | - | - |
| Total: | 93 |
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
- Valves - Article
- Plug Valves - Article
- Plug Valves - Datasheets
