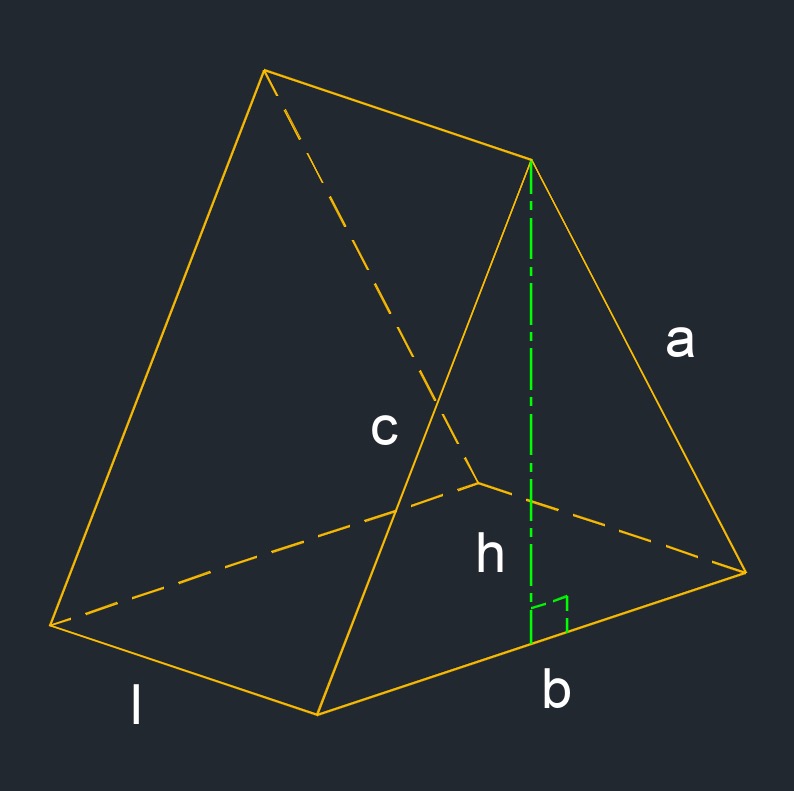

Isosceles triangle wedge (a three-dimensional figure) has three rectangle sides and two isoscelees triangle sides.- 3 rectangles
- 2 isosceles triangles
- 1 base
- 9 edges
- 2 ends
- 2 sides
- 6 vertexs
Height of a Isosceles Triangle Wedge formula |
||
| \( h \;=\; \sqrt{ \dfrac{ 4 \cdot c^2 - b^2 }{ 4 } } \) | ||
| Symbol | English | Metric |
| \(\large{ h }\) = height | \( in \) | \( mm \) |
| \(\large{ a, b, c }\) = edge | \( in \) | \( mm \) |
Surface area of a Isosceles Triangle Wedge formula |
||
| \( A_s \;=\; b \cdot l + 2 \cdot l \cdot c + h \cdot b \) | ||
| Symbol | English | Metric |
| \(\large{ A_s }\) = surface area | \( in^2 \) | \( mm^2 \) |
| \(\large{ a, b, c }\) = edge | \( in \) | \( mm \) |
| \(\large{ h }\) = height | \( in \) | \( mm \) |
| \(\large{ l }\) = length | \( in \) | \( mm \) |
Volume of a Isosceles Triangle Wedge formula |
||
| \( V \;=\; \dfrac{ l \cdot b \cdot h }{ 2 }\) | ||
| Symbol | English | Metric |
| \(\large{ V }\) = volume | \( in^3 \) | \( mm^3 \) |
| \(\large{ a, b, c }\) = edge | \( in \) | \( mm \) |
| \(\large{ h }\) = height | \( in \) | \( mm \) |
