This Isometric Package contains blocks for weldolets. This set also includes, as a bonus, blocks that depict a cross-section of pipe for detail drawings. This drawing package contains 86 blocks!
End of Pipe View Example39.59 KB

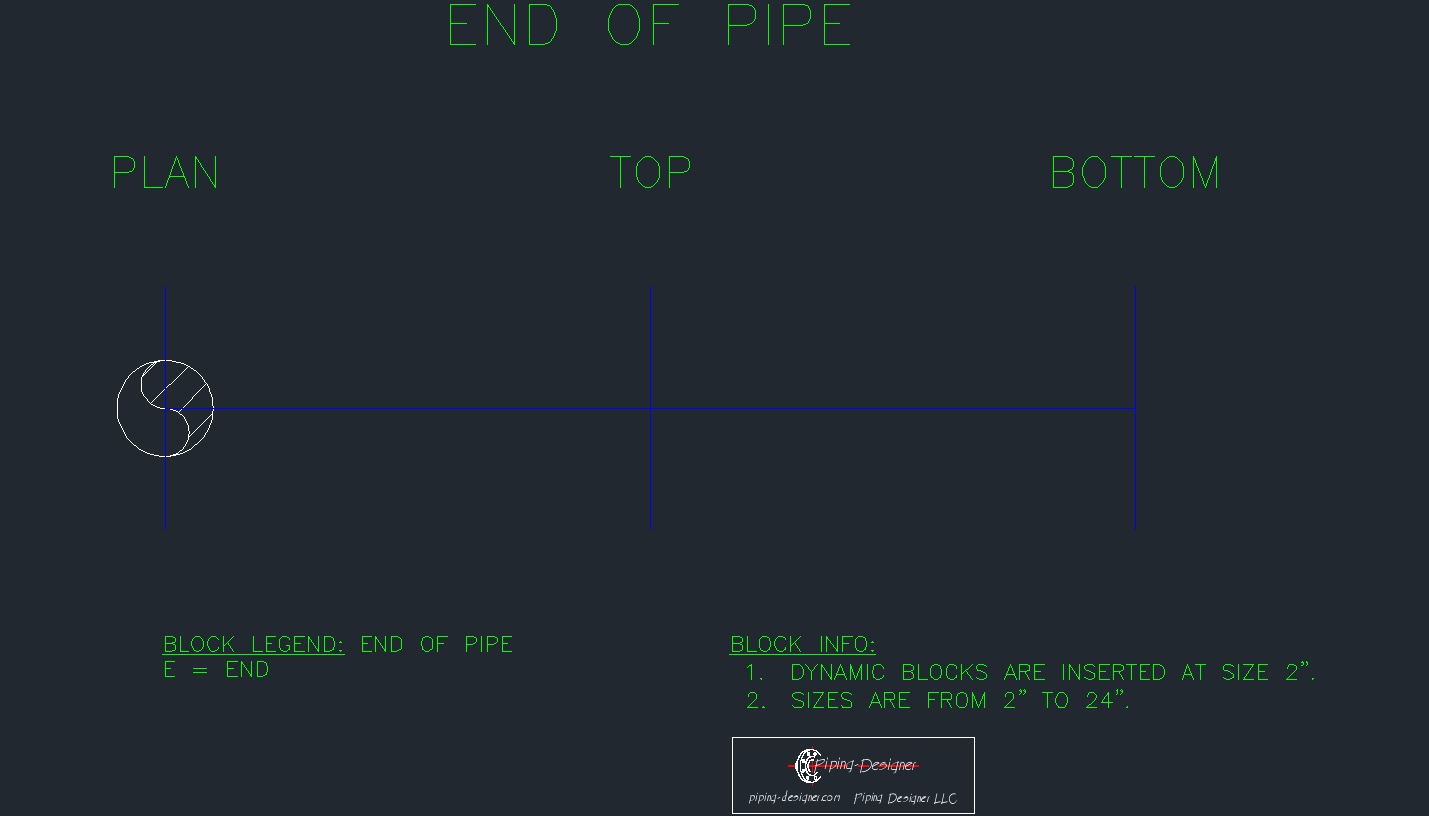

End of Pipe View Drawing

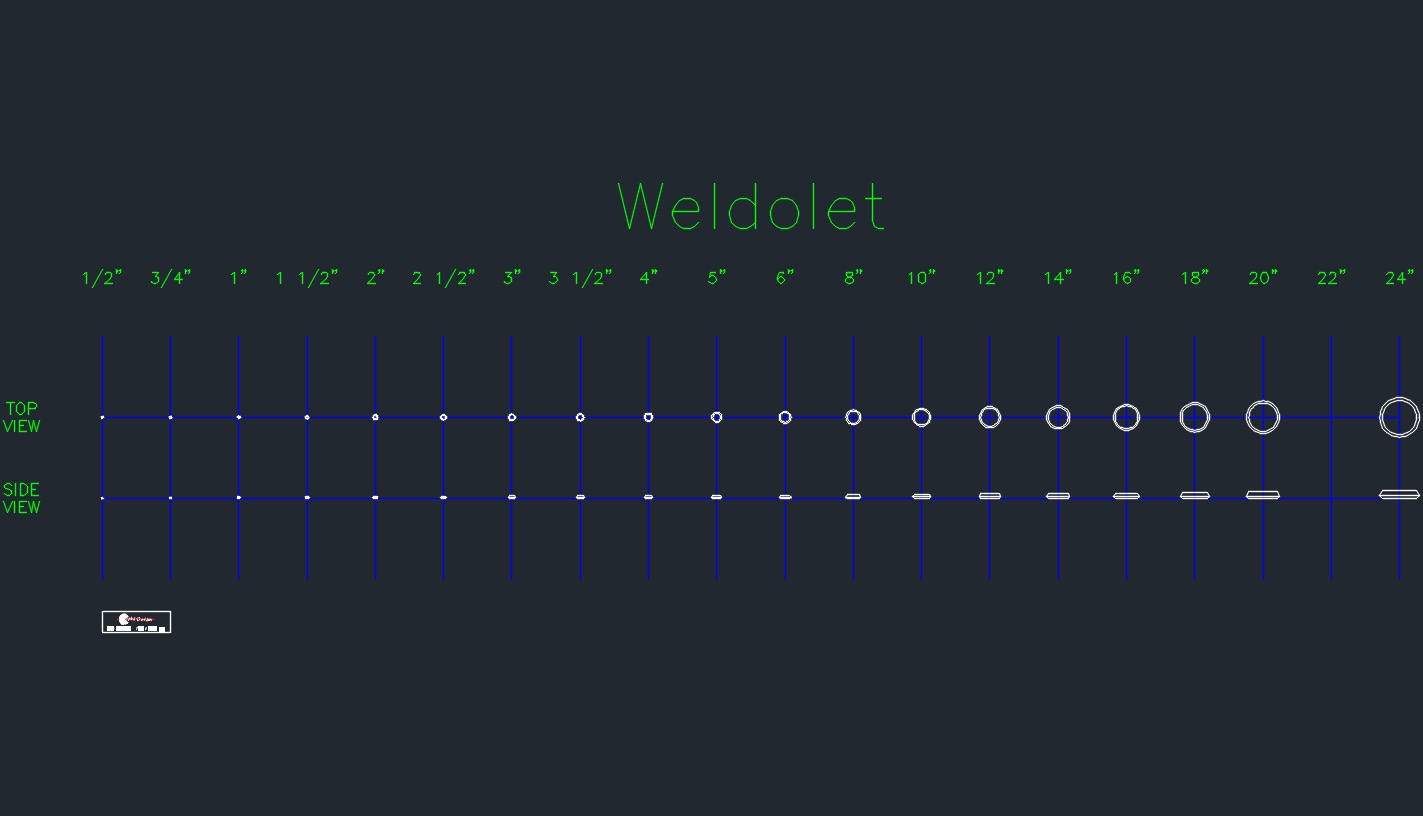

Weldolet Drawing
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes:
- Two different representations of the Pipe End, 2" to 24"
- View looking at the pipe from a 45 degree angle, 2" to 24"
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Have questions about when to use these valves in your design? Check out our articles or datasheets:
Don't forget that Weldolet is a trademarked name registered to Bonney Forge.
$2.99
