This Drawing Package contains blocks for weld neck flanges that are rated for ANSI Class 600 Service. This drawing package contains 66 blocks!
ANSI 600 Weld Neck Flange Drawing Example38.15 KB
ANSI 600 Weld Neck Flanges

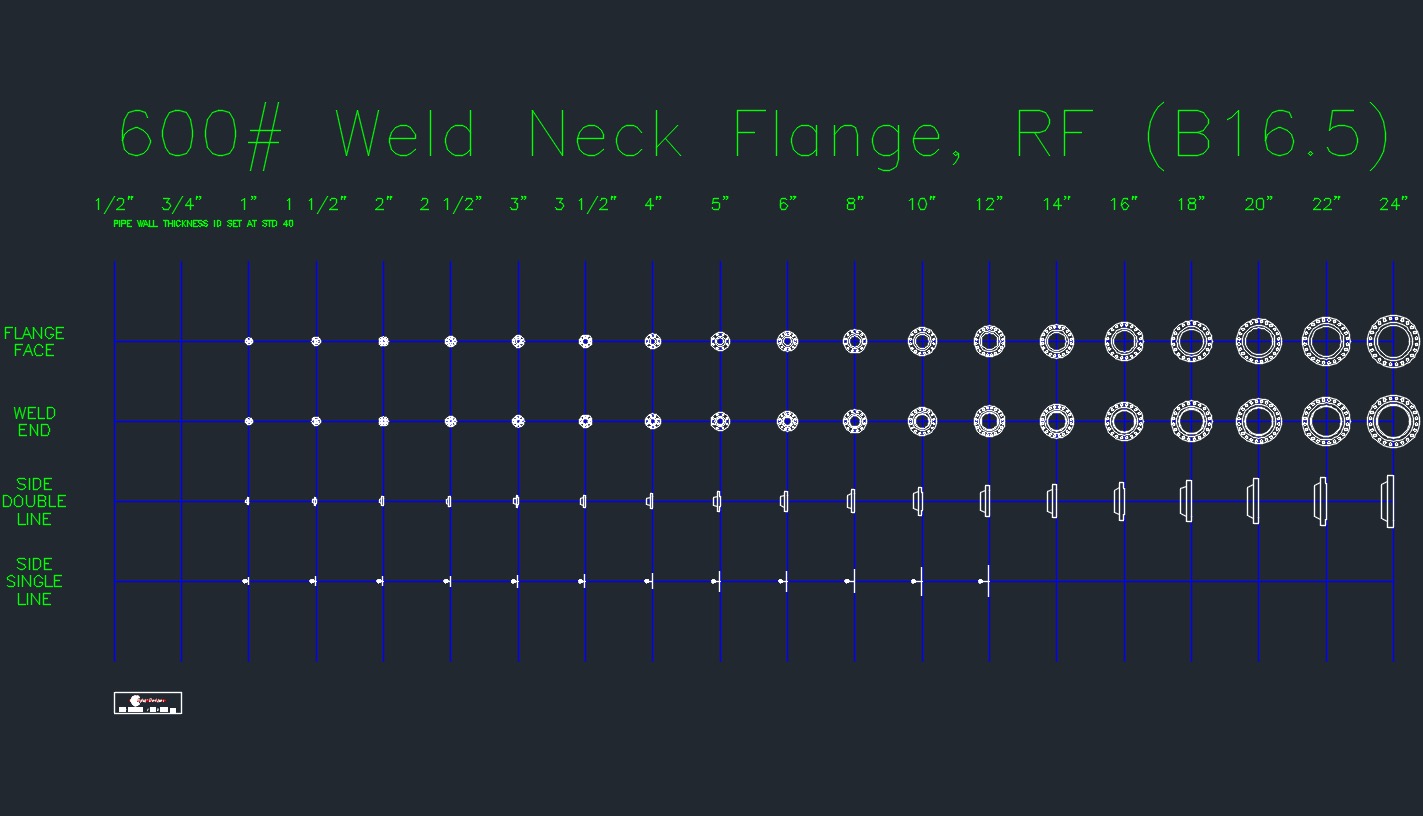

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes four different views:
- Fange Face View, 1" - 24"
- Weld End View, 1" - 24"
- Side View - Double Line, 1" - 24"
- Side View - Single Line, 1" - 12"
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Have questions about when to use these in your design? Check out our articles or datasheets:
- General Flange - Article
- General Flange - Datasheets
- Weld Neck Flanges - Article
- Weld Neck Flanges - Datasheets
$5.99
