This Drawing Package contains blocks for weld neck flanges that are rated for ANSI Class 300 Service. This package includes a flange pair with a gasket between mating flanges. This drawing package contains 29 blocks!

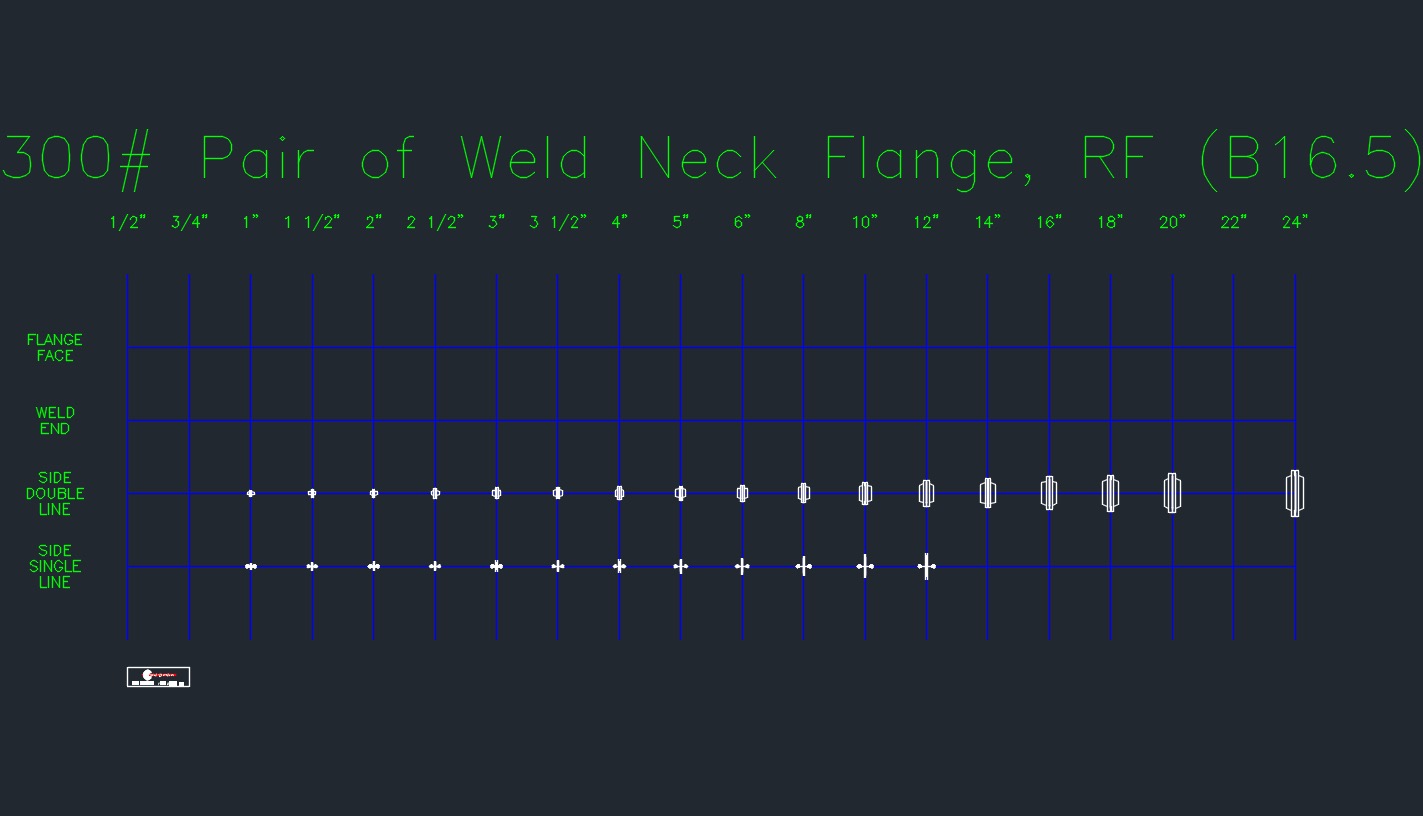

ANSI 300 Weld Neck Flange Pair Drawing Example31 KB
ANSI 300 Weld Neck Flange Pair
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes four different views:
- Side View - Double Line, 1" - 20", 24"
- Side View - Single Line, 1" - 12"
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Have questions about when to use these in your design? Check out our articles or datasheets:
- General Flange - Article
- General Flange - Datasheets
- Weld Neck Flanges - Article
- Weld Neck Flanges - Datasheets
$5.99
