This Isometric Package contains flanges and spectacle blind blocks. This drawing package contains 98 blocks!
Spectacle Blind Block Example179.43 KB
Isometric Example
Isometric Example
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes:

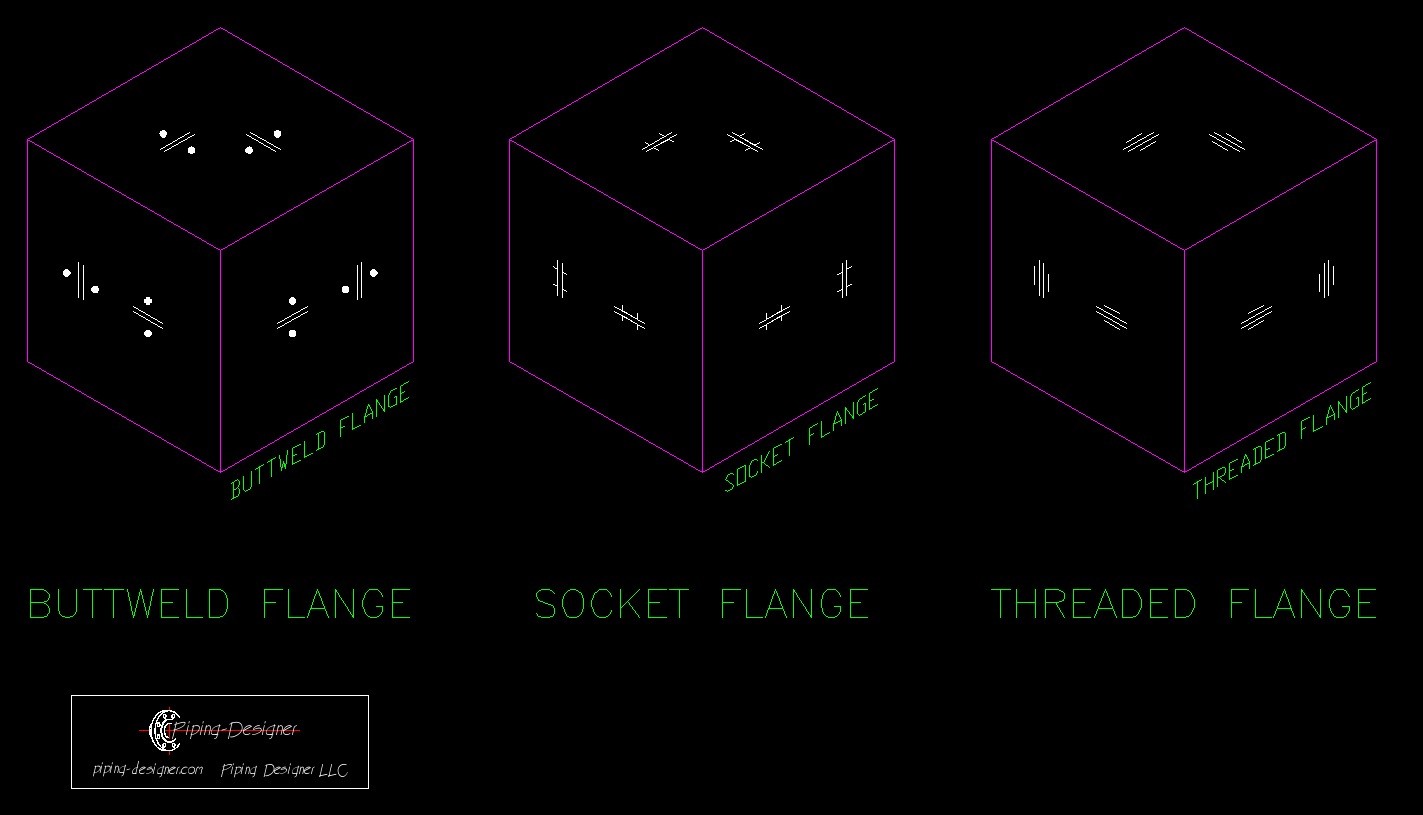

- Flange Blocks:
- Buttweld Flange
- Socket Flange
- Threaded Flange

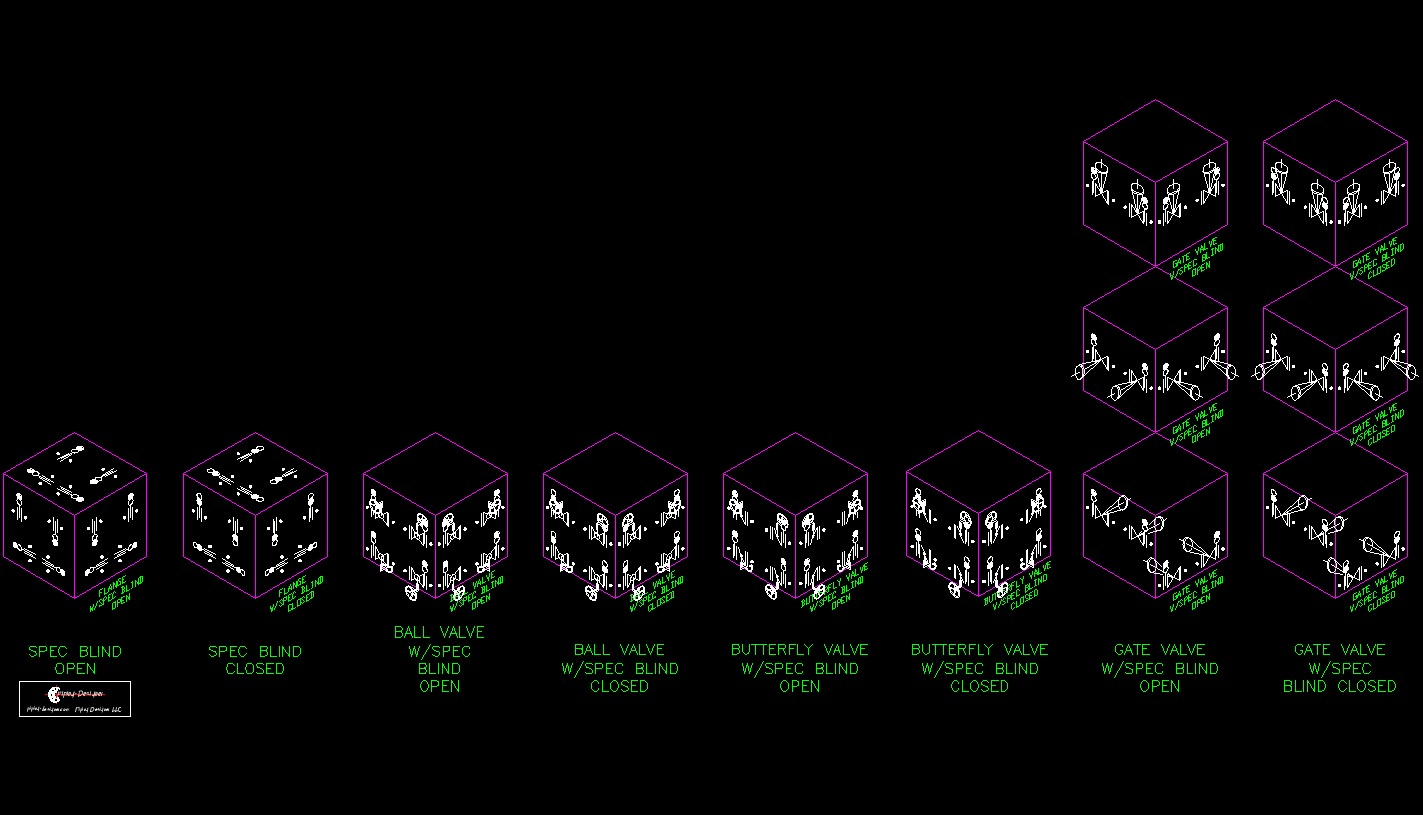

- Spectacle Blind Blocks:
- Spectacle Blind (open & closed)
- Ball Valve w/ Spec Blind (open & closed)
- Butterfly Valve w/ Spec Blind (open & closed)
- Gate Valve w/ Spec Blind (open & closed)
- Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
View more information about Flanges or view Flange Datasheets
View more information about Spectacle Blinds or Spectacle Blind Datasheets.
$4.99
