This Isometric Package contains blocks for valves that are regularlly used in process piping. This drawing package contains 100 blocks!
Isometric Text and Dimenions Example52.76 KB
Pipe Slope Text Example65.43 KB
Arrow Isometric

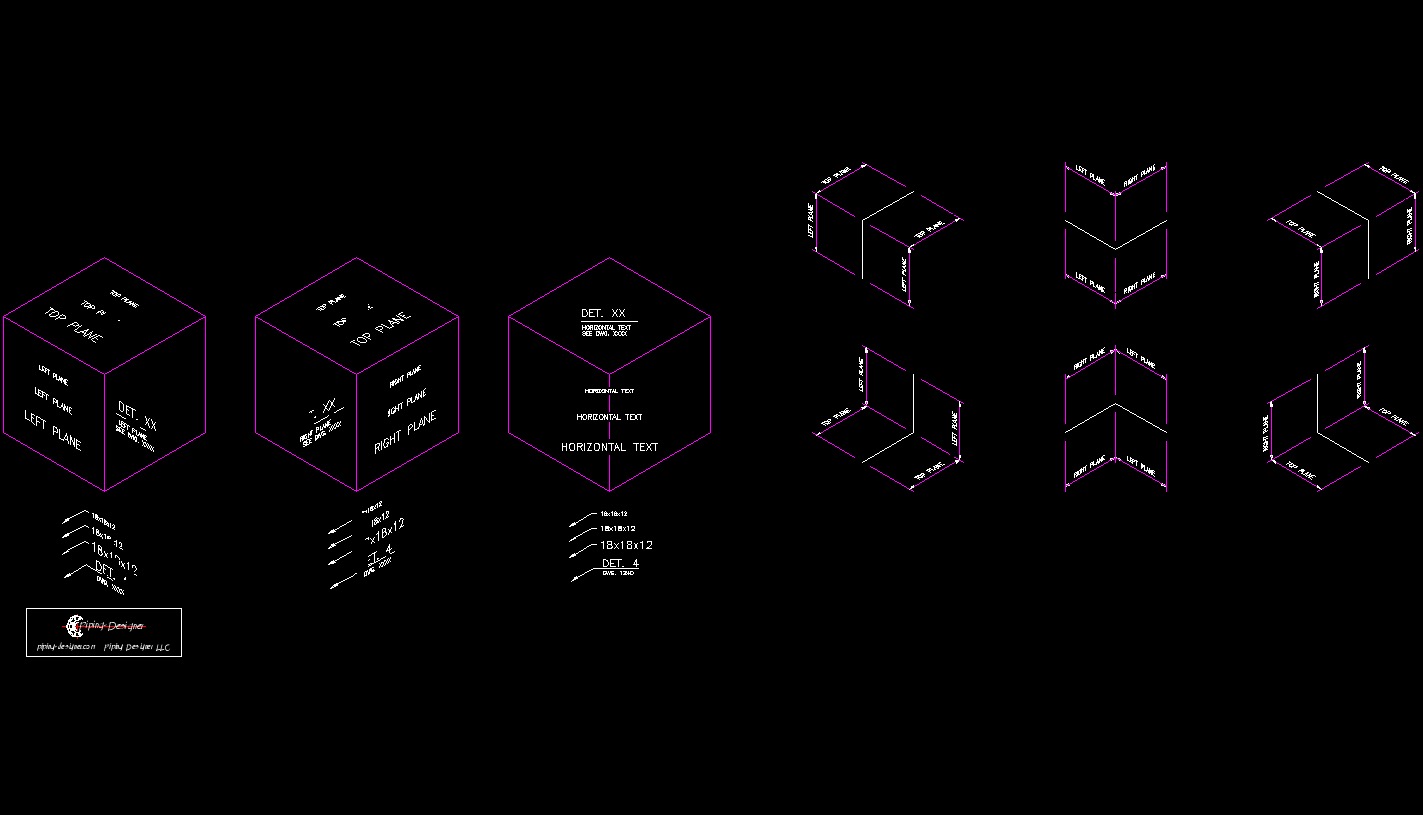

Text & Dimensions Isometric
Pipe Slope Isometric
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes:
- Arrow Blocks
- North Arrow
- Flow Arrow
- Dimension Arrow
- Text and Dimensions
- Pipe Slope
- 90 Degree Slope
- 45 Degree Slope
- Miscellaneous Slope
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
$3.99
