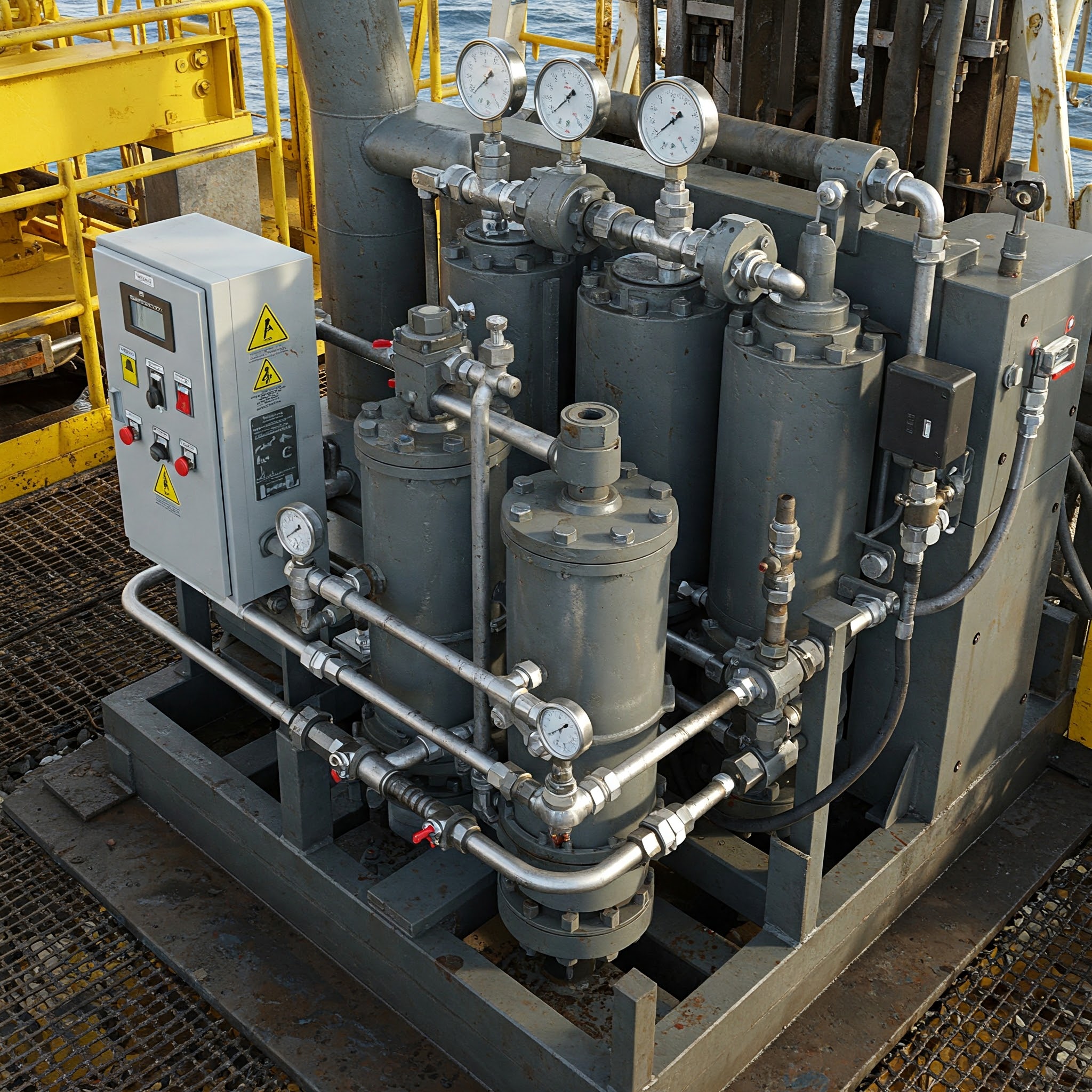

Accumulator is a critical component in oil and gas drilling operations, particularly in blowout preventer (BOP) systems. It is a pressurized device used to store hydraulic energy and deliver it quickly when needed to operate the BOP and other associated equipment. It uses compressed gas (typically nitrogen) to apply pressure to the hydraulic fluid, which can then be quickly released when needed. The accumulator ensures the system can function effectively, even during emergencies or power failures, to prevent blowouts and maintain well control.
In more technical terms, an accumulator is a pressure storage reservoir that holds hydraulic fluid under pressure, usually with a gas (like nitrogen) separated from the fluid by a diaphragm, bladder, or piston. In petroleum applications, it’s commonly used in blowout preventers (BOPs) during drilling operations to provide a rapid response to control well pressure, or in production systems to smooth out pressure fluctuations.
Accumulator Types
Bladder Accumulator - It contains a flexible rubber bladder inside a metal casing. The bladder separates the gas from the hydraulic fluid. When fluid enters, the bladder compresses the gas.
Piston Accumulator - It uses a piston to separate the gas and fluid chambers. The piston moves as fluid enters or exits the chamber, compressing or decompressing the gas.
Diaphragm Accumulator - Similar to a bladder type but uses a diaphragm to separate gas and fluid. The diaphragm flexes as the fluid enters and compresses the gas.
Key Features and Components
Pressure Storage - It uses a combination of hydraulic fluid and compressed gas (usually nitrogen) to maintain energy. The gas provides the force to pressurize the fluid.
Hydraulic Fluid Reservoir - Stores and supplies hydraulic fluid under pressure to activate the BOP.
Nitrogen Chamber - Provides the compressive force needed to maintain the hydraulic fluid under high pressure.
Accumulator Bottles - Cylindrical containers where the hydraulic fluid and nitrogen are stored. Multiple bottles are typically used to ensure adequate energy storage.
Control System - Regulates the release of hydraulic fluid to operate the BOP valves and rams.
Functions in Drilling
Actuate BOP Equipment - Provides the hydraulic force necessary to close the BOP, seal the well, and cut through the drill pipe if required.
Emergency Backup - Ensures the system remains operational during power outages or pump failures.
Quick Response - Delivers stored hydraulic energy rapidly to control wellbore pressure and prevent blowouts.
