Square Machine Screw Nut (in)
Standards
- ASME Standards
- ASME B18.2.2 - Square and Hex Nuts
Square Machine Screw Nut (in) Datasheet

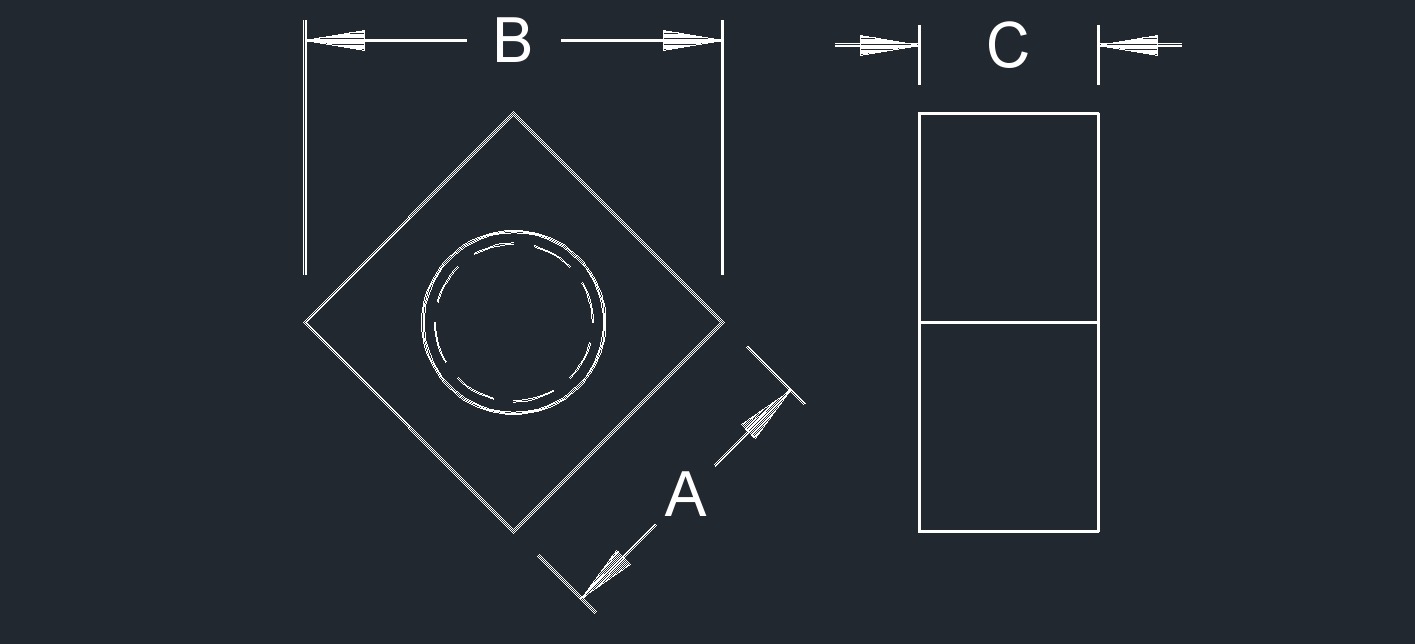

| Bolt
Size | Width Across Flat
A | Width Across Corner
B | Thickness
C | ||||
|---|---|---|---|---|---|---|---|
| Basic | Max | Min | Max | Min | Max | Min | |
| #0 | 5/32 | 0.156 | 0.150 | 0.221 | 0.206 | 0.050 | 0.043 |
| #1 | 5/32 | 0.156 | 0.150 | 0.221 | 0.206 | 0.050 | 0.043 |
| #2 | 3/16 | 0.188 | 0.180 | 0.265 | 0.247 | 0.066 | 0.057 |
| #3 | 3/16 | 0.188 | 0.180 | 0.265 | 0.247 | 0.066 | 0.057 |
| #4 | 1/4 | 0.250 | 0.241 | 0.354 | 0.331 | 0.098 | 0.087 |
| #5 | 5/16 | 0.312 | 0.302 | 0.442 | 0.415 | 0.114 | 0.102 |
| #6 | 5/16 | 0.312 | 0.302 | 0.442 | 0.415 | 0.114 | 0.102 |
| #8 | 11/32 | 0.344 | 0.332 | 0.486 | 0.456 | 0.130 | 0.117 |
| #10 | 3/8 | 0.375 | 0.362 | 0.530 | 0.497 | 0.130 | 0.117 |
| #12 | 7/16 | 0.438 | 0.423 | 0.619 | 0.581 | 0.161 | 0.148 |
| 1/4 | 7/16 | 0.438 | 0.423 | 0.619 | 0.581 | 0.193 | 0.178 |
| 5/16 | 9/16 | 0.562 | 0.545 | 0.795 | 0.748 | 0.225 | 0.208 |
| 3/8 | 5/8 | 0.625 | 0.607 | 0.884 | 0.833 | 0.257 | 0.239 |
