Flanged Bends and Tees with Base - AWWA C110, DI (in)

on . Posted in Ductile Iron Flanged Fitting Datasheets



data fitting base flg di

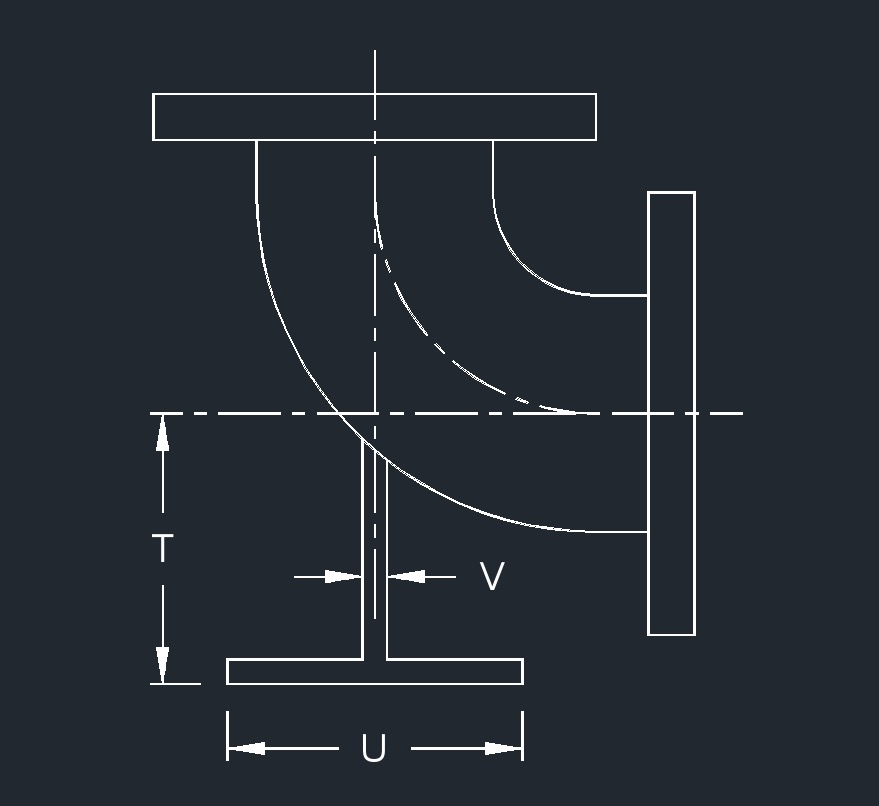

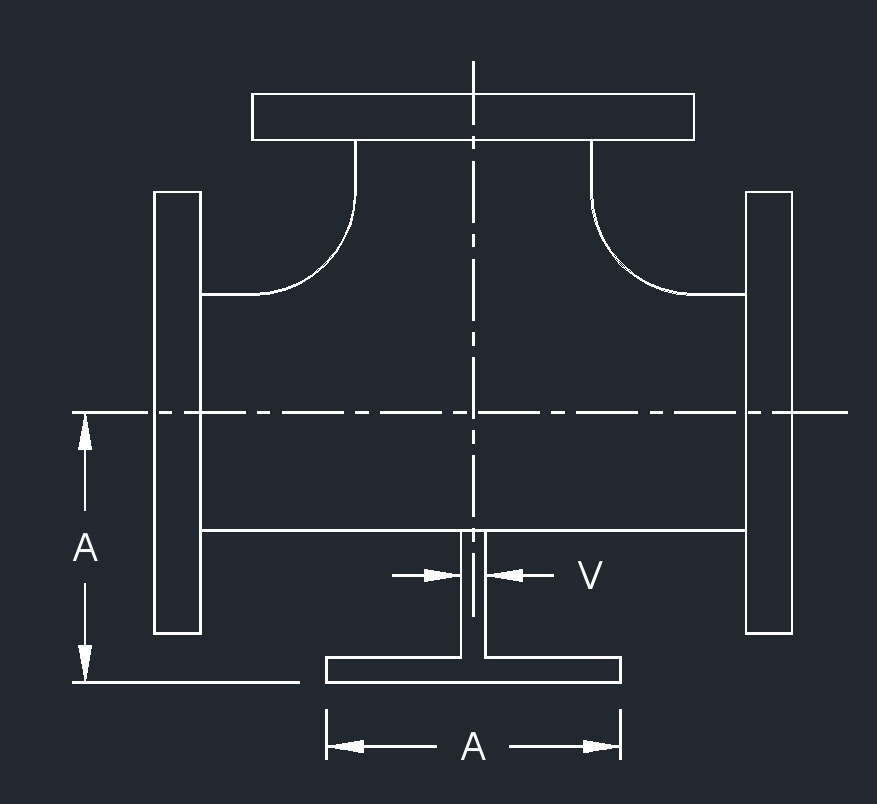

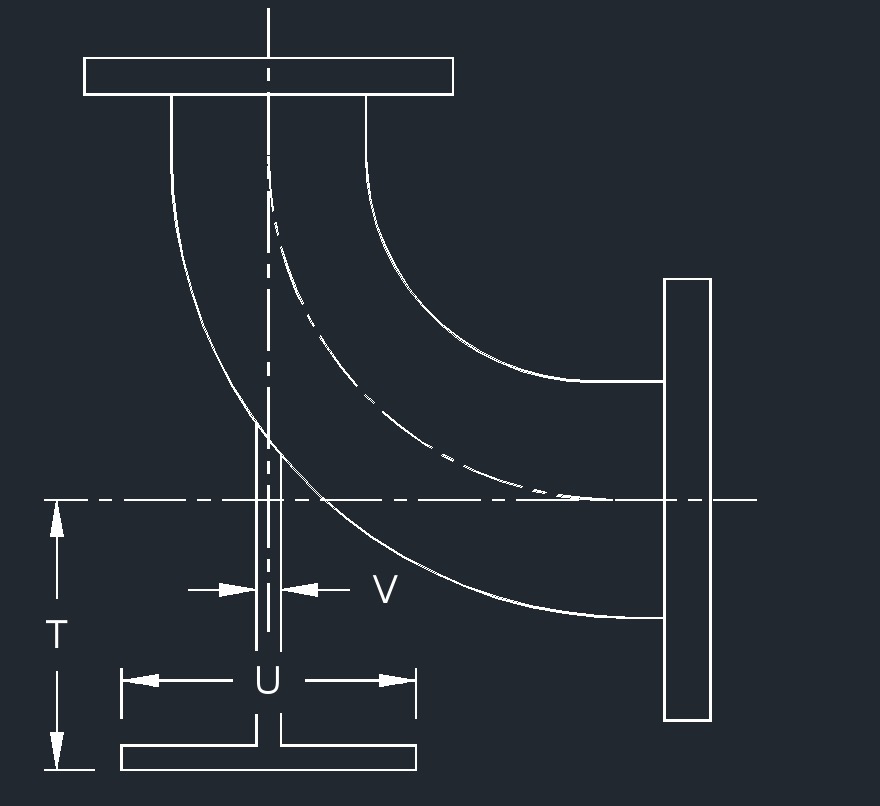

Ductile Iron 90 Elbow Base*  Base under benddata fitting base flg 2 di*  Base under long radius bend Tee BaseTee Base



















Flanged Bends and Tees with Base - AWWA C110, DI (in)

  • *  Flanged fitting base for bends are not included in AWWA C110/A21.10
  • For flange dimensions see Flange - ANSI Class 125, C110, DI
  • These fittings are not included in ANSI/AWWA C110/A21.10 - Ductile-Iron and Gray-Iron Fittings (3" to 48")
Pipe SizeTUVApprox. Weight (lb)
90°LR 90°Tee
3 4.88 5.00 0.50 38 41 47
4 5.50 6.00 0.50 50 60 75
6 7.00 7.00 0.62 85 100 115
8 8.38 9.00 0.88 145 180 195
10 9.75 9.00 0.88 210 315 315
12 11.25 11.00 1.00 300 430 450
14 12.50 11.00 1.00 400 580 570
16 13.75 11.00 1.00 505 740 710
18 15.00 13.50 1.12 645 - 900
20 16.00 13.50 1.12 805 - 1125
24 18.50 13.50 1.12 1215 - 1930
30 23.00 16.00 1.15 1945 - -
36 26.00 16.00 1.15 2395 2895 -


data fitting base flg 4 di*  Base under small end reducing bend
data fitting base flg 5 di*  Base under large end reducing bend

















Flanged Bends and Tees with Base - AWWA C110, DI (in)

  • *  Flanged fitting base for bends are not included in AWWA C110/A21.10
  • For flange dimensions see Flange - ANSI Class 125, C110, DI
  • These fittings are not included in ANSI/AWWA C110/A21.10 - Ductile-Iron and Gray-Iron Fittings (3" to 48")
 Pipe SizeTUVApprox. Weight (lb)
4 x 3 5.50 6 0.50 45
6 x 4 7.00 7 0.62 75
8 x 4 8.38 9 0.88 120
8 x 6 8.38 9 0.88 135
10 x 6 9.75 9 0.88 175
10 x 8 9.75 9 0.88 185
12 x 6 11.25 11 1.00 230
12 x 8 11.25 11 1.00 255
12 x 10 11.25 11 1.00 285



data fitting base flg 6 diBase drilling detail


















Base Bolt Drilling

Pipe SizeBolt CircleBolt Hole Dia.No. of Bolt Holes
3 3.88 5/8 4
4 4.75 3/4 4
6 5.50 3/4 4
8 7.50 3/4 4
10 7.50 3/4 4
12 9.50 7/8 4
14 9.50 7/8 4
16 9.50 7/8 4
18 11.75 7/8 4
20 11.75 7/8 4
24 11.75 7/8 4
30 14.25 1 4
36 17.00 1 4
42 21.25 1 1/4 4
48 22.75 1 1/4 4
