Clamping Force

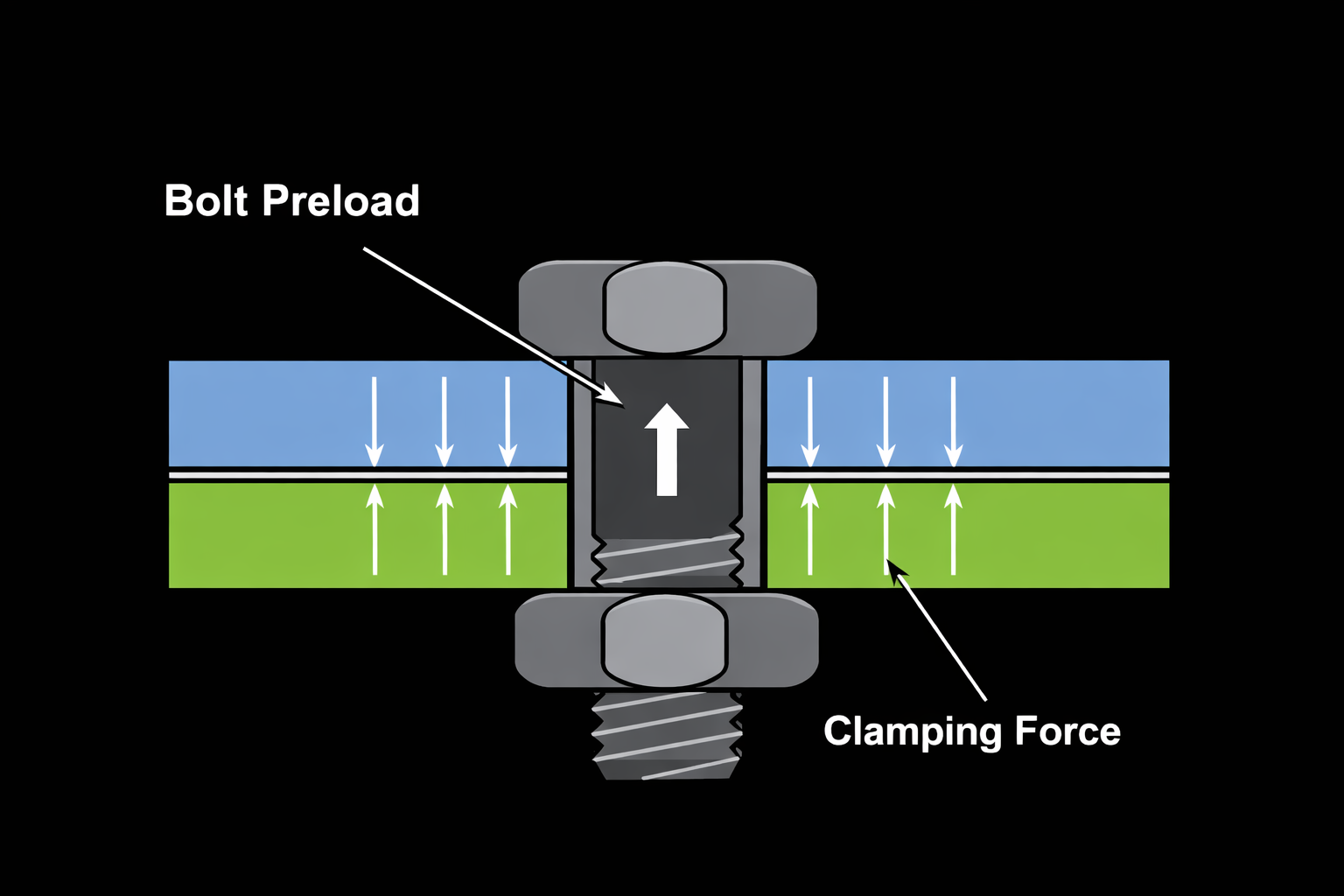

Clamping force is the force applied to hold two or more objects together in a fixed position, typically by using mechanical means like clamps, bolts, or other fastening devices.  This force is used in a wide range of applications, particularly in manufacturing, automotive assembly, and tooling, to ensure that parts stay securely in place while undergoing machining, assembly, or other operations.  The magnitude of the clamping force can affect the stability, accuracy, and safety of a process.  Achieving the right clamping force is critical to avoid damage to components or insufficient holding strength, which could lead to product failure.

Factors that Influence Clamping Force

Tightening torque (for bolts or fasteners)
Friction between the surfaces in contact
Material properties (such as elasticity and strength)
Geometry of the clamped parts



Clamping Force Formula
\( F \;=\;  \tau \;/\; K \; d  \)     (Clamping Force) \( \tau \;=\;  F \; K \; d  \) \( K \;=\;  \tau \;/\; F \; d  \) \( d \;=\;  \tau \;/\; F \; K  \)
Symbol	English	Metric
\( F \) = Reaction Force	\(lbm\)	\(kg\)
\( \tau \)  (Greek symbol tau) = Torque	\(lbf-ft\)	\(N-m\)
\( K \) = Friction of Bolt Contact	\(lbf\)	\(N\)
\( d \) = Bolt Diameter	\(in\)	\(mm\)
