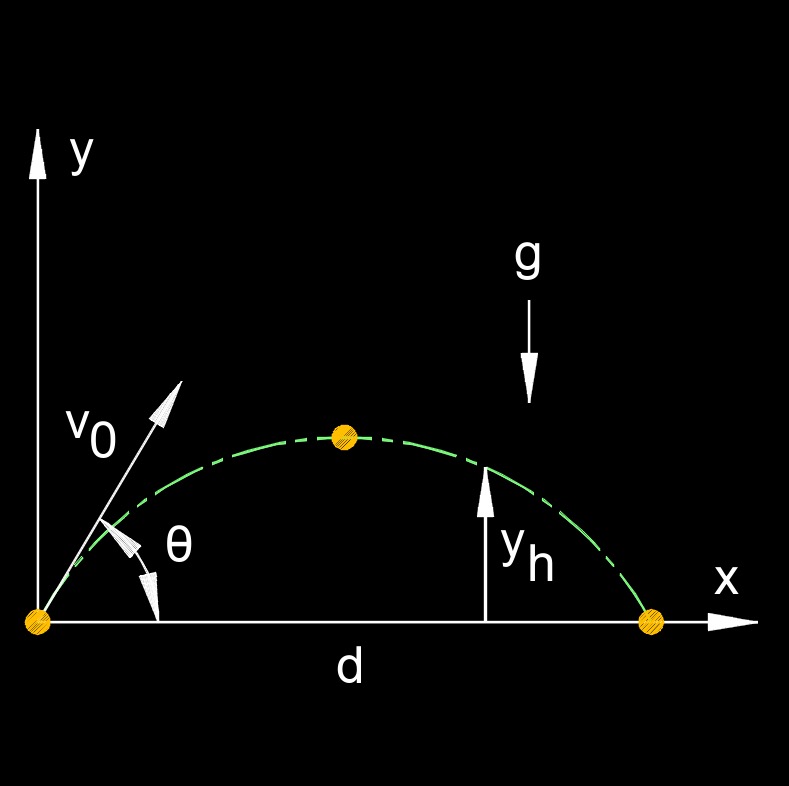

Projectile Clearing an Object Formula |
||
| \( y_h \;=\; \dfrac{ d \cdot v_{0y} }{ v_{0x} } - \left( \dfrac{1}{2} \cdot g \cdot \dfrac{ x^2}{v_{0x}^2 } \right) \) | ||
| Symbol | English | Metric |
| \( y_h \) = vertical position | \( ft \) | \( m \) |
| \( d \) = horizontal position | \( ft \) | \( m \) |
| \( v_0 \) = launch velocity | \(ft\;/\;sec\) | \(m\;/\;s\) |
| \( g \) = gravitational acceleration | \(ft\;/\;sec^2\) | \(m\;/\;s^2\) |
| \( \theta \) = angle of the initial vertical from x-axis | \( deg \) | \( rad \) |
