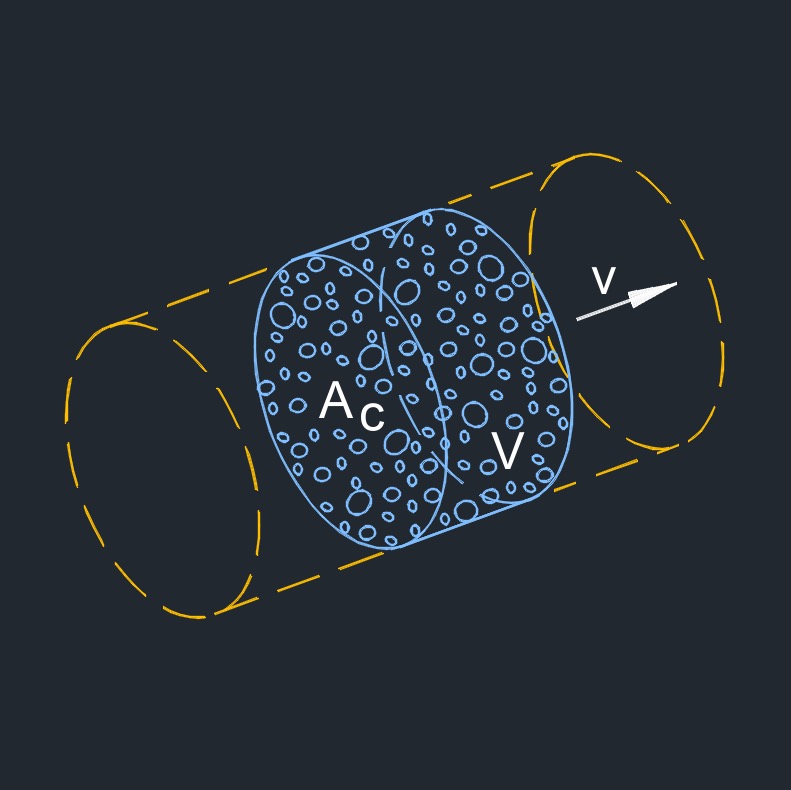

Steam velocity through piping is the speed at which steam travels through a pipe. It's a crucial factor in designing steam systems because excessive velocity can cause several issues like erosion, water hammer, and increased energy consumption. The ideal steam velocity depends on various factors such as pipe size, pressure, temperature, and the type of steam application. Generally, steam velocities are kept within a certain range to ensure efficient and safe operation
Steam Velocity through Piping formula |
||
|
\( v_s \;=\; \dfrac{ Q_s \cdot \upsilon }{ 3600 \cdot \pi \cdot \left( \dfrac{d}{24 } \right)^2 }\) (Steam Velocity Through Piping) \( Q_s \;=\; \dfrac{ 3600 \cdot \pi \cdot v_s \cdot \left( \dfrac{d}{24 } \right)^2 }{ \upsilon } \) \( \upsilon \;=\; \dfrac{ 3600 \cdot \pi \cdot v_s \cdot \left( \dfrac{d}{24 } \right)^2 }{ Q_s } \) \( d \;=\; 24 \cdot \sqrt{ \dfrac{ Q_s \cdot \upsilon }{ 3600 \cdot \pi \cdot v_s } } \) |
||
| Symbol | English | Metric |
| \( v_s \) = Steam Velocity | \(ft\;/\;sec\) | - |
| \( Q_s \) = Steam Flow Rate | \(lb\;/\;hr\) | - |
| \( \upsilon \) (Greek symbol upsilon) = Steam Specific Volume | \(ft^3\;/\;lbm\) | - |
| \( \pi \) = Pi | \(3.141 592 653 ...\) | - |
| \( d \) = Pipe Inside Diameter | \( in \) | - |
Steam velocity is an important piping design parameter because excessively high velocity can produce large pressure losses, noise, vibration, erosion, and water hammer related problems, particularly in wet steam or condensate containing systems. Excessively low velocity can also be undesirable in some applications because it can require unnecessarily large pipe sizes and may affect system economics. The appropriate design velocity depends on factors such as steam pressure, steam temperature, steam quality, pipe size, pressure drop limitations, service type, noise requirements, and whether the steam is saturated or superheated. Because steam is compressible, its volumetric flow rate and therefore its velocity changes as pressure and temperature change along the piping system.
