This Drawing Package contains end of pipe blocks. This drawing package contains one dynamic block. Each dynamic block contains 24 blocks.
Dynamic Block End of Pipe Example32.77 KB20/08/2017

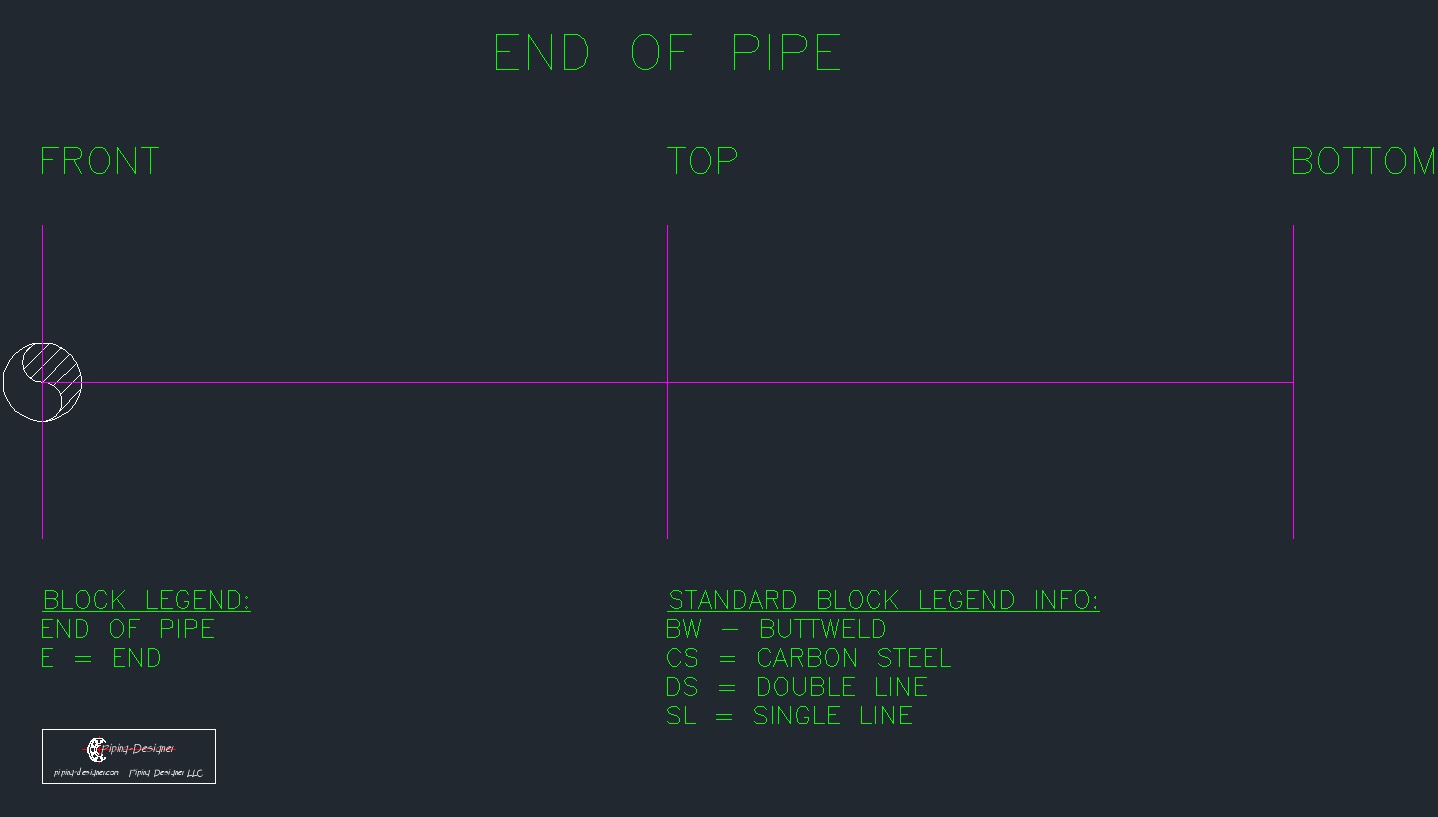

End of Pipe - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
| Total # of Blocks | Single Line | Double Line | Total | |
|---|---|---|---|---|
| End View | 24 | 2"-12" | 2"-24" | 24 |
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
- Fittings - Article
- Buttweld Fittings - Article
- Buttweld Fitting Dimensions - Datasheets
$2.99
