This Drawing Package contains dynamic blocks for the top view and side view of an O'let (weldolet) This drawing package contains one dynamic block. Each dynamic block contains 36 blocks.
Dynamic Block Olet Example33.22 KB20/08/2017
Weldolet (O'let) - Dynamic AutoCAD Blocks

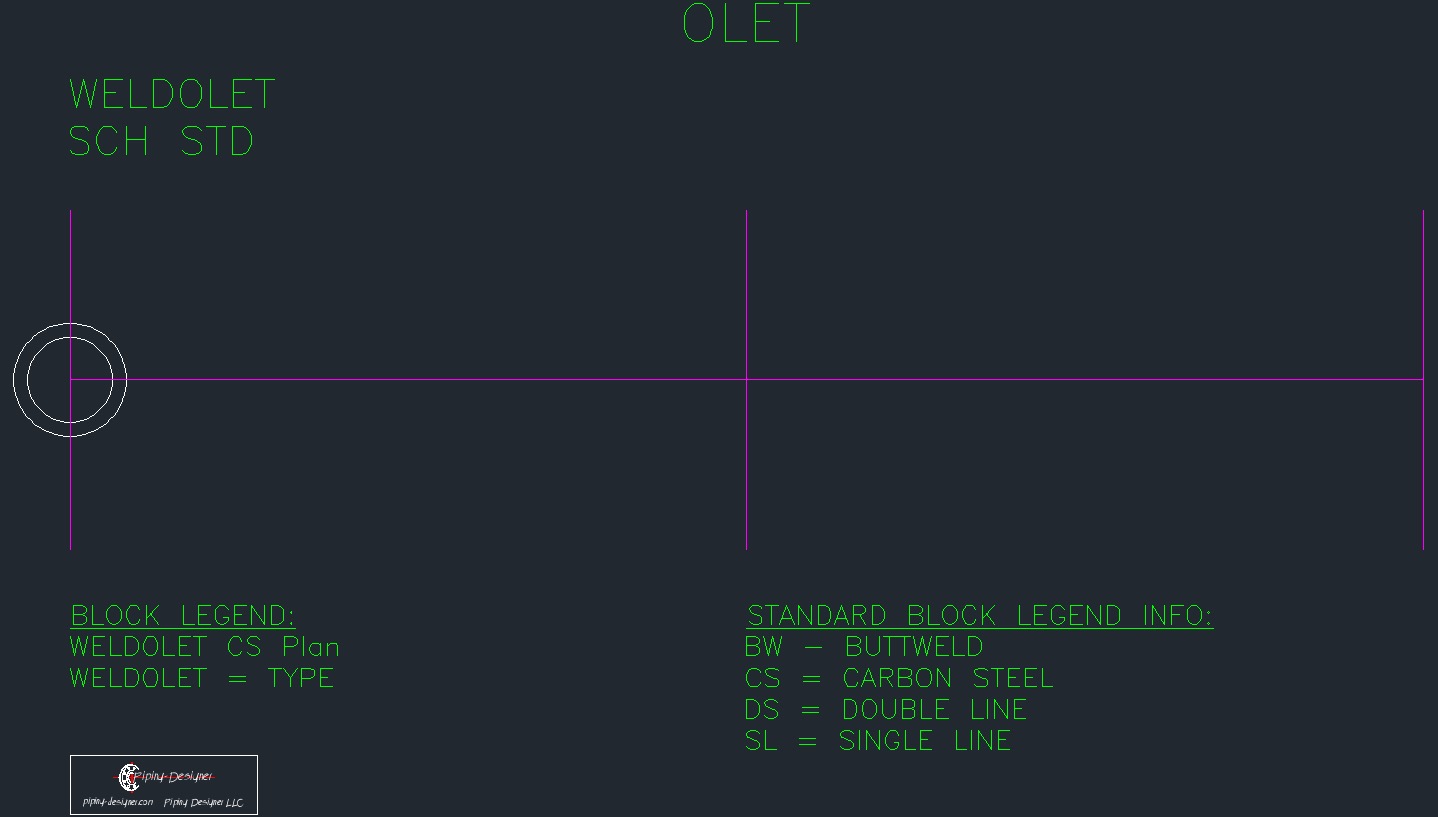

All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
| Total # of Blocks | Double Line | |
|---|---|---|
| Plan View | 18 | 1/2"-24" |
| Side View | 18 | 1/2"-24" |
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
- Fittings - Article
- Buttweld Fittings - Article
- Buttweld Fitting Dimensions - Datasheets
$4.99
