This Isometric Package contains a dynamic block and individual blocks for stamping your drawings. This drawing package contains 16 blocks!

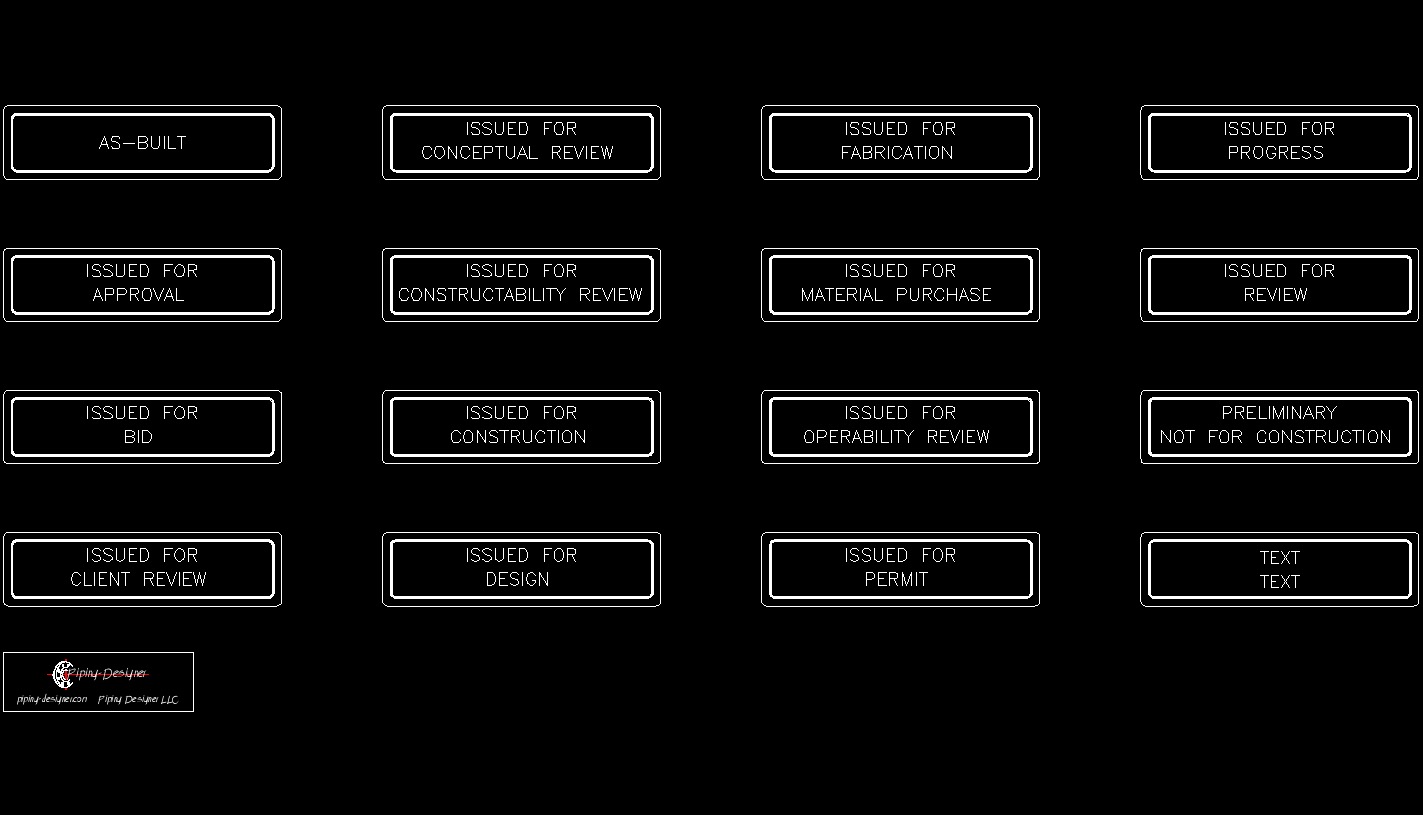

Issued for Stamp Drawing Example56.86 KB
Issued for Stamp Drawing
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes blocks for:
- As-Built
- Issued for Conceptual Review
- Issued for Fabrication
- Issued for Progress
- Issued for Approval
- Issued for Constructability Review
- Issued for Material Purchase
- Issued for Review
- Issued for Bid
- Issued for Construction
- Issued for Constructability Review
- Preliminary Not for Construction
- Issued for Client Review
- Issued for Design
- Issued for Permit
- Blank box with two lines
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
$3.99
