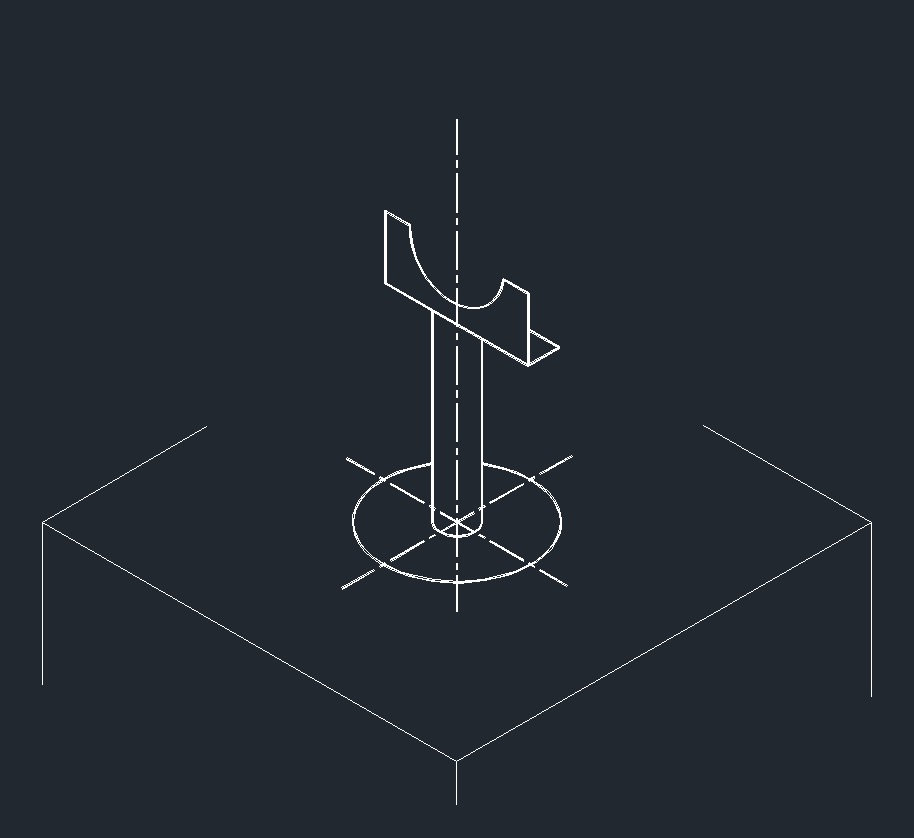

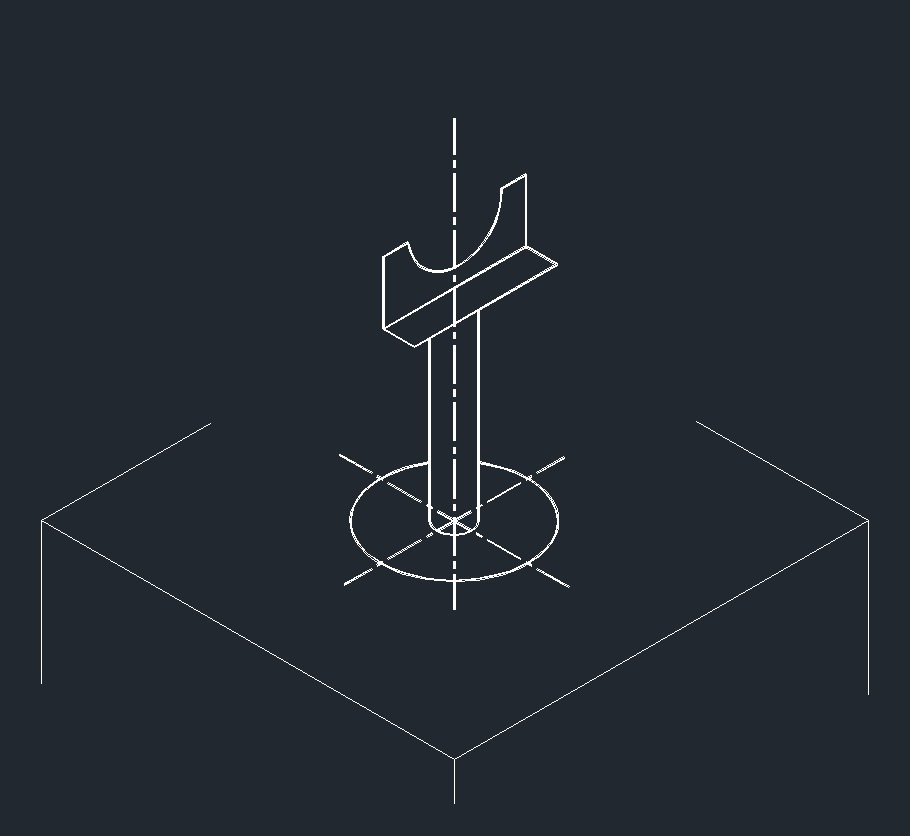

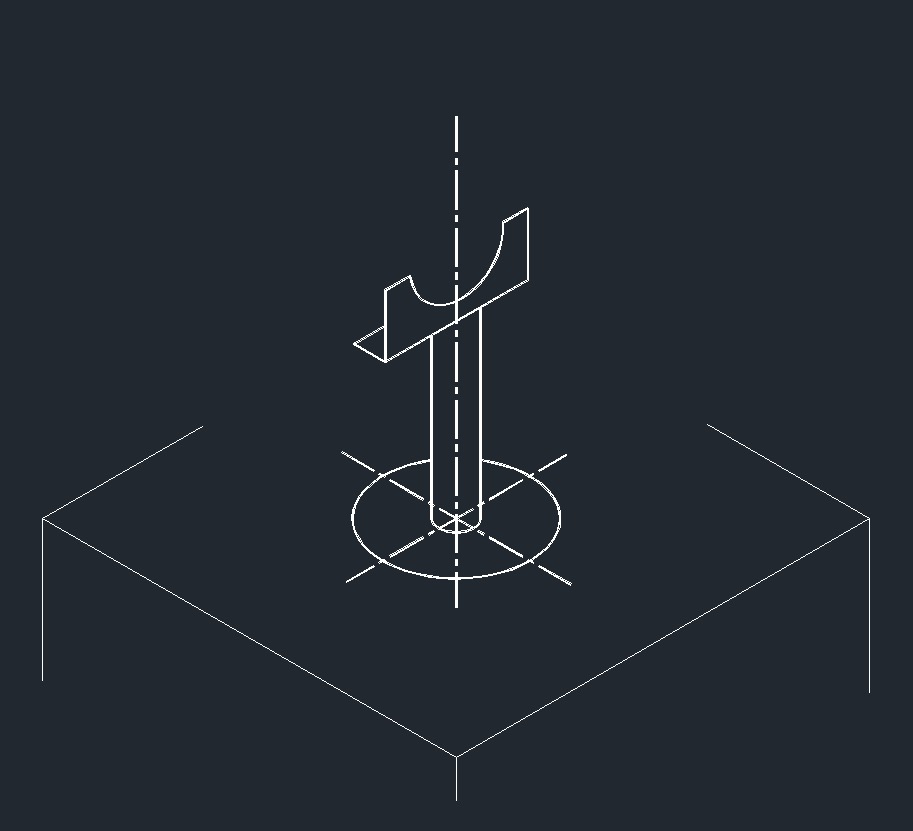

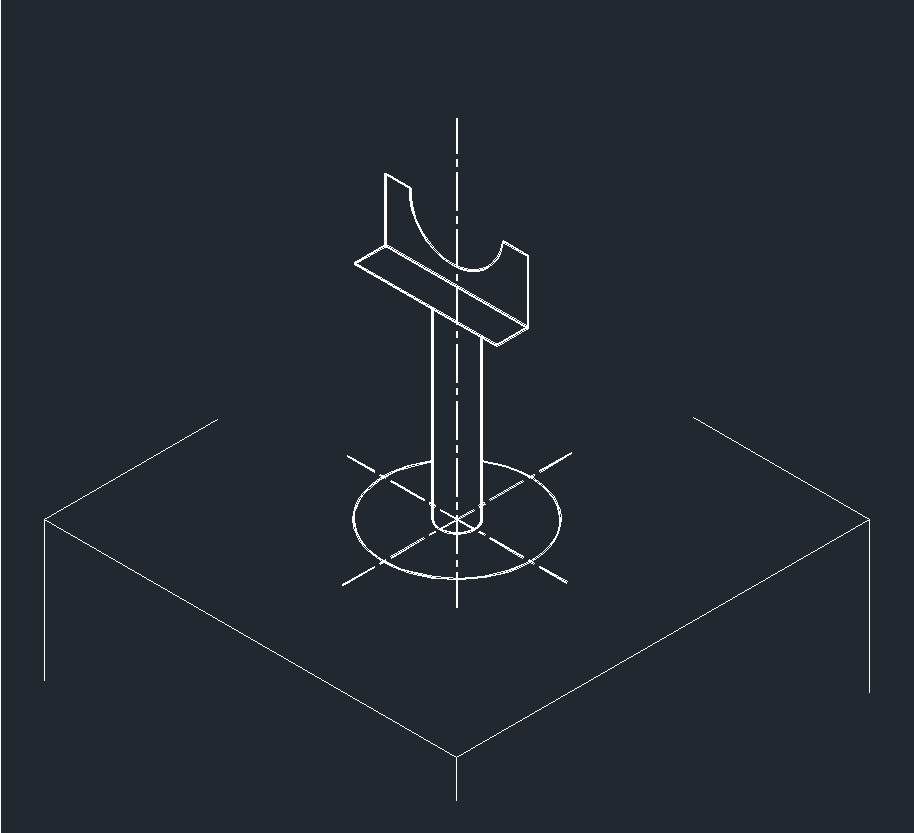

Flange Plate Support

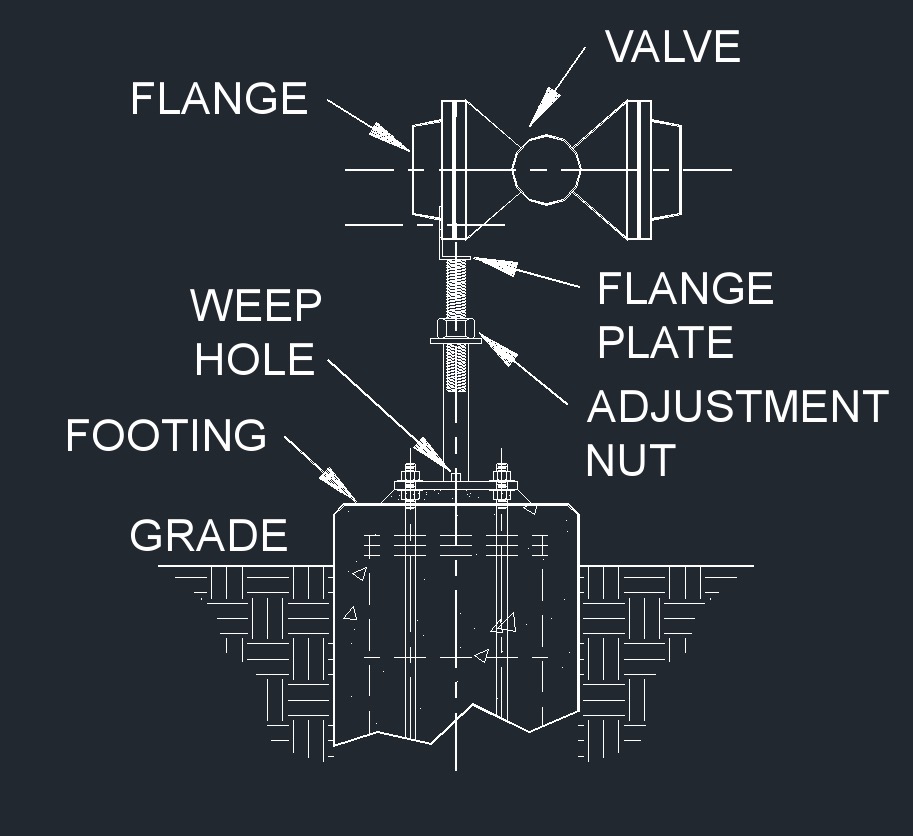

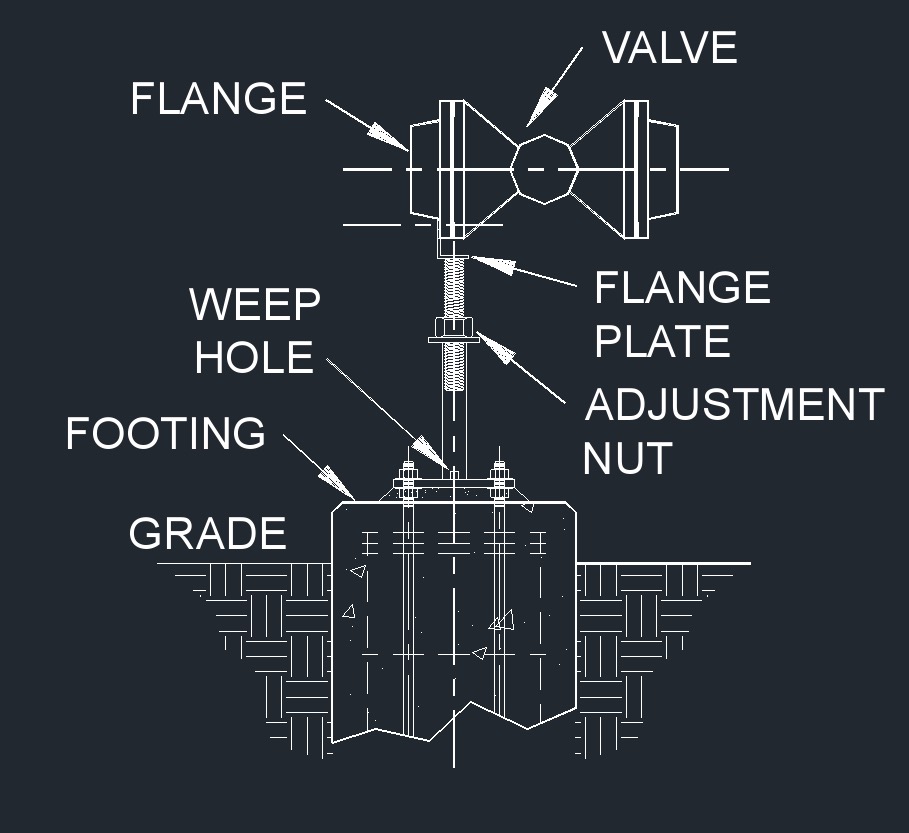

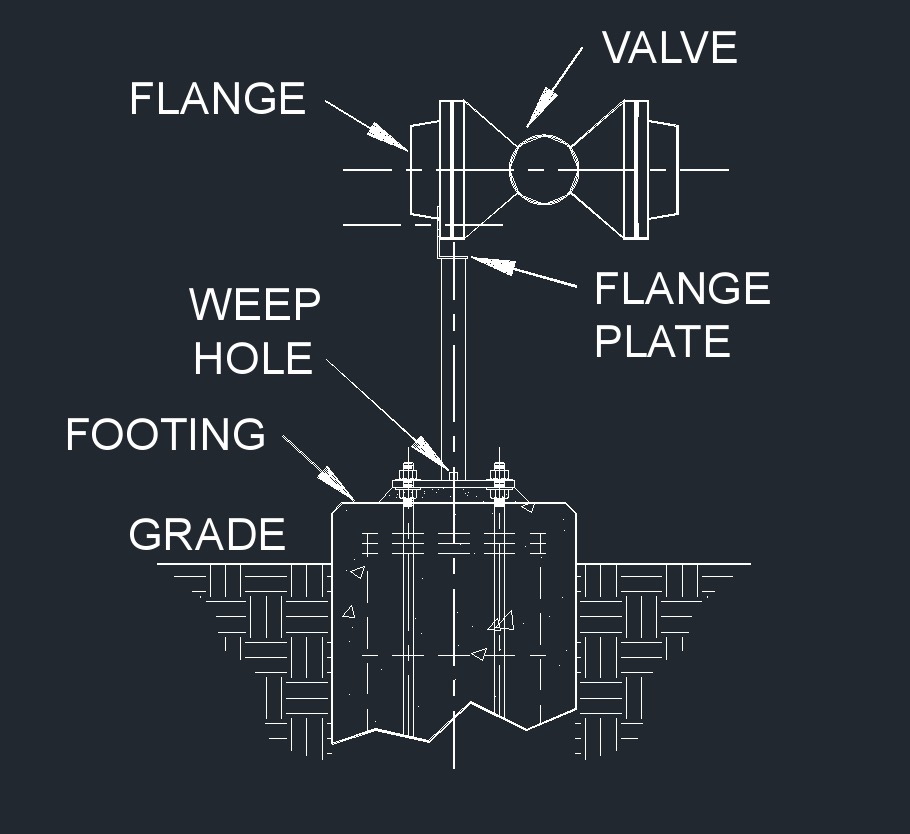

Support and Alignment  -  Pipe flange plate supports are designed to support and align pipes, especially at connection points where flanges are used.  They ensure that the pipes remain in the correct position, preventing sagging, misalignment, or excessive stress on the flange connections.

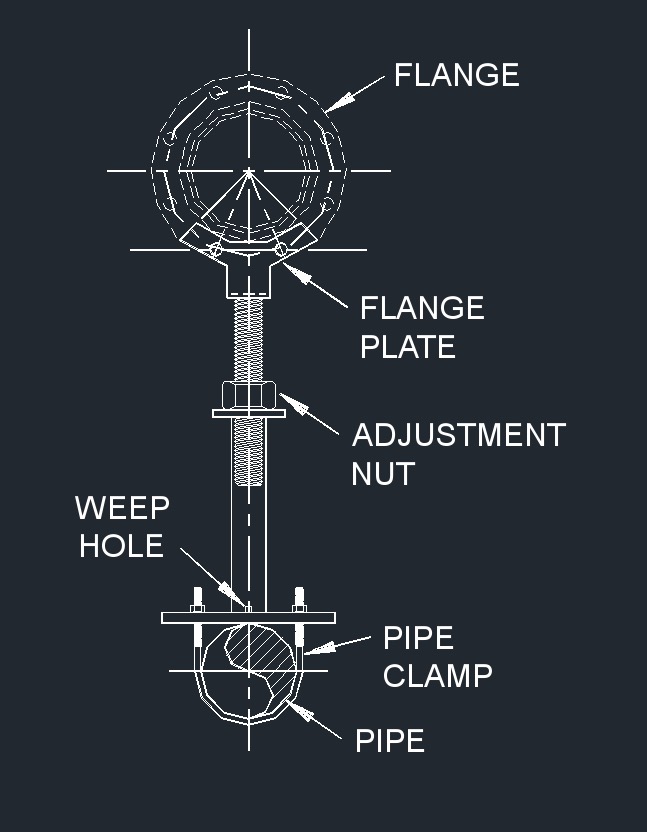

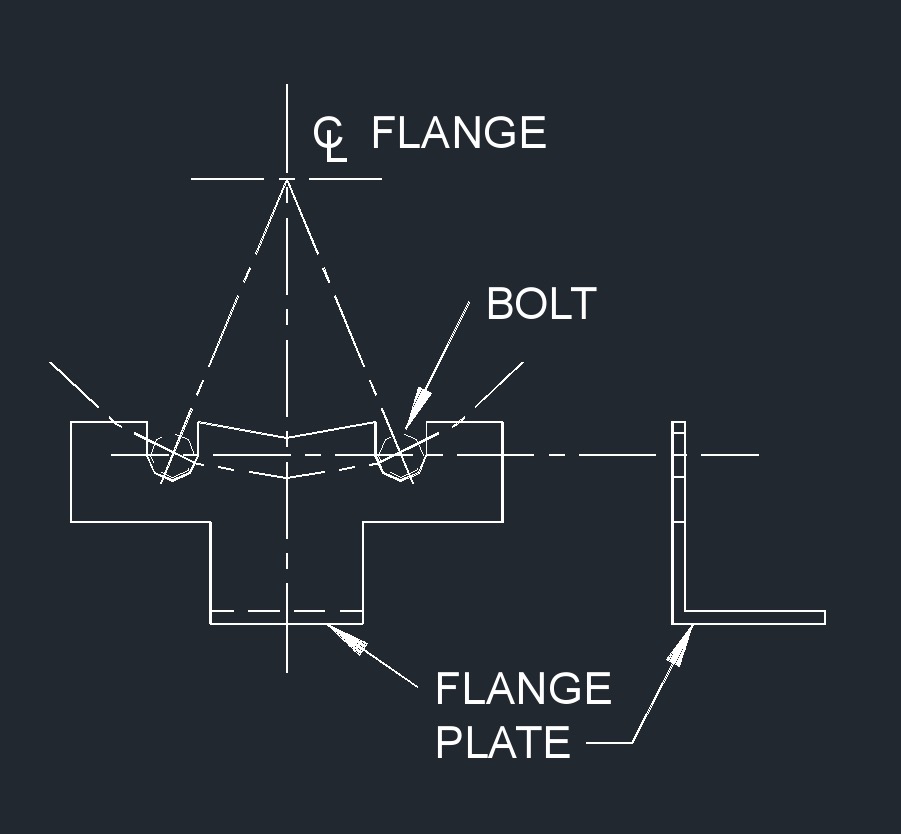

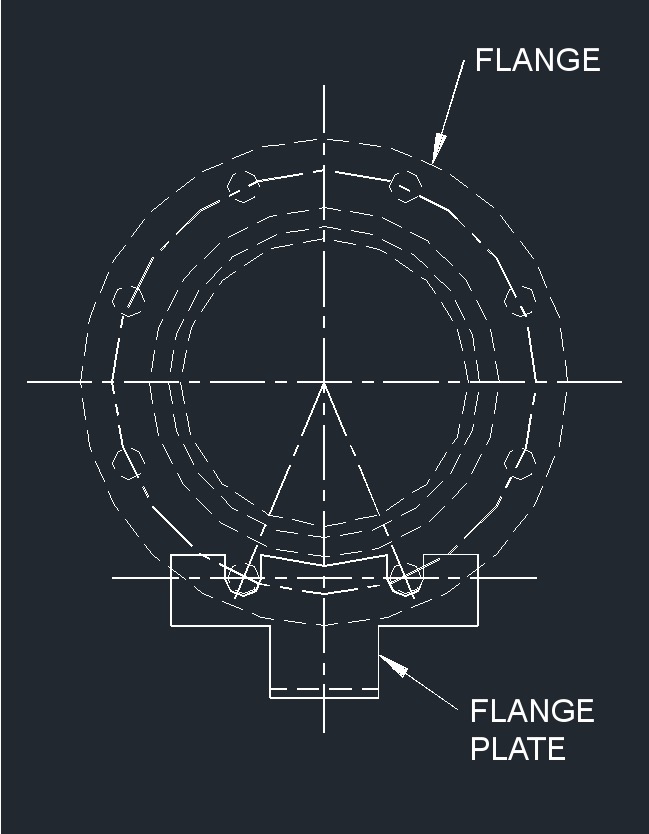

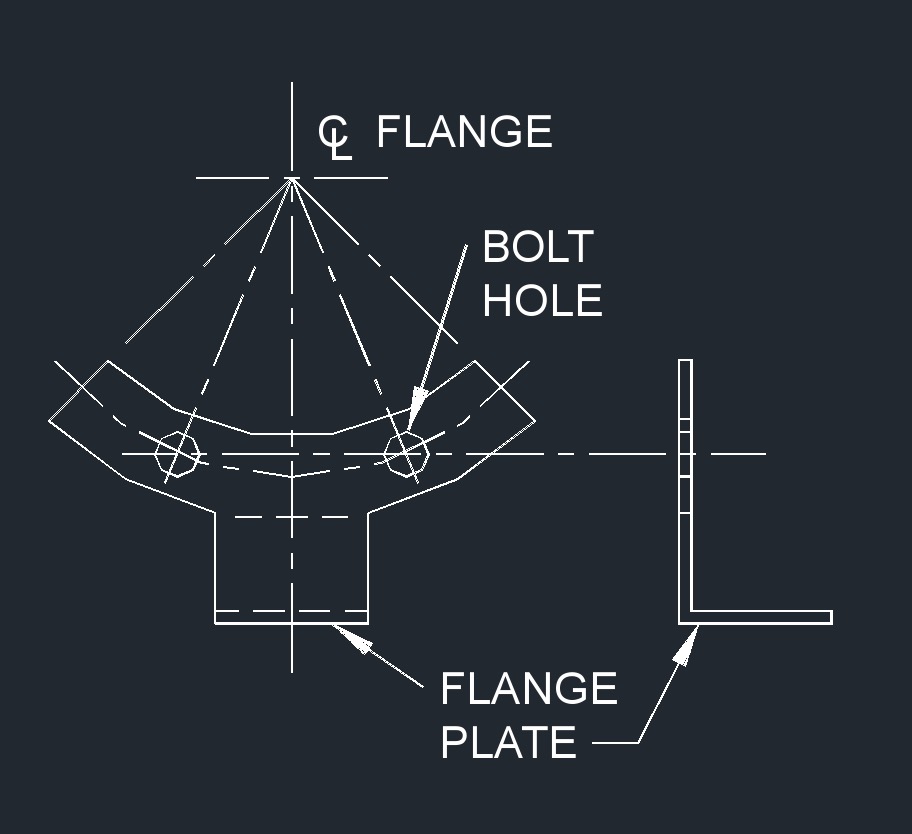

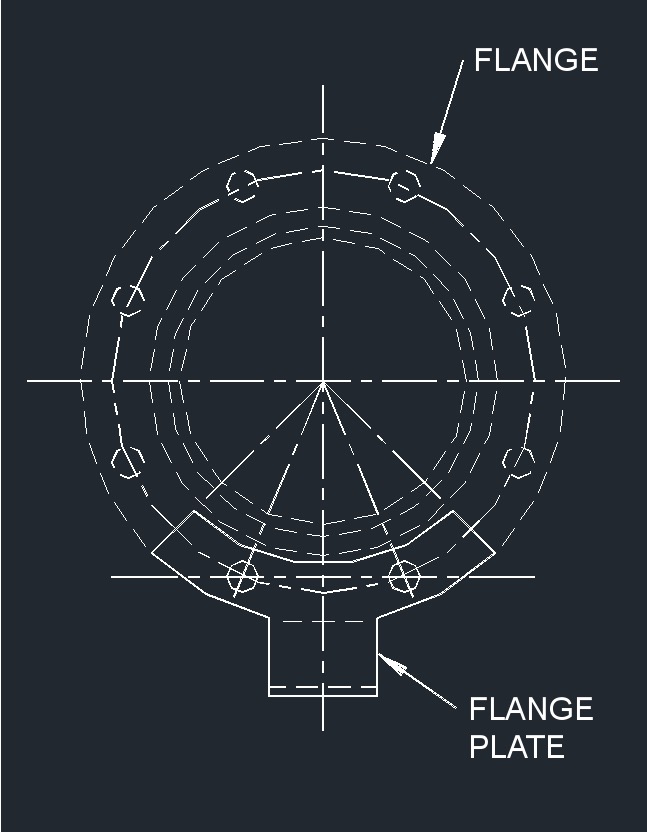

Attachment to Flanges  -  Flange plate supports are typically attached to the flanges of the pipes using bolts or other fasteners.  They often have holes or slots that align with the bolt holes in the flanges, allowing for a secure connection.
Material  -  These supports are commonly made from materials such as steel, stainless steel, or other sturdy materials, depending on the requirements of the specific application.

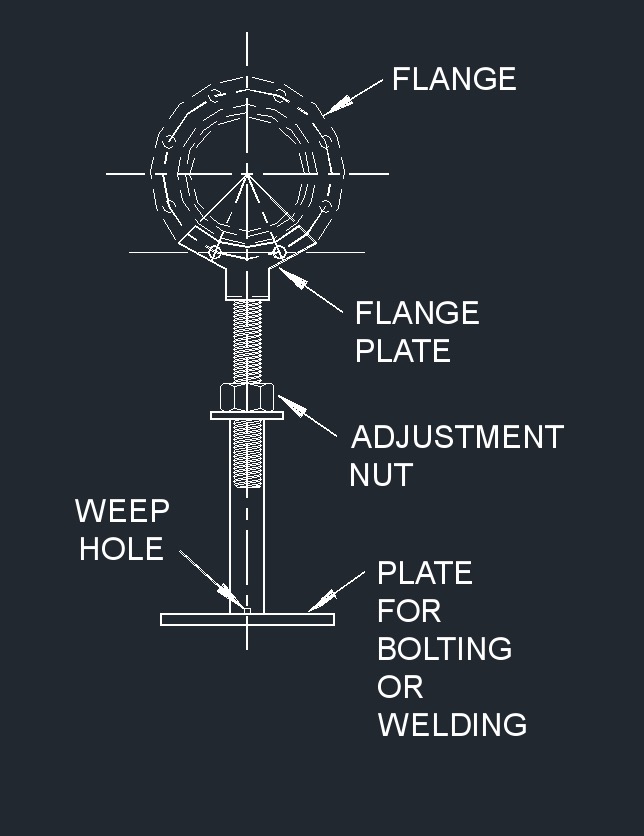

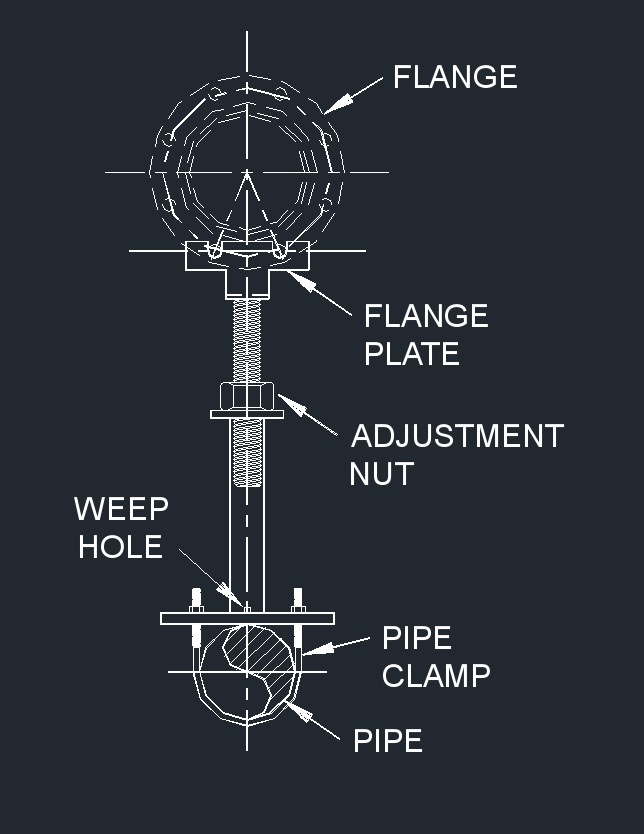

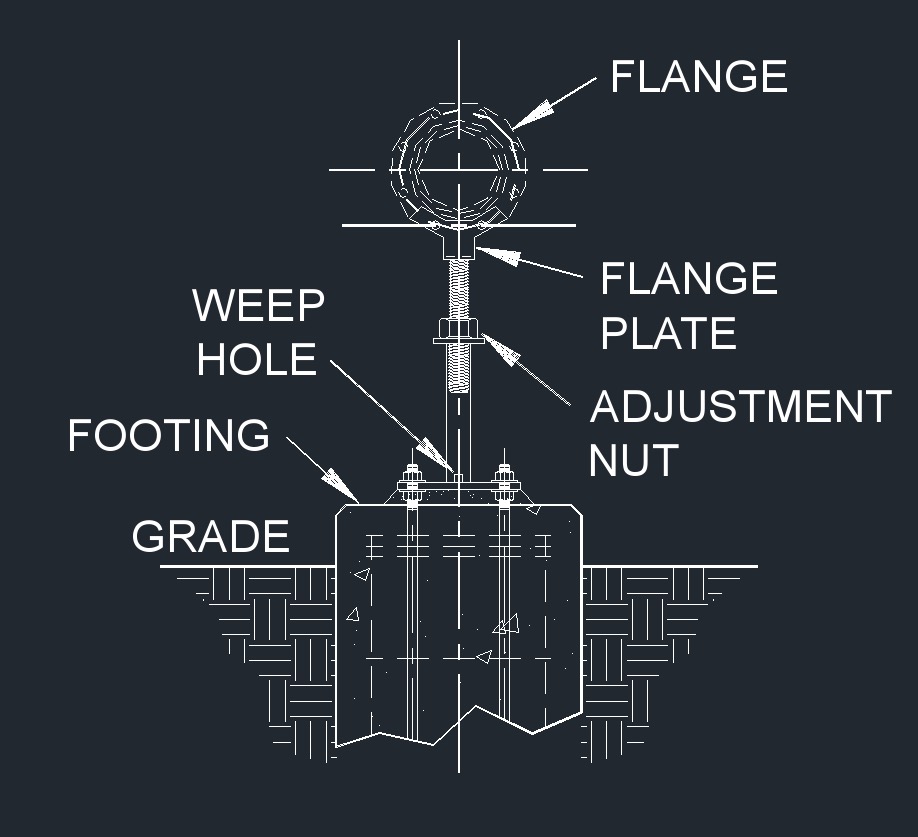

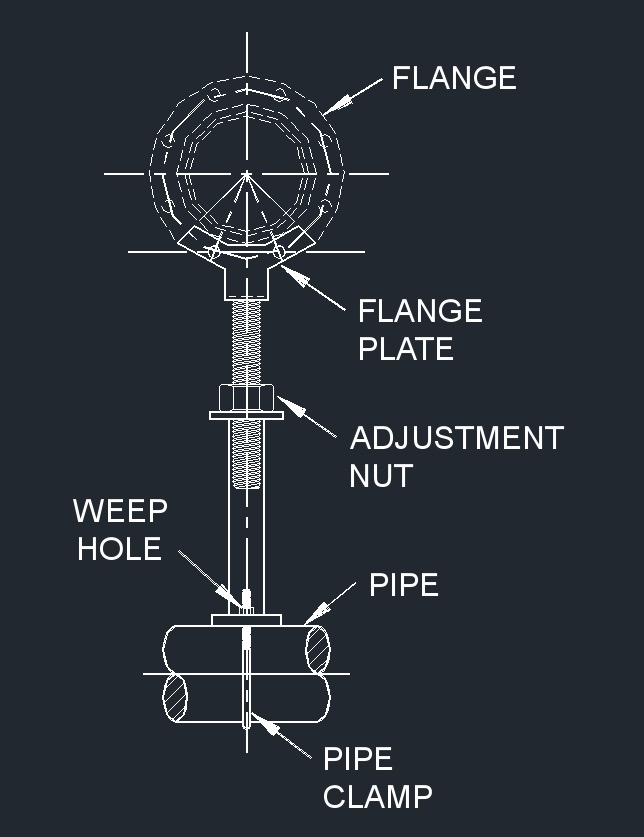

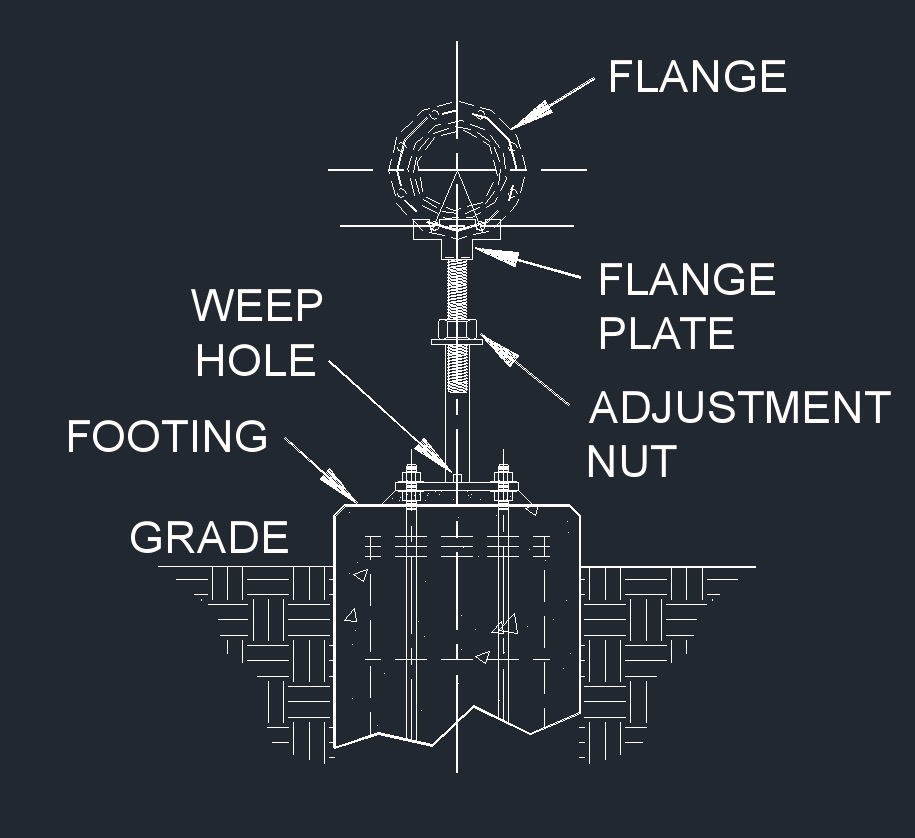

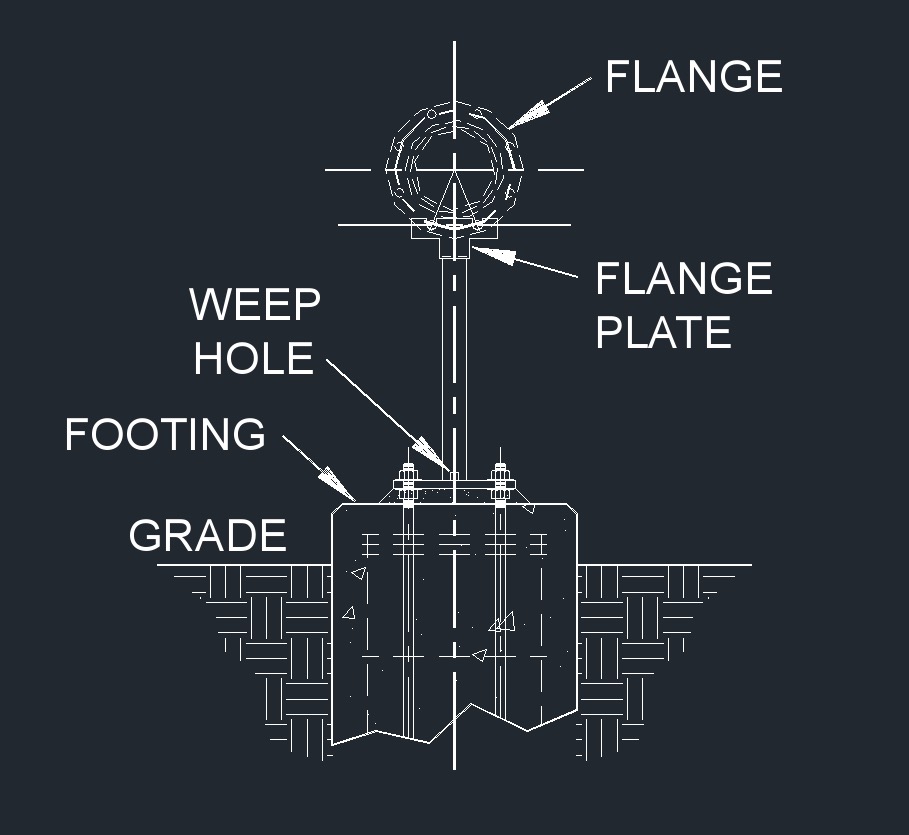

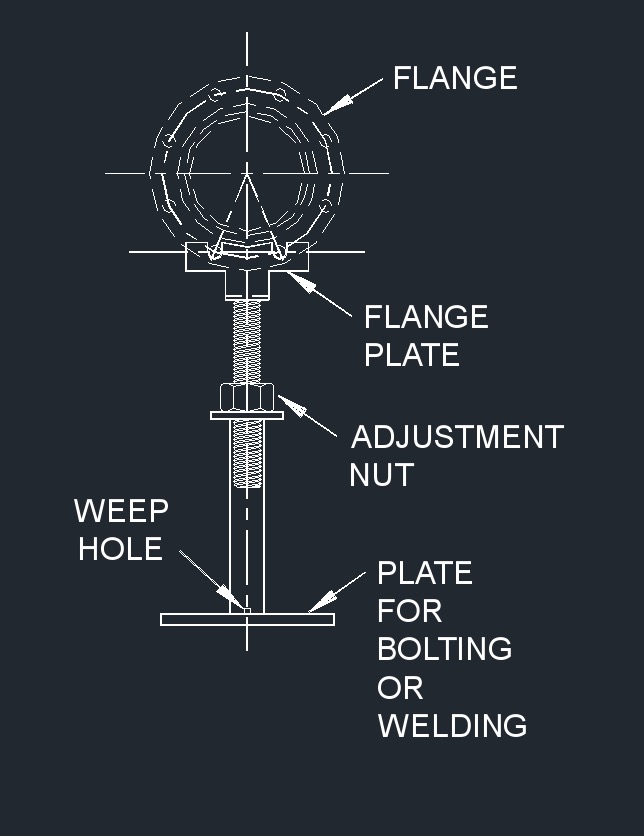

Types  -  There are different types of flange plate supports, including sliding plate supports, fixed plate supports, and adjustable plate supports.  Each type serves a specific purpose.  For example, sliding plate supports allow for thermal expansion and contraction of the pipes, while adjustable plate supports can be adjusted to accommodate varying pipe sizes.
Purpose  -  The primary purpose flange plate supports is to ensure the stability and integrity of the piping system.  They help distribute the weight of the pipes and the fluid they carry, reducing stress on the flange connections and preventing damage to the pipes or equipment.
Application  -  Pipe flange plate supports are commonly used in various industries, including oil and gas, petrochemical, chemical processing, and HVAC systems.  They are crucial in maintaining the reliability and safety of these piping systems.
