Valve - Check, Angle Stop, ANSI Class 250, CI (in)

on . Posted in Valve Datasheets

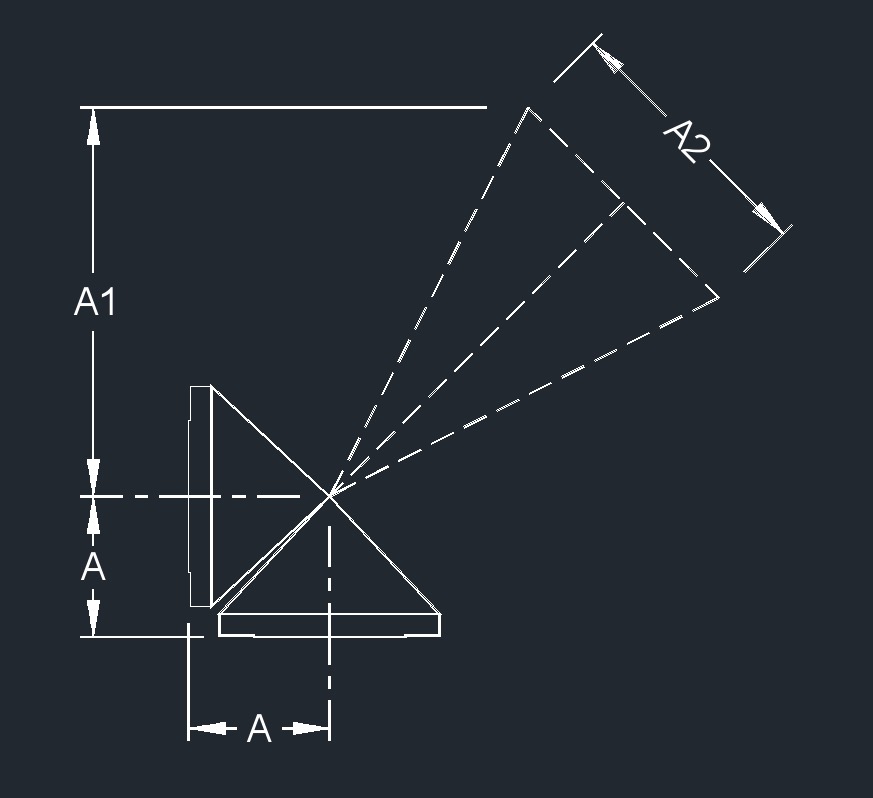

data flg angle stop check valvedata flg angle stop check valve 1



Valve - Check, Angle Stop, ANSI Class 250, CI (in)

  • Dimensions and tolerances in accordance with ANSI/ASME B16.5 for sizes 1/2" to 24".
  • Face to face dimensions per ANSI/ASME B16.10.
  • Gaskets dimensions and tolerances in accordance with ANSI/ASME B16.20.
  • Preparation of buttweld end in accordance with ANSI/ASME B16.25.
  • Valve dimensions and tolerances in accordance with ANSI/ASME B16.34.
  • Valve weight, open height and handwheel diameter are approximate and vary between manufacture's. Contact manufacturer for specific information.
  • Pressure Temperature Rating:
    • Cast Iron
    • ASTM A126
    • 500 psi @ -20°F to 100°F - 2" to 12"
    • 300 psi @ -20°F to 100°F - 14" to 24"
Valve Size

(in)

Face to Face Dimension (in)Handwheel (in)Approx. Weight (lb)
Raised Face

A

Buttweld

A

Ring Joint

A

Approx. Open

A1

Approx. Diameter

A2

Raised Face



Buttweld



Ring Joint



2 - - - - - - - -
2 1/2 5 3/4 - - 14 9 90 - -
3 6 1/4 - - 15 10 125 - -
4 7 - - 17 10 190 - -
5 7 7/8 - - 20 14 250 - -
6 8 3/4 - - 23 16 340 - -
8 10 1/2 - - 29 20 640 - -
10 12 1/4 - - 33 20 1030 - -
12 - - - - - - - -
14 - - - - - - - -
16 - - - - - - - -
18 - - - - - - - -
20 - - - - - - - -
24 - - - - - - - -
