Two Span Continuous Beam - Equal Spans, Concentrated Load at Any Point

Article Links

Beam Design Formulas Frame Design Formulas Plate Design Formulas Geometric Properties of Structural Shapes Welding Stress and Strain Connections Welding Symbols

























Two Span Continuous Beam - Equal Spans, Two Equal Concentrated Loads Symmetrically Placed  formulas
\(\large{ R_1 = V_1   \;\;=\;\;  \frac{P\;b}{4\;L^3} \; \left[ 4\;L^2 - a \; \left( L + a  \right)  \right]  }\)  \(\large{ R_2   \;\;=\;\;  \frac{P\;a}{2\;L^3}  \left[ 2\;L^2 + b \; \left( L + a  \right)  \right]  }\)  \(\large{ R_3 = V_3   \;\;=\;\; -\; \frac{P\;a\;b}{4\;L^3} \;  \left( L + a  \right)    }\)  \(\large{ V_2   \;\;=\;\;  \frac{P\;a}{4\;L^3} \; \left[ 4\;L^2 + b \; \left( L + a  \right)  \right]  }\) \(\large{ M_1  \; \left(at\; support\; R_2  \right)  \;\;=\;\;  \frac{P\;a\;b}{4\;L^2}  \; \left( L + a  \right)    }\) \(\large{ M_{max}   \;\;=\;\;  \frac{P\;a\;b}{4\;L^3}  \; \left[ 4\;L^2 - a \; \left( L + a  \right)  \right]  }\)
Symbol	English	Metric
\(\large{ a, b }\) = horizontal distance to point load	\(\large{in}\)	\(\large{mm}\)
\(\large{ M }\) = maximum bending moment	\(\large{lbf-in}\)	\(\large{N-mm}\)
\(\large{ V }\) = maximum shear force	\(\large{lbf}\)	\(\large{N}\)
\(\large{ R }\) = reaction load at bearing point	\(\large{lbf}\)	\(\large{N}\)
\(\large{ L }\) = span length under consideration	\(\large{in}\)	\(\large{mm}\)
\(\large{ P }\) = total consideration load	\(\large{lbf}\)	\(\large{N}\)

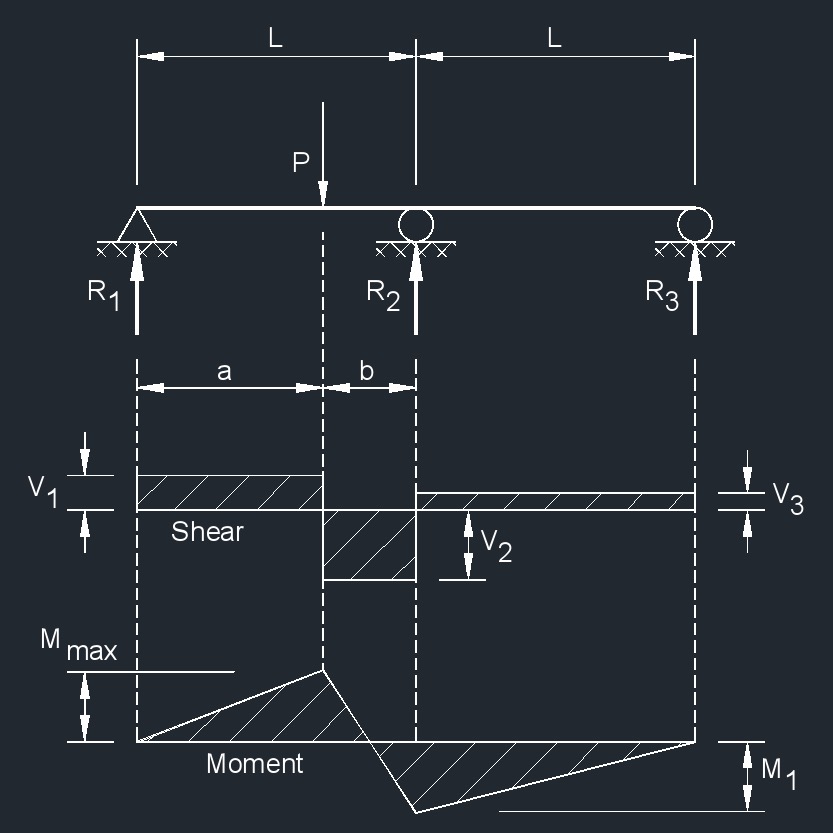

diagrams

• Bending moment diagram (BMD)  -  Used to determine the bending moment at a given point of a structural element.  The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
• Free body diagram (FBD)  -  Used to visualize the applied forces, moments, and resulting reactions on a structure in a given condition.
• Shear force diagram (SFD)  -  Used to determine the shear force at a given point of a structural element.  The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
• Uniformly distributed load (UDL)  -  A load that is distributed evenly across the entire length of the support area.
