# Chord of a Circle

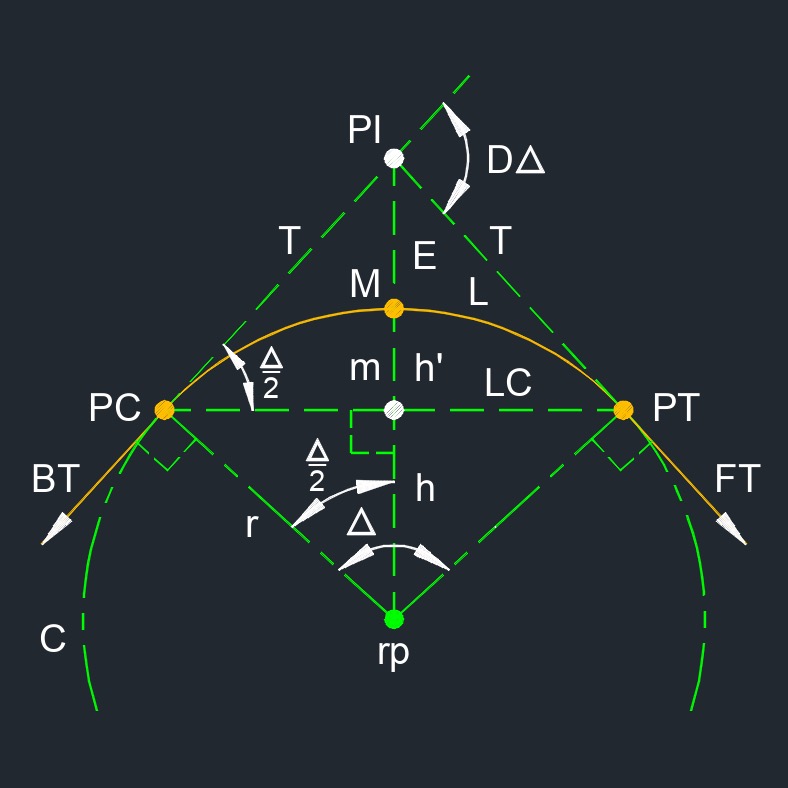

- Chord (c), also called long chord (LC), is between any two points on a circular curve.
- Angle (\(\Delta\)) - Two rays sharing a common point.
- Back Tangent (BT) - The tangent line before the beginning of the curve.
- Center (rp) - Having all points on the line circumference are at equal distance from the center point.
- Circle - All points are at a fixed equal distance from a radius point (rp).
- Circumference (C) - The outside of a circle or a complete circular arc.
- Deflection Angle (D\(\Delta\)) - Deflection angle from full circular curve measured from tangent at PC or PT. The angles between a tangent and the ends of the chords from the PC.
- External Distance (E) - Radial distance from PI to midpoint on a simple circular curve.
- Forward Tangent (FT) - The tangent line after the ending of the curve.
- Height (h) - Length of radius from radius center to midpoint of chord.
- Height (h') - Length of radius from midpoint of chord to point on circular curve.
- Length (L) - Total length of any circular curve measured along the arc.
- Mid-point (M) - Center or halfway point of a line segment.
- Middle Ordinate (m) - The distance from the midpoint of the curve to the mid-point of the long chord.
- Point of Curvature (PC) - The point at which a straight line begins to curve, the point tangency to the curve
- Point of Intersection (PI) - The intersection of two tangent points or where two non-parallel lines intersect.
- Point of Tangent (PT) - The point at which a curved line ends and the point tangency to the curve begins.
- Radius (r) - Half the diameter of a circle.
- Radius Point (rp) - Radius center point of circular curve.
- Tangent (T) - A line that touches a curve at just one point such that it is perpendicular to a radius line of the curve.

### Chord of a Circle Index

- Arc Length of a Chord
- Length of a Chord
- Center of Circle to Chord Midpoint
- Chord Midpoint to Arc Midpoint
- External Distance to Arc

## Arc Length of a chord FormulasThe arc length (l), is the total length of any circular curve measured along the arc, beginning at the curve PC (point on curve) to the end of the arc PT (point on tangent). |
||

\(\large{ L = \Delta \; r }\) \(\large{ L = \frac{ r \; \Delta \; \pi }{ 180 } }\) \(\large{ L = \frac { \Delta} { 180 } \; 2 \; \pi \; r }\) |
||

Symbol |
English |
Metric |

\(\large{ L }\) = length | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ \Delta }\) = angle | \(\large{ deg }\) | \(\large{ rad }\) |

\(\large{ \pi }\) = Pi | \(\large{3.141 592 653 ...}\) | |

\(\large{ r }\) = radius | \(\large{ in }\) | \(\large{mm }\) |

## Length of a chord FormulasThe chord length (c), also called long chord (LC), is a straight line from the beginning of the curve PC (point on curve) to the end of the arc PT (point on tangent). |
||

\(\large{ c = 2 \; r \; \sin \; \frac {\Delta}{2} }\) \(\large{ c = 2 \; \sqrt{r^2-h^2} }\) |
||

Symbol |
English |
Metric |

\(\large{ c }\) = chord | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ h }\) = chord circle center to midpoint distance | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ \Delta }\) = angle | \(\large{ deg }\) | \(\large{ rad }\) |

\(\large{ r }\) = radius | \(\large{ in }\) | \(\large{mm }\) |

## center of circle to chord midpoint FormulaLength of radius (h) from radius center (rp) to midpoint of chord (c). |
||

\(\large{ h = \sqrt{ r^2 - \frac{ L^2 }{ 4 } } }\) | ||

Symbol |
English |
Metric |

\(\large{ h }\) = chord circle center to midpoint distance | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ r }\) = circle radius | \(\large{ in }\) | \(\large{ mm }\) |

\(\large{ L }\) = length | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ h' }\) = segment height | \(\large{ in }\) | \(\large{ mm }\) |

## chord midpoint to arc midpoint FormulaLength of radius from midpoint of chord to point on circular curve in the segment. |
||

\(\large{ h' = r - h }\) \(\large{ h' = r \; \left( 1 - cos \; \frac{ \Delta }{ 2 } \right) }\) |
||

Symbol |
English |
Metric |

\(\large{ h' }\) = segment height | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ \Delta }\) = angle | \(\large{ deg }\) | \(\large{ rad }\) |

\(\large{ h }\) = chord circle center to midpoint distance | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ r }\) = circle radius | \(\large{ in }\) | \(\large{ mm }\) |

## External Distance to Arc FormulaRadial distance (E) from point of intersection (PI) to midpoint on a circular curve. |
||

\(\large{ E = T \; tan \frac{ \Delta }{ 4 } }\) | ||

Symbol |
English |
Metric |

\(\large{ E }\) = external distance | \(\large{ in }\) | \(\large{mm }\) |

\(\large{ \Delta }\) = angle | \(\large{ deg }\) | \(\large{ rad }\) |

\(\large{ T }\) = tangent length | \(\large{ in }\) | \(\large{mm }\) |
