Dynamic Blocks - 180 Short Radius Buttweld
This Drawing Package contains different views of 180 degree short radius elbows (also known as a return). This drawing package contains four dynamic blocks. Each dynamic block contains 24 blocks, a mix of single line and double line.

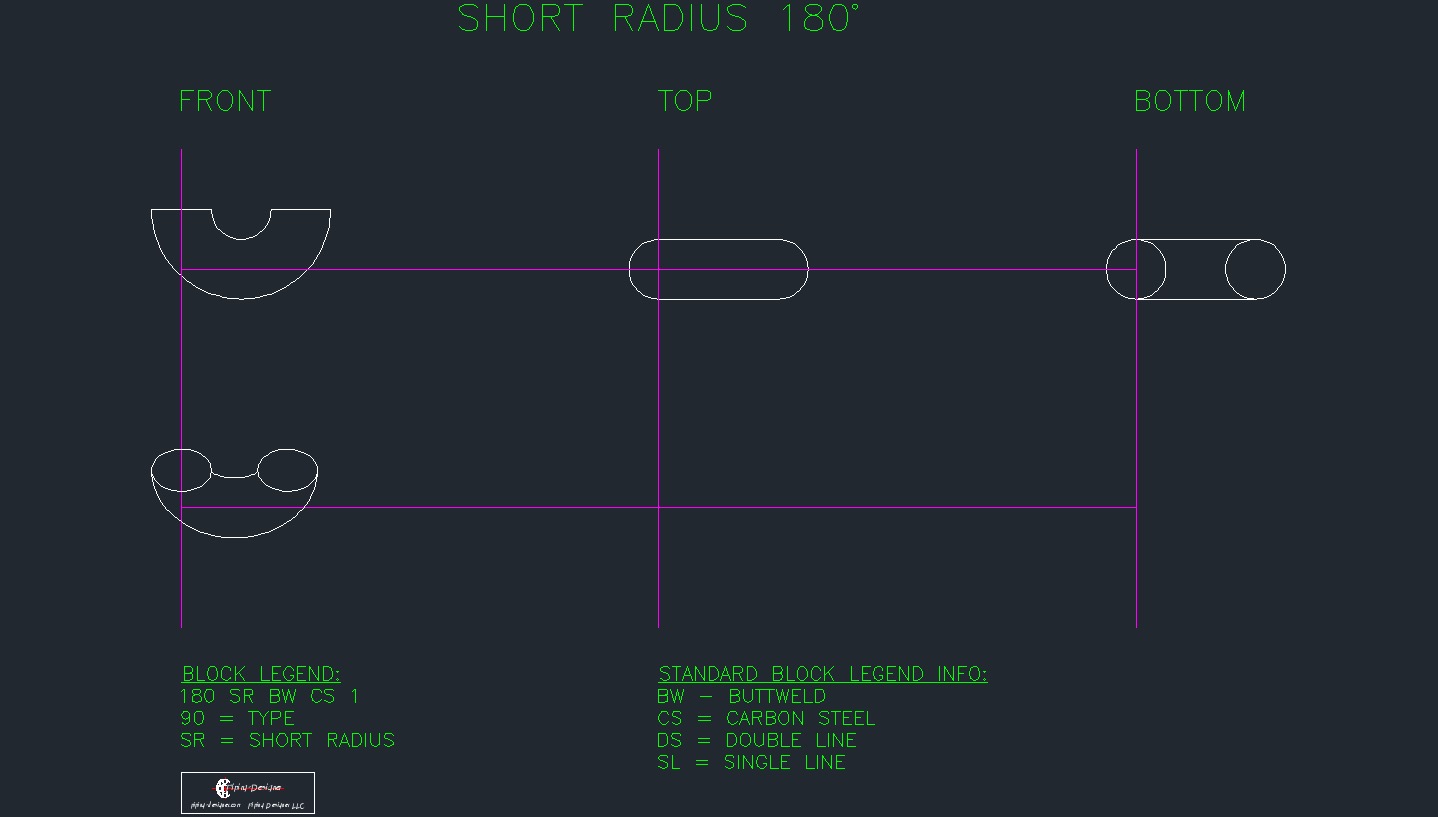

Dynamic Block 180 Degree Short Radius Return Example33.5 KB20/08/2017
180 Degree Buttweld Short Radius Return - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
| Single Line | Double Line | Total | |
|---|---|---|---|
| Profile View | 2"-12" | 2"-22", 24" | 24 |
| Profile View Rolled 45 Degrees | 2"-12" | 2"-22",24" | 24 |
| Top View | 2"-12" | 2"-22", 24" | 24 |
| Bottom View | 2"-12" | 2"-22", 24" | 24 |
| Total: | 96 | ||
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
- Fittings - Article
- Buttweld Fittings - Article
- Buttweld Fitting Dimensions - Datasheets
