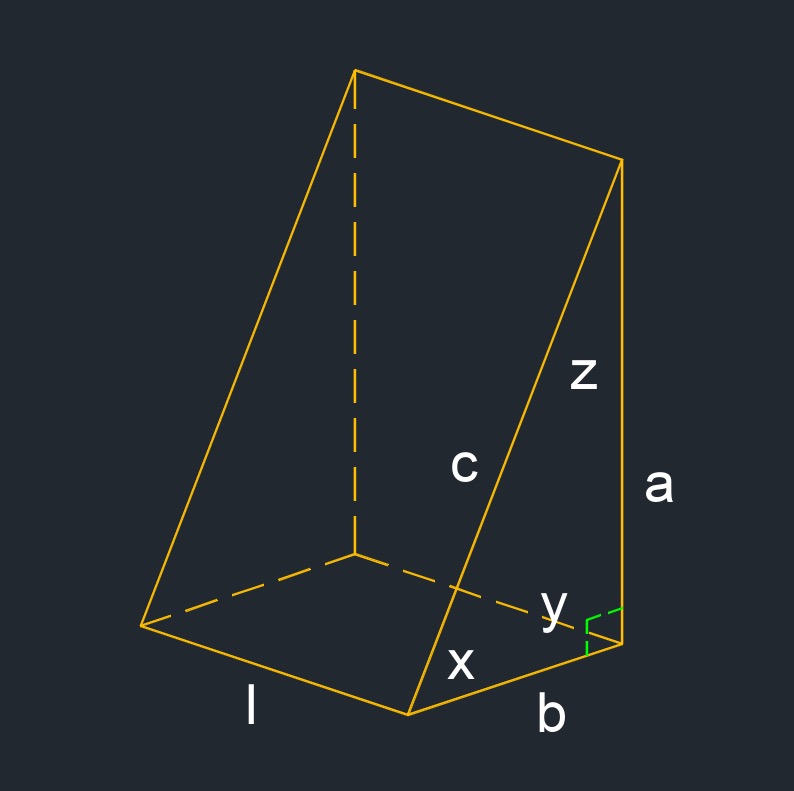

Right triangle wedge (a three-dimensional figure) has two right triangle ends and three rectangle sides.- 3 rectangles
- 2 right triangles
- 1 base
- 9 edges
- 2 ends
- 2 sides
- 6 vertexs
Angle of a Right Triangle Wedge formulas |
||
|
\( x \;=\; arccos \; \dfrac{ b^2 + c^2 - a^2 }{ 2 \cdot b \cdot c } \) \( z \;=\; 90° - x \) |
||
| Symbol | English | Metric |
| \( x, z \) = angle | \( deg \) | \( rad \) |
| \( a, b, c \) = edge | \( in \) | \( mm \) |
Hypotenuse of a Right Triangle formula |
||
| \( c \;=\; \sqrt{ a^2 + b^2 } \) | ||
| Symbol | English | Metric |
| \( c \) = hypotenuse | \( deg \) | \( rad \) |
| \( a, b, c \) = edge | \( in \) | \( mm \) |
Surface area of a Right Triangle Wedge formula |
||
| \( A_s = a \cdot b+l \cdot ( a+b+c ) \) | ||
| Symbol | English | Metric |
| \( A_s \) = surface area | \( in^2 \) | \( mm^2 \) |
| \( a, b, c \) = edge | \( in \) | \( mm \) |
| \( l \) = length | \( in \) | \( mm \) |
Volume of a Right Triangle Wedge Formula |
||
| \( V \;=\; \dfrac{ l \cdot a \cdot b }{ 2 }\) | ||
| Symbol | English | Metric |
| \( V \) = volume | \( in^3 \) | \( mm^3 \) |
| \( a, b, c \) = edge | \( in \) | \( mm \) |
| \( l \) = length | \( in \) | \( mm \) |
