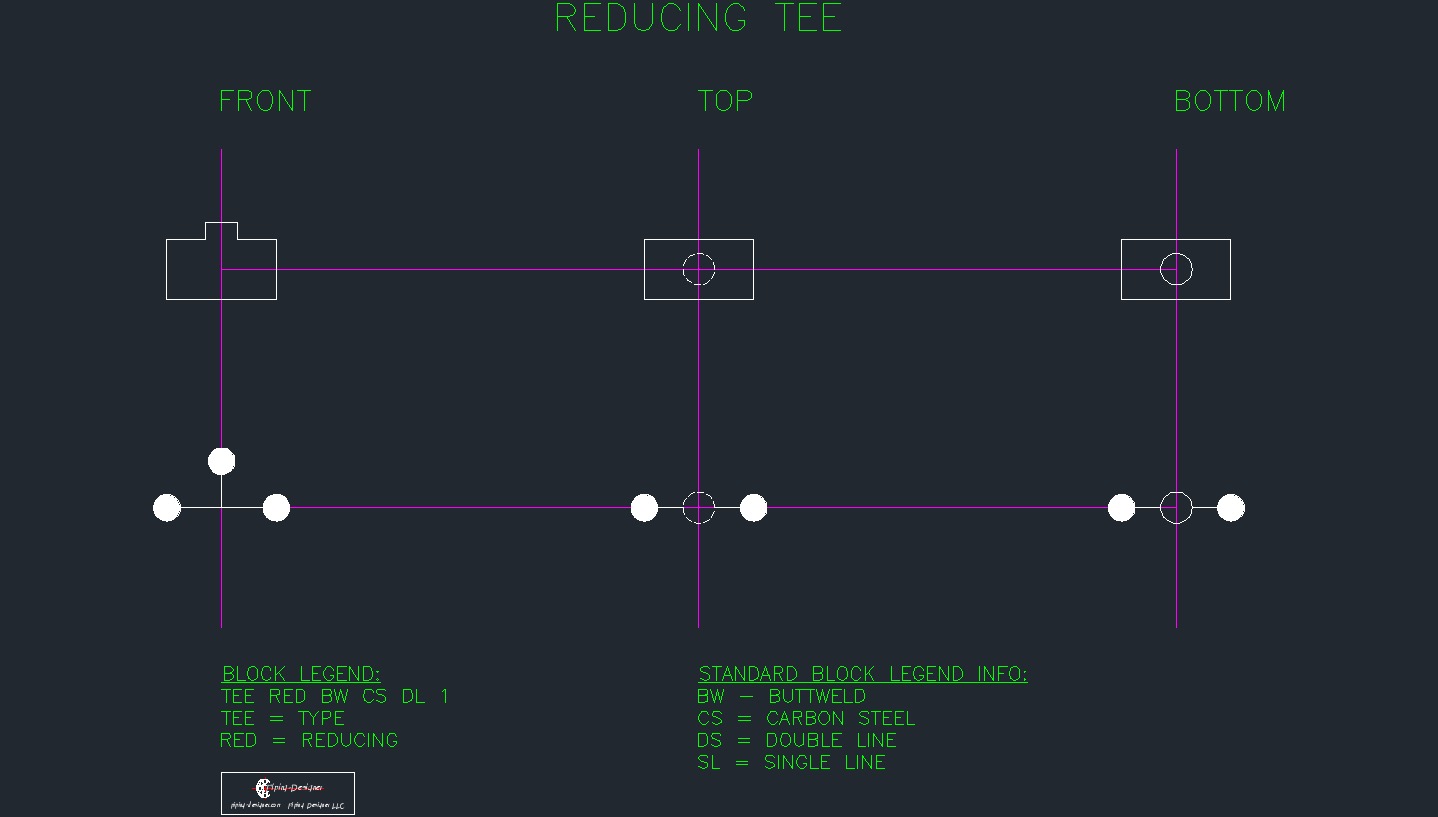

This Drawing Package contains different views of reducing tees. This drawing package contains six dynamic blocks. Each dynamic block contains either 40 or 74 blocks.
Dynamic Block Reducing Tee Example38.44 KB20/08/2017
Reducing Tees - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
| List of Sizes | Number of Single Line | Number of Double Line | Total Number of Blocks | |
|---|---|---|---|---|
| Plan View | -Link- | 40 | 74 | 114 |
| Top View | -Link- | 40 | 74 | 114 |
| Bottom View | -Link- | 40 | 74 | 114 |
| Total # of Blocks: | 342 |
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
- Fittings - Article
- Buttweld Fittings - Article
- Buttweld Fitting Dimensions - Datasheets
$4.99
