This Drawing Package contains different views of crosses. This drawing package contains two dynamic blocks. Each dynamic block contains 24 blocks.
Dynamic Block Reducing Cross Example37.98 KB20/08/2017

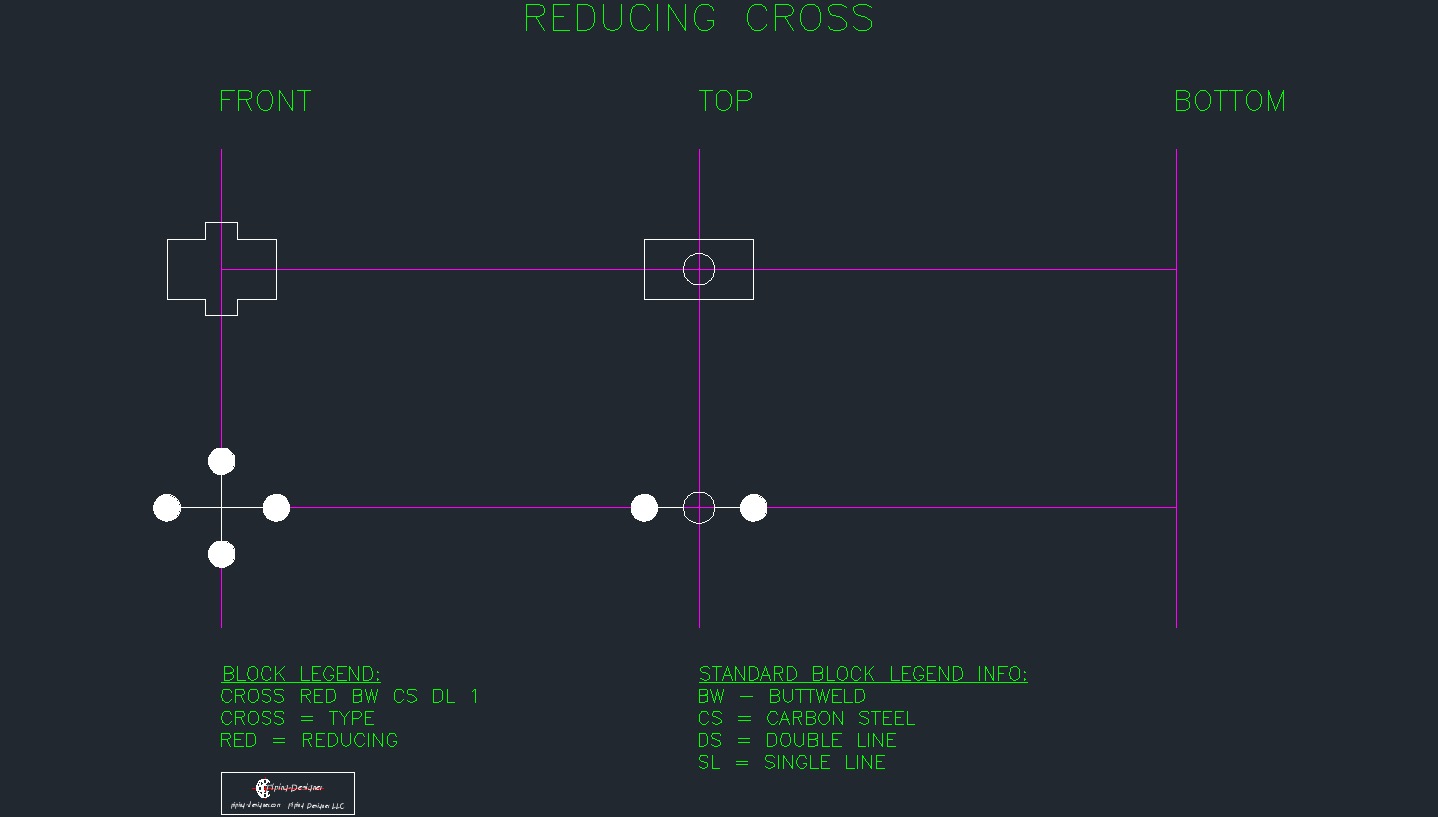

Reducing Crosses - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
| Single Line | Double Line | Sizes | Totals | |
|---|---|---|---|---|
| Top View | 2"-12" | 2"-24" | -List of Sizes- | 74 |
| Side View | 2-12" | 2-24" | -List of Sizes- | 74 |
| Totals: | 148 | |||
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
Want to learn more about dynamic blocks? Check out the AutoCAD webpage!
Have questions about when to use these in your design? Check out our articles or datasheets:
- Fittings - Article
- Buttweld Fittings - Article
- Buttweld Fitting Dimensions - Datasheets
$4.99
