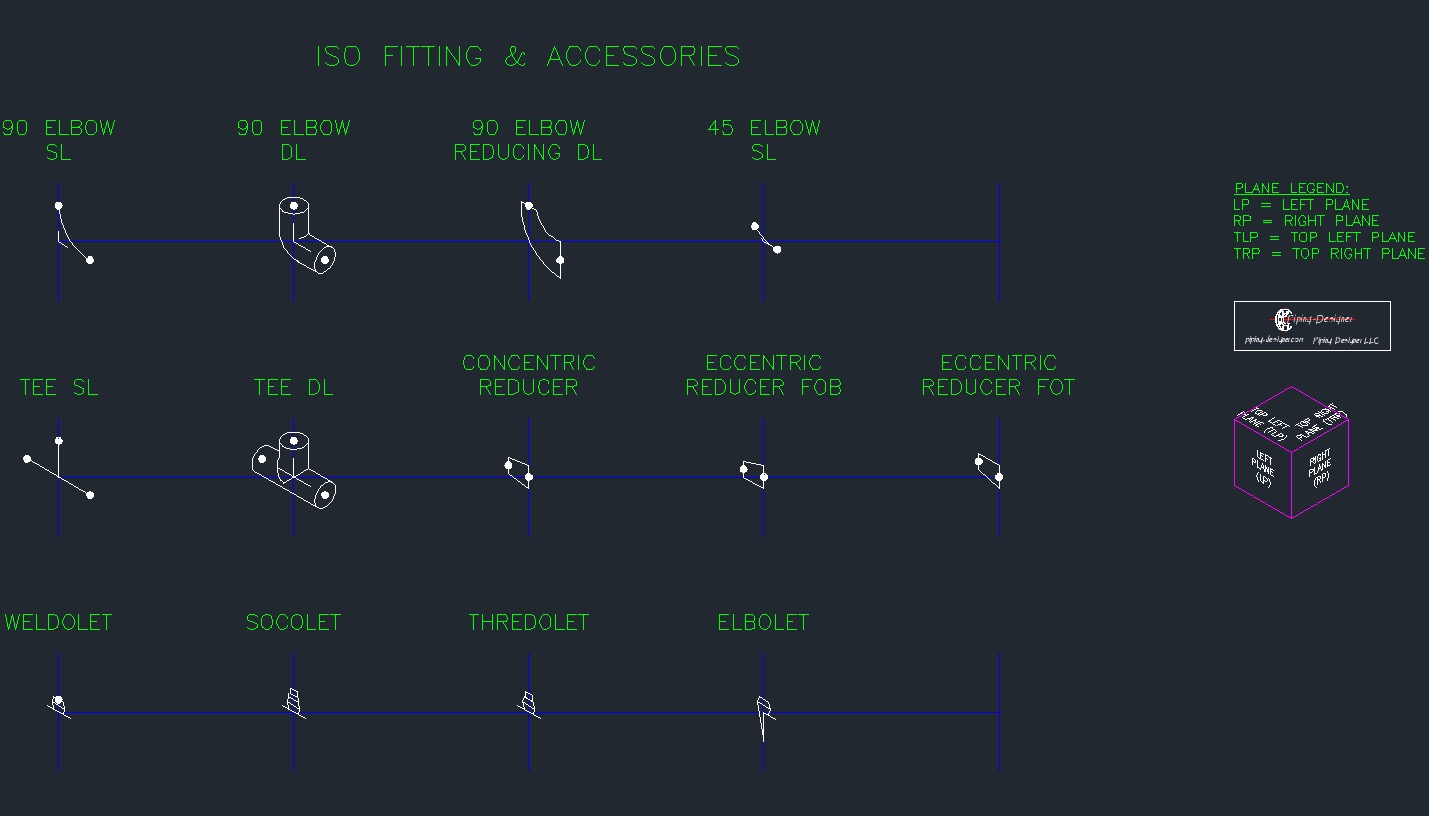

This Drawing Package contains different views of various weld fittings. Each fitting can be insert in one of three planes: top, right or left. This drawing package contains thirteen dynamic blocks. Each dynamic block contains multiple views of the following:
- 90 Degree Elbow - Single Line
- 90 Degree Elbow - Double Line
- 90 Degree Reducing Elbow - Double Line
- 45 Degree Elbow - Single Line
- Tee - Single Line
- Tee - Double Line
- Concentric Reducer
- Eccentric Reducer - Flat on Bottom (FOB)
- Eccentric Reducer - Flat on Top (FOT)
- Weldolet
- Threadolet
- Sockolet
- Elbolet
Dynamic VBlock Isometric Fitting Example45.2 KB
Isometric Pipe Fittings - Dynamic AutoCAD Blocks
All the blocks have been created on 'Layer 0' and can be either copied into your working drawing or can be copied into your pallettes. The drawing is saved as a .dwg file and includes the following blocks:
Drawing file will work in the following formats:
- AutoCAD 2013/ LT2013
- AutoCAD 2010/ LT2010
- AutoCAD 2004/ LT2004
