Flange Safety Spray Shield

on . Posted in Safety Engineering

Spray shields also known as flange guard, are used on equipment (flanges in this case) where fluids are under pressure and need to be prevented from leaking or spraying on other equipment or people.  These shields are not designed to contain the leak for ever but to primarily prevent spray exposure.

Flange safety spray shield, also alled flange guard or flange safety shield, is a protective device designed to prevent and contain leaks, sprays, and releases of hazardous fluids from flange connections in industrial settings.  Flange connections are commonly used to join pipes, valves, and other equipment, and they are crucial in various industries such as chemical, petrochemical, oil and gas, pharmaceuticals, and more.

The purpose of a flange safety spray shield is to enhance workplace safety by reducing the risk of personnel exposure to harmful substances, preventing damage to equipment and the environment, and minimizing the potential for fire or explosion caused by leaks of flammable or reactive materials.  These shields are typically constructed from durable materials that are resistant to the specific fluid being transported, such as acids, caustic substances, and corrosive chemicals.

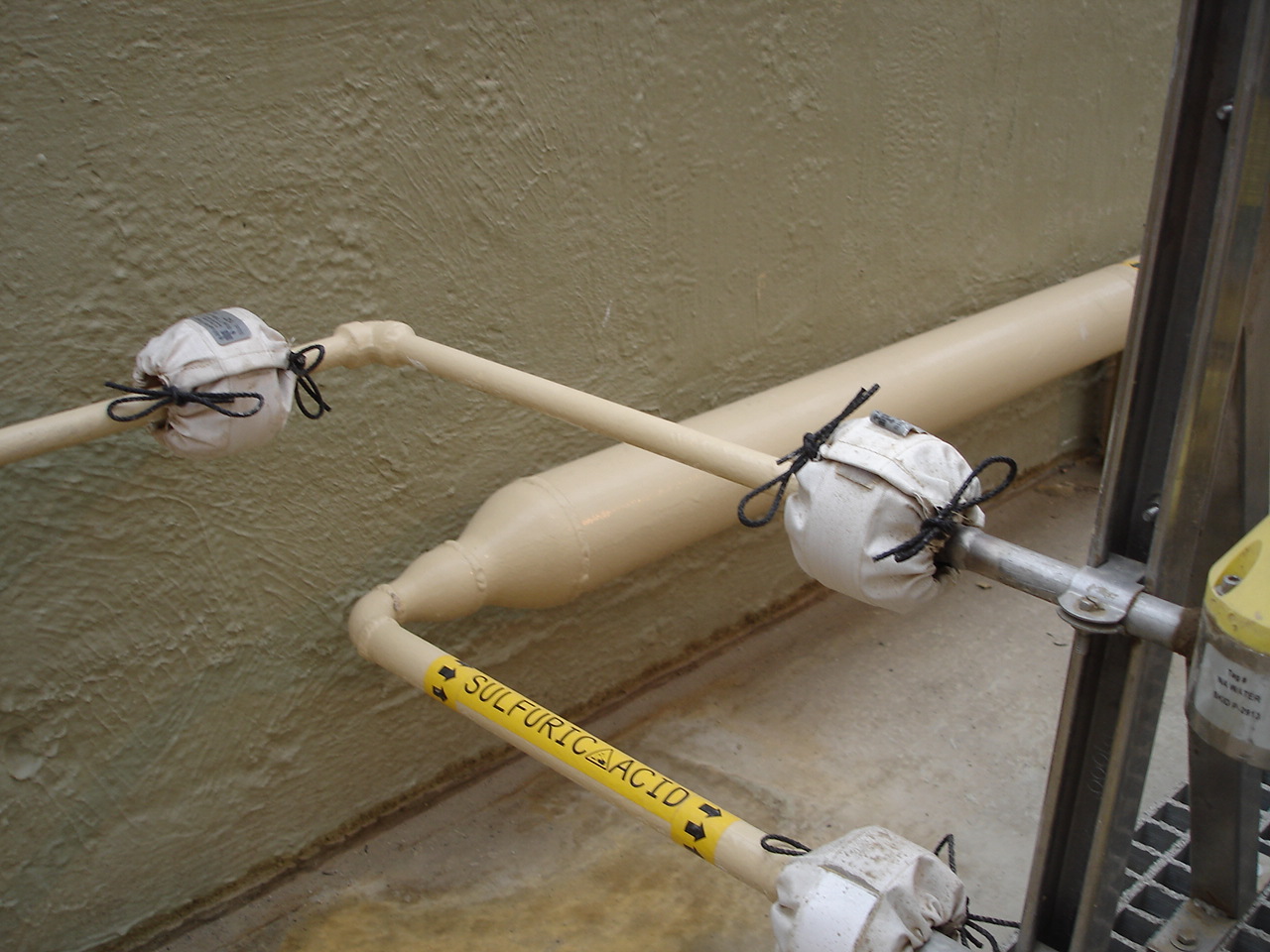

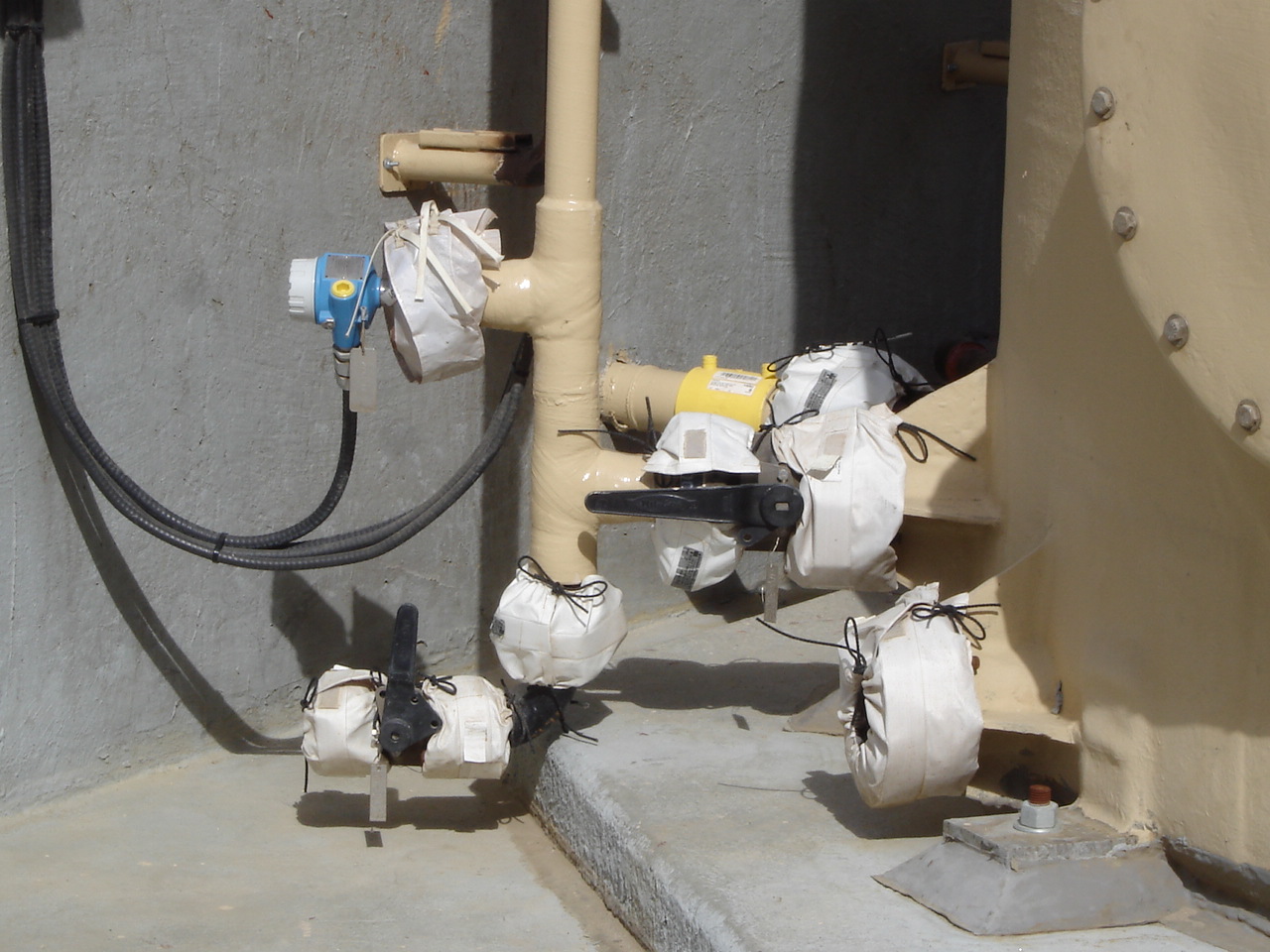

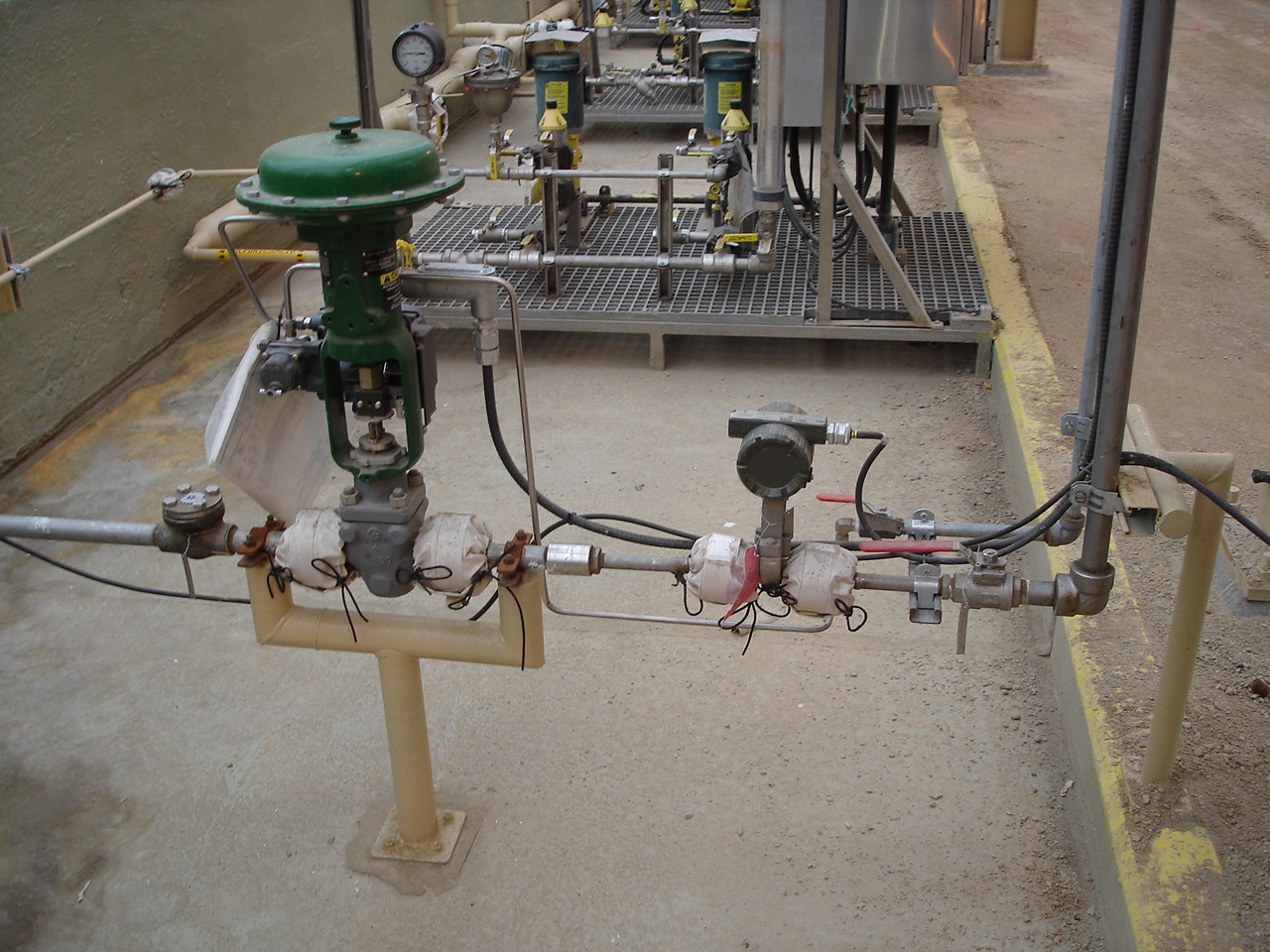

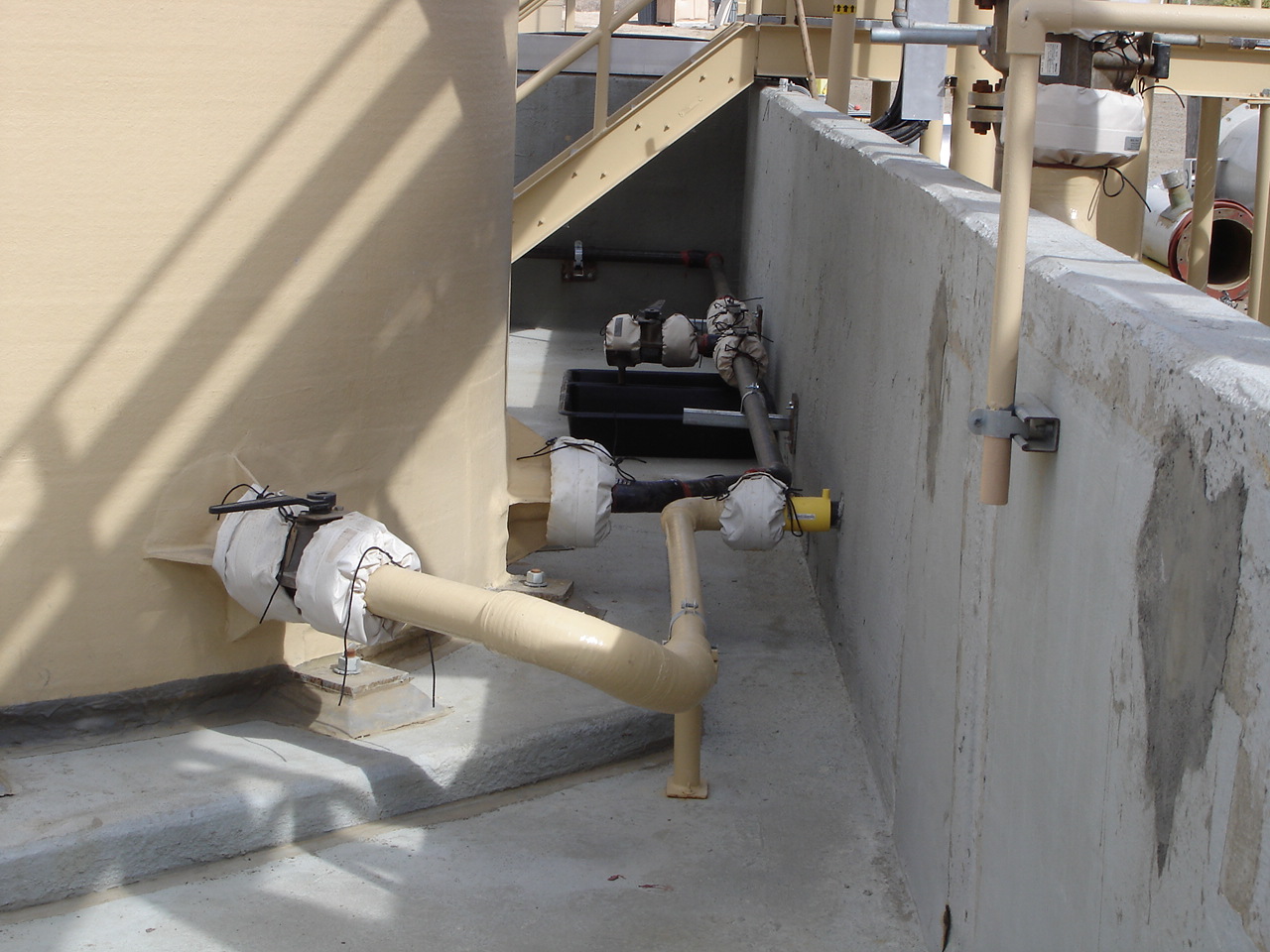

Flange safety spray shields are often easy to install and can be customized to fit various flange sizes and configurations.  They usually consist of a flexible covering that wraps around the flange connection and a fastening mechanism to secure the shield in place.  In the event of a leak or spray, the shield contains the fluid, allowing for controlled release and redirection to appropriate collection points, such as drainage systems or containment vessels.  These shields are just one component of an overall safety strategy within industrial facilities.  Regular inspection, maintenance, and adherence to safety protocols are also essential to ensure the effective functioning of these shields and to prevent accidents.
