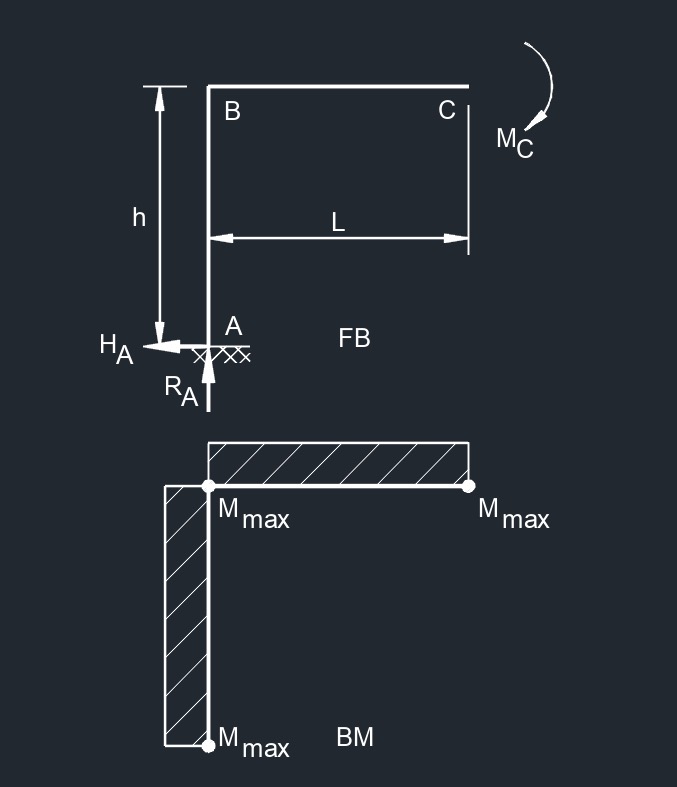

Two Member Frame - Fixed/Free Free End Bending Moment

2fff 3A

Article Links



















Two Member Frame - Fixed/Free Free End Bending Moment formulas

RA=0
HA=0
Mmax=MC
ΔCx=MCh22λI
ΔCy=MCL2λI(L+2h)
θC=MCλL(L+h)

Where:

 Units English Metric
Δ = deflection or deformation in mm
h = height of frame in mm
H = horizontal reaction load at bearing point lbf N
Ih = horizontal member second moment of area (moment of inertia) in4 mm4
Iv = vertical member second moment of area (moment of inertia) in4 mm4
M = maximum bending moment lbfin Nmm
λ   (Greek symbol lambda) = modulus of elasticity lbfin2 Pa
A,B,C = point of intrest on frame - -
L = span length under consideration in mm
R = vertical reaction load at bearing point lbf N



diagrams

  • Bending moment diagram (BMD)  -  Used to determine the bending moment at a given point of a structural element.  The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
  • Free body diagram (FBD)  -  Used to visualize the applied forces, moments, and resulting reactions on a structure in a given condition.
  • Shear force diagram (SFD)  -  Used to determine the shear force at a given point of a structural element.  The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
  • Uniformly distributed load (UDL)  -  A load that is distributed evenly across the entire length of the support area.
