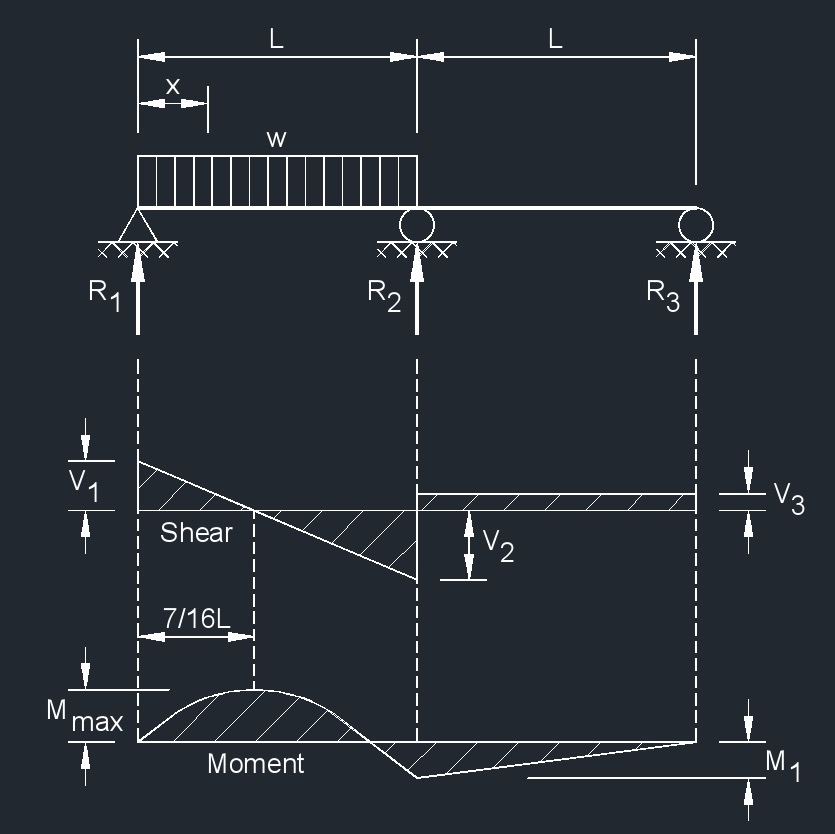

Two Span Continuous Beam - Equal Spans, Uniform Load on One Span formulas
\(\large{ R_1 = V_1   \;\;=\;\; \frac{7\;w\;L}{16}    }\)  \(\large{ R_2 = V_2 + V_3   \;\;=\;\; \frac{5\;w\;L}{8}    }\)  \(\large{ R_3 = V_3   \;\;=\;\; \frac{w\;L}{16}    }\)  \(\large{ V_2   \;\;=\;\; \frac{9\;w\;L}{16}    }\) \(\large{ M_{max} \; \left(at\; x = \frac{7\;L}{16} \right)    \;\;=\;\; \frac{49\;w\;L^2}{512}    }\) \(\large{ M_1 \; \left(at \;support\; R_2 \right)  \;\;=\;\; \frac{w\;L^2}{16}    }\) \(\large{ M_x \;  \left( x < L \right)  \;\;=\;\; \frac{w\;x}{16} \; \left( 7\;L - 8\;x \right)  }\) \(\large{ \Delta_{max} \; \left( 0.472 \; L \; from\;R_1 \right)  \;\;=\;\; 0.0092 \; \frac{w\;L^4}{ \lambda\; I}    }\)
Symbol	English	Metric
\(\large{ \Delta }\) = deflection or deformation	\(\large{in}\)	\(\large{mm}\)
\(\large{ x }\) = horizontal distance from reaction to point on beam	\(\large{in}\)	\(\large{mm}\)
\(\large{ w }\) = load per unit length	\(\large{\frac{lbf}{in}}\)	\(\large{\frac{N}{m}}\)
\(\large{ M }\) = maximum bending moment	\(\large{lbf-in}\)	\(\large{N-mm}\)
\(\large{ V }\) = maximum shear force	\(\large{lbf}\)	\(\large{N}\)
\(\large{ \lambda  }\)   (Greek symbol lambda) = modulus of elasticity	\(\large{\frac{lbf}{in^2}}\)	\(\large{Pa}\)
\(\large{ I }\) = second moment of area (moment of inertia)	\(\large{in^4}\)	\(\large{mm^4}\)
\(\large{ R }\) = reaction load at bearing point	\(\large{lbf}\)	\(\large{N}\)
\(\large{ L }\) = span length under consideration	\(\large{in}\)	\(\large{mm}\)



diagrams

• Bending moment diagram (BMD)  -  Used to determine the bending moment at a given point of a structural element.  The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
• Free body diagram (FBD)  -  Used to visualize the applied forces, moments, and resulting reactions on a structure in a given condition.
• Shear force diagram (SFD)  -  Used to determine the shear force at a given point of a structural element.  The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
• Uniformly distributed load (UDL)  -  A load that is distributed evenly across the entire length of the support area.
